Installation
900004-00, 03/2017
Innovative Hearth Products
DRT2000 and DRC2000 Direct-Vent Fireplaces
45
Catalog
Number
Model Description
F1797 SV4.5HTKCT
Rigid, Horizontal, Compact
Termination with Firestop/Spacer
(H2246), Adaptor (74L61) (see
750204M)
F1798 SV4.5HTKCT20
Rigid, Horizontal Compact
Termination, 20” with Shield and
Firestop (see 750247M
and 750204M)
* See Page 30 concerning use with the 45” model
H1968 SV4.5HT-2
Horizontal Square Termination
with Firestop/Spacer (H2246),
and Adaptor (74L61)
94L10 SV4.5HTSS
Rigid, Horizontal, Small Square
Termination with Firestop/Spacer
(H2246) and Adaptor (74L61)
(see 750204M)
H5817 SV4.5-20SSWSK
Rigid, Horizontal, Small Square
Termination, with 20” Slip
Section*, Wall Shield and
Firestop
(see 750247M and 750204M)
H2152 SV4.5CGV-1
Vertical Termination Cap, High
Wind
H8914 SV4.5TK90HT2
Horizontal Termination Kit HT-2
with 90° elbow
H8915 SV4.5TK90SS
Horizontal Termination Kit Small
Square with 90° elbow
Vent Sections (Rigid)
77L70 SV4.5L6 6” (152 mm)
77L71 SV4.5L12 12” (305 mm)
77L72 SV4.5L24 24” (610 mm)
77L73 SV4.5L36 36” (914 mm)
77L74 SV4.5L48 48” (1219 mm)
77L75 SV4.5LA
Telescopic Length Slip Section
(2” to 7-1/2” rigid)
Catalog
Number
Model Description
The following fl ashing comes packaged with a storm collar
77L78 SV4.5F Flat Roof Flashing
77L79 SV4.5FA 1/12 to 7/12 Adjustable Flashing
77L80 SV4.5FB
7/12 to 12/12 Adjustable
Flashing
77L81 SV4.5SC6 Storm Collar (6 pack)
H6183 SV4.5HF5 Firestop Spacer, 5”, rigid
H6184 SF4.5HF5 Firestop Spacer, 5”, fl ex
H2246 SV4.5HF-10
Firestop/Spacer-Horizontal, rigid
(3-1-1 spacing), 10 Pack
H2247 SV4.5VF-10
Firestop/Spacer-Vertical, rigid
(1-1-1 spacing), 10 Pack
F2567 SV4.5VFS
Firestop/Spacer-Vertical, rigid
(1-1-1 spacing), Each
96K92 SV4.5SP Support Plate
F3191 SV4.5AdaptorKit
Secure Flex Adaptor Kit
Includes rigid to fl ex adaptor and
fl ex to rigid adaptor
(fl ex not included)
Termination Guards
17M52 SV4.5HGS-1
Termination Guard, Square
(1 pack) (see 750109M)
17M53 SV4.5HGS-12
Termination Guard, Horizontal
Square (12 pack) (see
750109M)
87L02 SV4.5HGS
Termination Guard for Horizontal
Square Termination (Deluxe)(1
pack) (see 750055M)
H5820 SV4.5HTSK
Termination Shroud (Guard) for
Horizontal Square Termination (1
pack) (see 750246M)

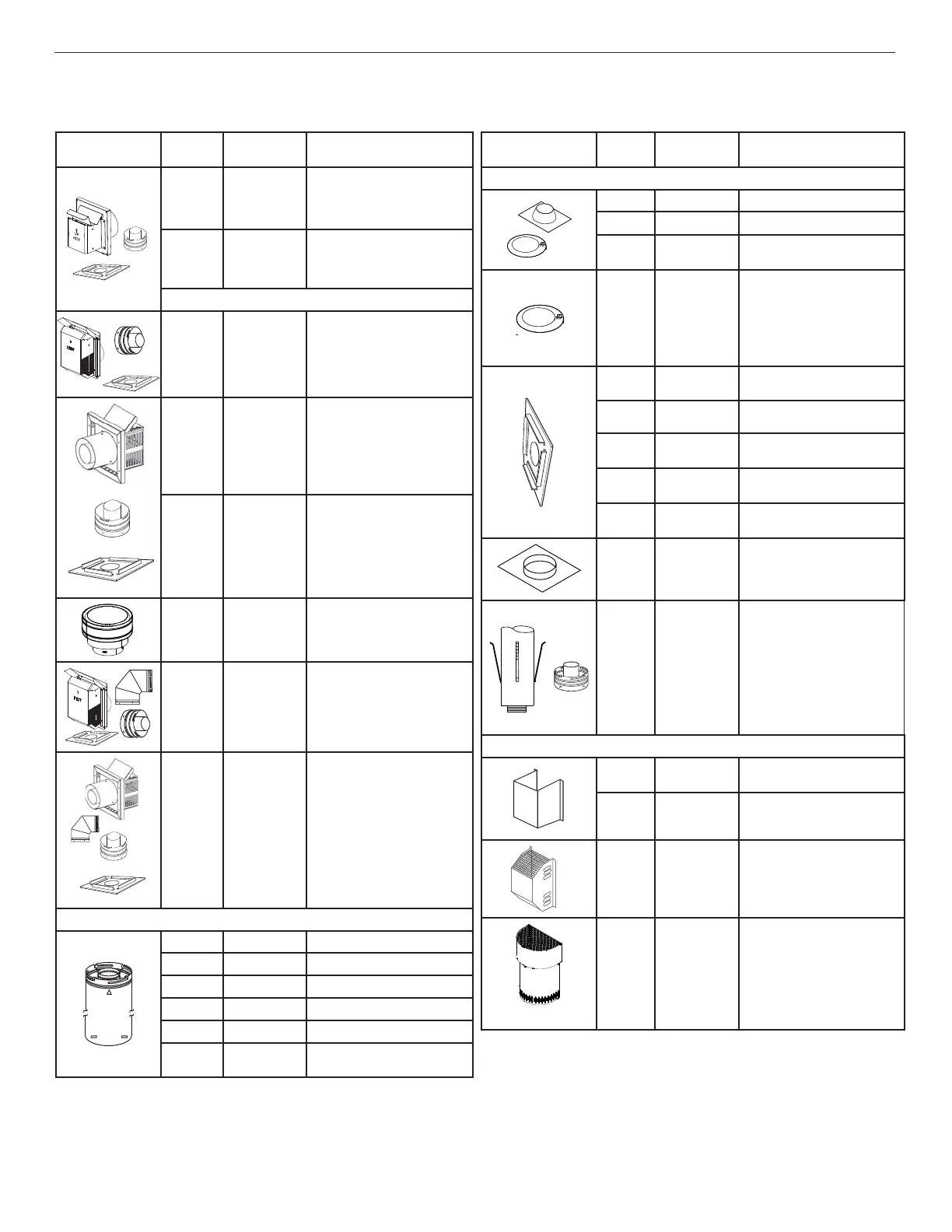

Table 31 - Listed Secure Vent
®
Components
INSTALLATION ACCESSORIES
* The 20” slip section can be fi eld cut to desired size (new length must allow a
minimum of 1-3/4” overlap within pipe). Deburr cut edges as necessary.
