Installation
900004-00, 03/2017
Innovative Hearth Products
DRT2000 and DRC2000 Direct-Vent Fireplaces
46

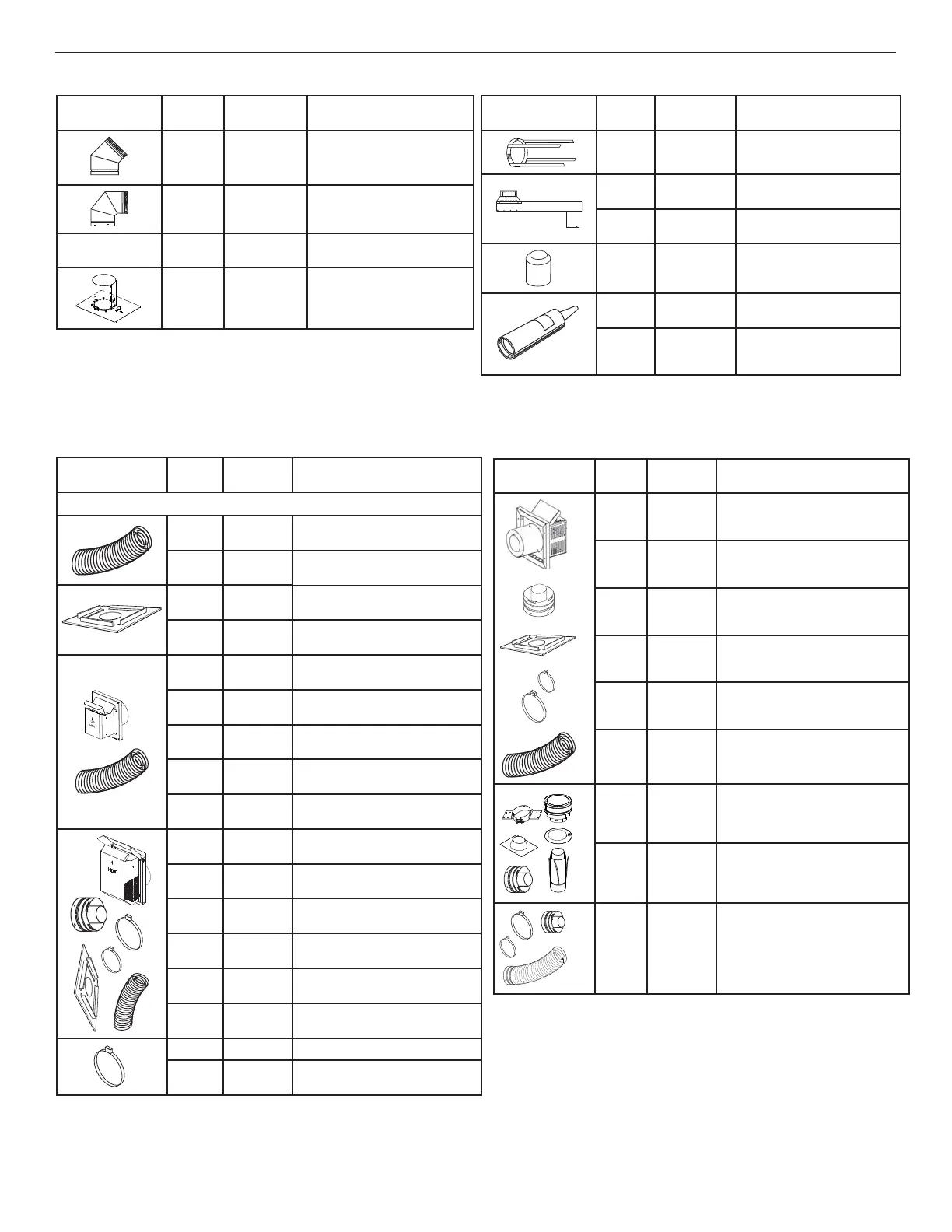

Table 32 - Listed Secure Vent
®
Components
Catalog
Number
Model Description
77L76 SV4.5E45 45° Elbow
77L77 SV4.5E90 90° Elbow
Catalog
Number
Model Description
H5816
750,247M
SV4.5-
TWSK10
Through Wall Shield Kit (to shield
direct-vent pipe from blown
insulation)(see 750247M)
Catalog
Number
Model Description
96K93 SV4.5SU Support Strap
99L02 SV4.5HRK14
Horizontal Riser Kit, 14”(see
750146M)
99L03 SV4.5HRK36
Horizontal Riser Kit, 36” (see
750146M)
H3907 SV4.5ARSA
Attic Insulation Shield with
adjustable height, 12–22”
S
e
a
l
a
n
t
10K81 SFMP
Mill-Pac, Black, High-
Temperature Sealant
89L40 SFMP-12
Mill-Pac, Black, High-
Temperature Sealant (bulk
12-pack)
Table 33 - Listed Secure Flex
®
Components
Catalog
Number
Model Description
These termination kits include fi restop/spacer, gear clamps, and fl ex adaptor.
60L10 SF-18
18 ft (5.49 m)* compressed fl ex (see
750053M)
98K03 SF-12
12 ft (3.66 m)*compressed fl ex (see
750052M)
H2248 SF4.5HF-10
Firestop/Spacer, Horizontal, fl ex (3-1-1
spacing), 10 Pack
H2249 SF4.5VF-10
Firestop/Spacer, Vertical, fl ex (1-1-1
spacing),10 Pack
F1803 SF4.5HTKCT
Horizontal Compact Termination for
fl ex (without fl ex)**
F1799 SFKIT18CT
Compact Termination for fl ex with 18”
(457 mm)** compressed fl ex
F1800 SFKIT24CT
Compact Termination for fl ex with 24”
(610 mm)** compressed fl ex
F1801 SFKIT36CT
Compact Termination for fl ex with 36”
(914 mm)** compressed fl ex
F1802 SFKIT48CT
Compact Termination for fl ex with 48”
(1219 mm)** compressed fl ex
H1969 SF4.5HT-2
Horizontal Square Termination for fl ex
(without fl ex)
77L87 SFKIT12S
Square Term. for fl ex with 12” (305
mm)* compressed fl ex
77L88 SFKIT18S
Square Term. for fl ex with 18” (457
mm)* compressed fl ex
77L89 SFKIT24S
Square Term. for fl ex with 24” (610
mm)* compressed fl ex
77L90 SFKIT36S
Square Term. for fl ex with 36” (914
mm)* compressed fl ex
77L91 SFKIT48S
Square Term. for fl ex with 48” (1219
mm)* compressed fl ex
91L66 SFGC4-6 Gear Clamp 4.5” (114 mm) for flex (6-pack)
91L67 SFGC7-6 Gear Clamp 7.5” (190.5 mm) for flex (6 pack)
Catalog
Number
Model Description
94L04 SFKIT12SS
Small Square Termination for fl ex, with
12” (305 mm) of *compressed fl ex vent
(see 750204M)
94L05 SFKIT18SS
Small Square Termination for fl ex, with
18” (457 mm) of *compressed fl ex vent
(see 750204M)
94L06 SFKIT24SS
Small Square Termination for fl ex, with
24” (610 mm) of *compressed fl ex vent
(see 750204M)
94L07 SFKIT36SS
Small Square Termination for fl ex, with
36” (914 mm) of *compressed fl ex vent
(see 750204M)
94L08 SFKIT48SS
Small Square Termination for flex, with 48”
(1219 mm) of *compressed flex vent (see
750204M)
94L09 SF-HTSS
Horizontal Small Square Termination
for fl ex, without fl ex vent (see
750204M)
56L74 SFVT30
Vertical Termination for flex (flat to 6/12) with
flex adaptor, section of rigid vent, roof support
collar assembly, roof flashing and storm collar.
(see 750052M)
56L75 SFVT45
Vertical Termination for flex (6/12 to 12/12)
with flex adaptor, section of rigid vent, roof
support collar assembly, roof flashing and
storm collar. (see 750052M)
H7748 H7748
36” Flex Connector Kit.
36” of fl ex with two adaptors for
mating two rigid sections of vent
together.
*All compressed fl ex vents can be expanded up to two times.
** See Page 30 concerning use with the 45” model.
