Operation
900285-00 05/2015
Innovative Hearth Products
Superior
TM
DRT/C3000 Series Direct-Vent Gas Fireplaces
60
NOTE: Fireplace shown with optional brick panels and volcanic stone installed.

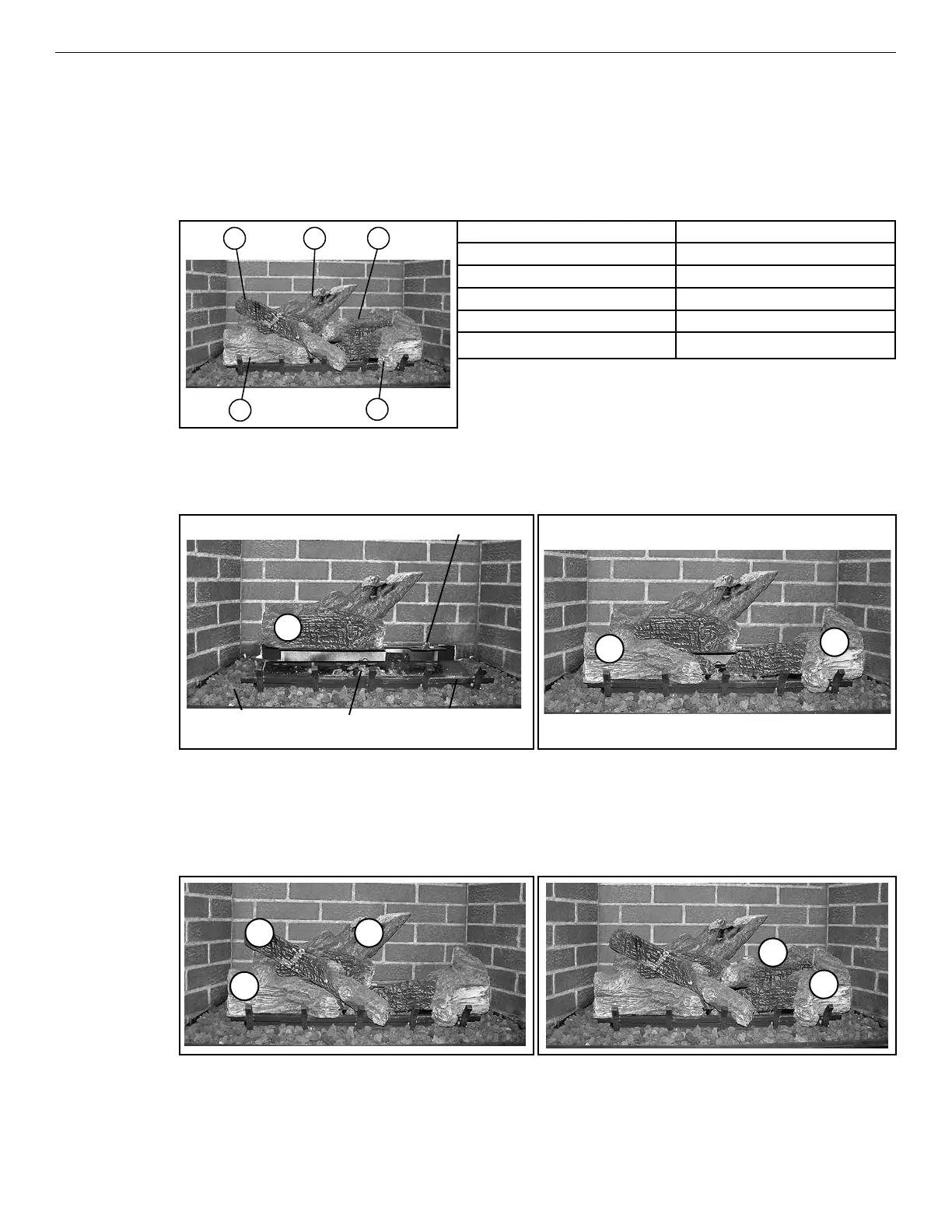

Installing the 40” and 45” logs
The logs have notches/tabs to assist proper positioning. Upper logs rest on lower logs via notches/tabs.
Proper log placement is critical to prevent sooting. Place the logs in the gaps between flame peaks, so they
do not impinge the flames. Follow the log placement instructions precisely.
NOTE: Do not cover the burner ports.
Table 39: 40” Log Set
4
5
3
2
1
Log Number Description
1 Rear Log
2 Left Front Log
3 Right Front Log
4 Left Cross Log
5 Right Cross Log
Catalog number for the entire set:
40”: F1830
45”: F1884
1. If necessary, remove the glass door (Page 61).
2. Locate the log placement brackets (Figure 54).
Figure 54: Placing log 1 Figure 55: Placing logs 2 and 3
Glowing Embers
(Do not place glowing embers over burner slots)
Right Rear Log Bracket
1
Volcanic Stone
Log Rack
3
2
3. Position rear log (1) on the left rear log bracket (Figure 54)
4. Position the left front log (2) and the right front log (3) against the log rack (Figure 55).
5. Position the left cross log (4) over the rear log (1) and left front log (2) with the front resting on the log rack
(Figure 56).
Figure 56: Placing log 4 Figure 57: Placing log 5
4
2
1
3
5
6. Position the right cross log (5) on the right rear log bracket and over right front log (3) (Figure 57).
To Next Page
