5.2 Stoves MADDALENA, MILENA, SARA, SIMONA
1) Unpack the monoblock and place it in the desired position near the entrance to the smoke stack, bearing in
mind the technical rules (smoke stack, pipes, chimney pot, air intake, etc.) listed in this booklet.
2) Level the monoblock and check that everything is in order inside the stove, making sure that all internal panels
are in the correct position and that there is nothing else inside the stove.
3) Remove the top cast iron plate, undoing the fixing screws.

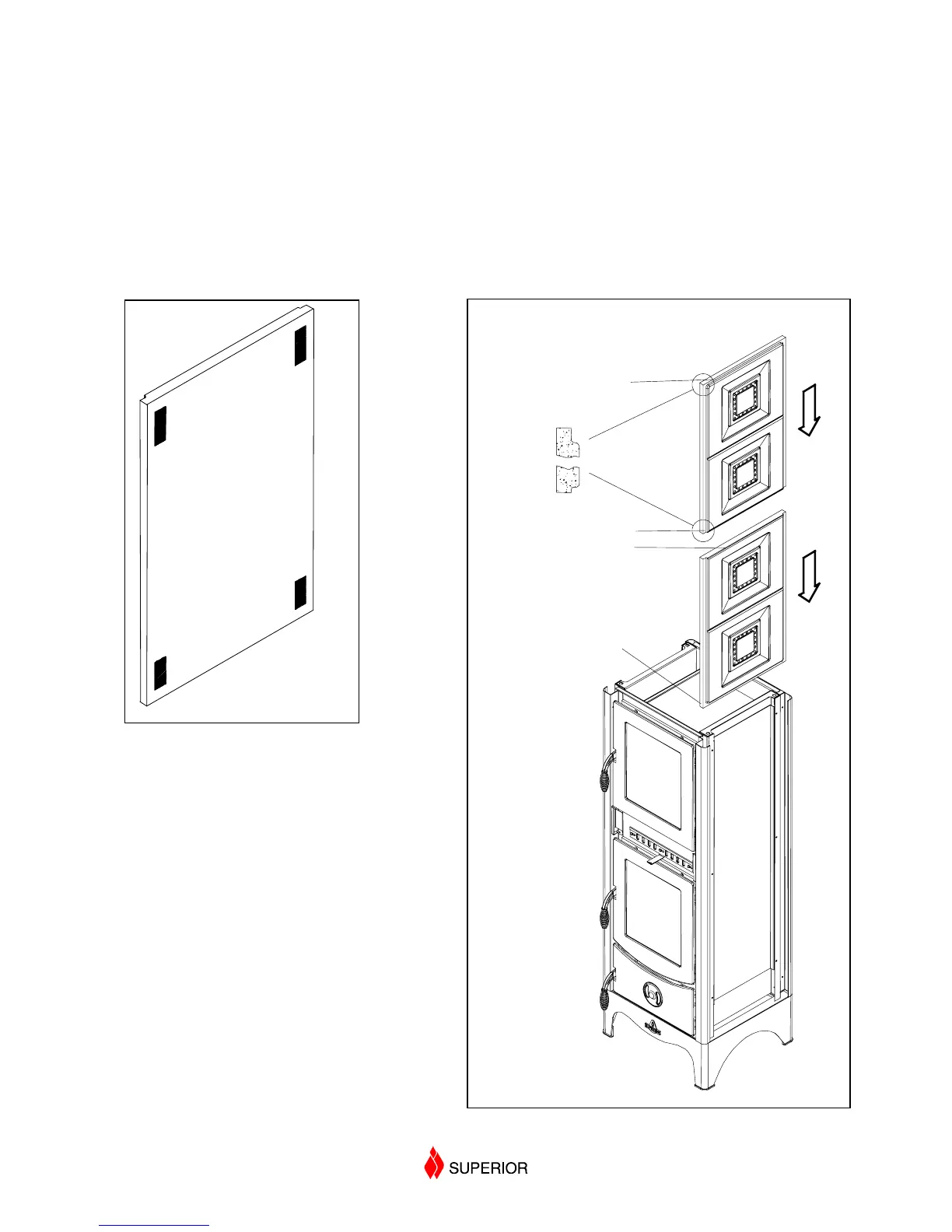

4) Slide the ceramic side panels into their slots as shown in the diagram, paying attention to the direction.
Compensate for any slack with the fibreglass tape provided.
TOP PROFILE
BOTTOM PROFILE
TOP PROFILE
Fibreglass tape
on the ceramic
side panels as
required
