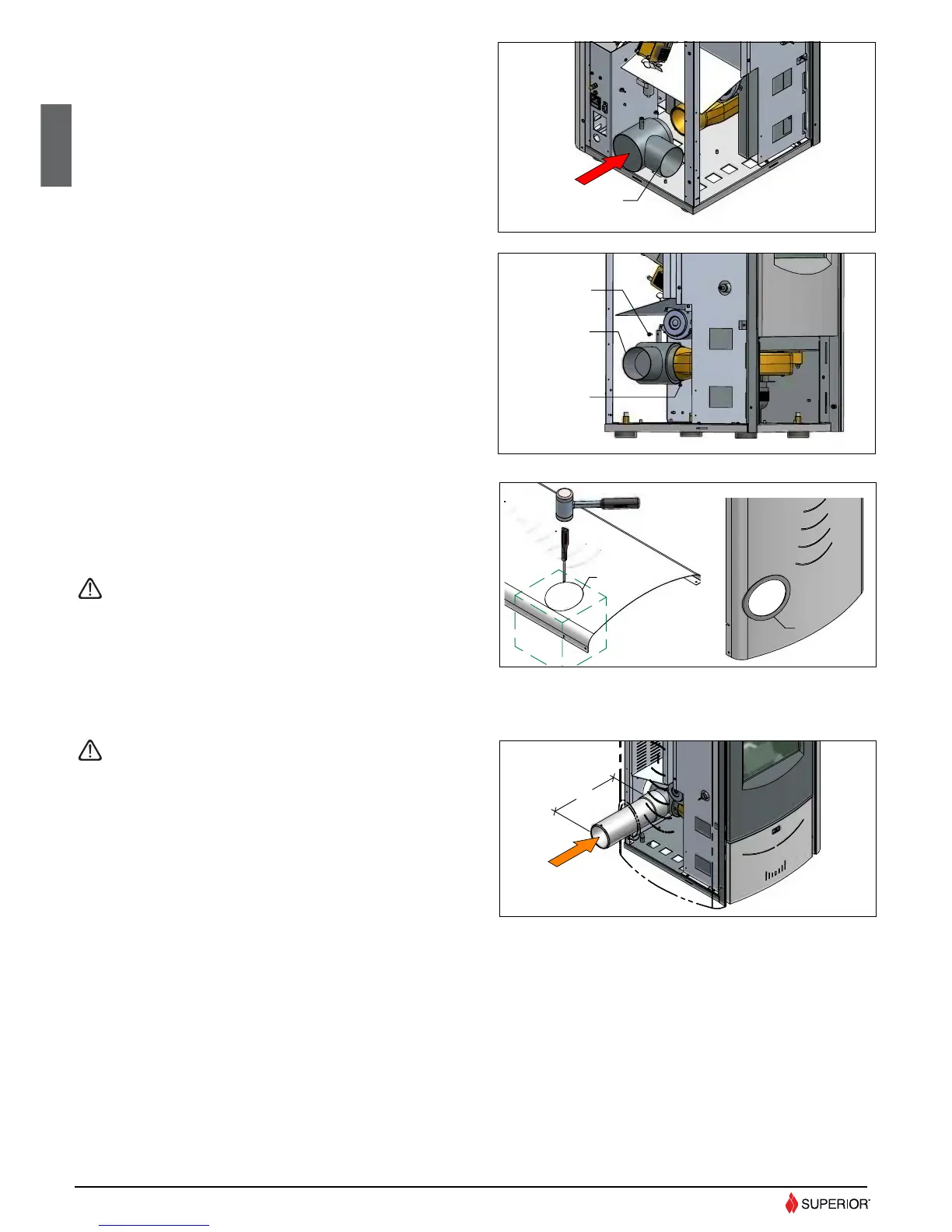

- Replace the removed pipe [D] with the side fl ue gas outlet connection [E] to
be found in the kit, inserting it fully into its seat and taking care to seal it with
a gasket and a silicone-based (not cement-based) sealant. (Fig. 39)
- Secure the fl ue gas outlet connection [E] with the previously removed screw [C].
- Refi t the smoke sensor, ensuring that it is fully inserted and securing it with the
screw [B], which must not be overtightened. (Fig. 40)
- Refi t the rear panel [A].
- Take the previously removed left side panel and use a screwdriver to remove
the knockout [F] to be found in the lower part, taking care not to scratch or
buckle the panel.
Apply the edge gasket [G] provided in the kit around the edge of the hole
made in the panel. Cut off any excess gasket. (Fig. 41)
- Refi t the left side panel, proceeding with the steps described for removal in
the reverse order.
- Connect to the fl ueway in accordance with the instructions given in the
section “GENERAL RULES”.
- Finish installing the cladding.
DT2032326-0
E
Fig. 39
DT2032327-0
E
B
C
Fig. 40
DT2032440-0
H
Fig. 42
It is advisable to secure the gasket with a few drops of high heat-
resistant silicone.
When installing with side fl ue gas outlet, the MINIMUM distance
of the fl ue gas outlet pipe from the stove is given in the paragraph
“DIMENSIONS”.
This measurement is obtained by inserting a pipe with diameter
80 mm and length 158 mm (measurement H - Fig. 42) between
the side fl ue gas outlet connection and the union tee.
