H07023380 / DT2000477-03
English

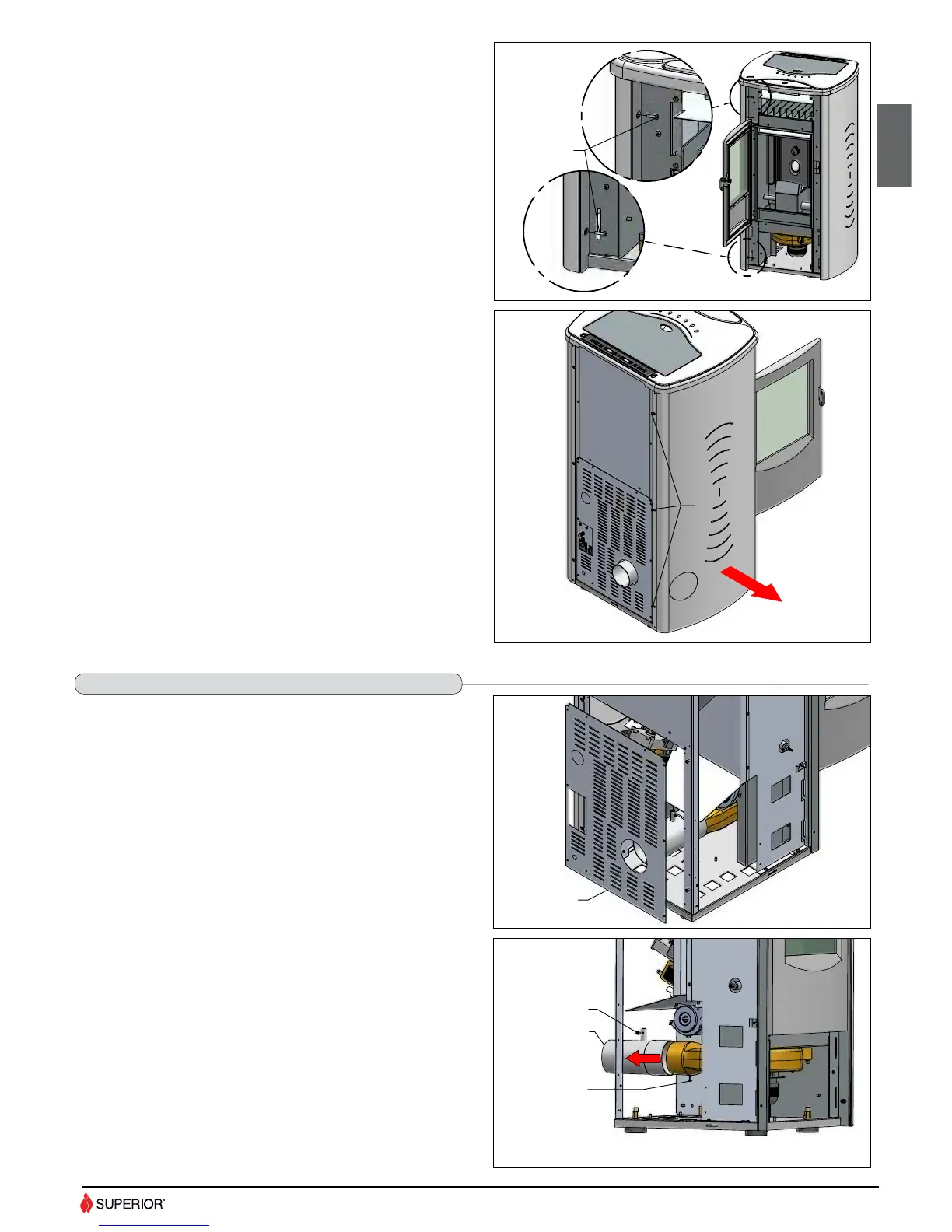

The product is supplied with the fl ue gas outlet at the rear.
By purchasing the relative kit it is, however, possible to have an outlet on the
left side of the stove. Proceed as follows to install the kit:
- remove the left side panel (see the paragraph REMOVING THE CLADDING).
- Remove the rear stove panel [A]. (Fig. 37)
- Remove the smoke sensor after having removed the relative fastening
screw [B].
- Remove the screw securing the fl ue outlet pipe [C], to be found in the lower
part of the actual pipe.
- Draw the rear fl ue gas outlet pipe [D] out of the stove (once removed the
pipe may be disposed of). (Fig. 38)
4.4 SIDE FLUE GAS OUTLET (OPTIONAL)
DT2011599-00
DT2032323-0
A
Fig. 37
DT2032323-00
DT2032324-0
D
B
C
Fig. 38
- Remove the side panel after unscrewing the 2 front screws [E] (Fig. 35) and
loosen the rear screws [F] that secure it. (Fig. 36)
- Follow the same procedure for the other side.
- Refi t the cladding by repeating the above steps in the reverse order.
DT2032309-0
E
Fig. 35
DT2032310-0
F
Fig. 36
17
