H07023380 / DT2000477-03
English
Fig. 53
Once a year clean the smoke chamber as follows:
- Remove the screws which secure the smoke chamber cover, then lift it
slightly and take it out by pulling it towards you. (Fig. 53-54)
- Use a vacuum cleaner to remove any ash and carbon deposits which can
accumulate in the chamber, taking care not to damage the blades of the
fan. (Fig. 55)
- Check that the hole on the right side inside the the smoke chamber is
always clean without dust and ash. Otherwise clean it.
After performing a thorough cleaning reassemble the closing piece check the
good condition of the gasket and eventually replace it.
Fig. 56
DT2031151-00
Remove the plug from the Tee and clean the pipes.
Until you have got reasonably used to the operating conditions of the stove,
we recommend that this maintenance be carried out on a monthly basis.
If necessary, particularly on the fi rst few occasions, we recommend calling in
a qualifi ed technician.
DT2011674-00
7.5 CLEANING THE FLUE SYSTEM
DT2010092-03
7.6 CLEANING THE CERAMIC CLADDING
DT2010059-03
The ceramic cladding must fi rst be cleaned with a soft dry cloth before using any detergent (even mild detergent).
Products are available on the market which are suitable for cleaning ceramics as well as concentrated products for cleaning porcelain. These will remove
oil, ink, coffee and wine stains, etc.
DT2032288-0
LINGUETTE
INCASTRO
INFERIORE
DEFLETTORE
INTERNO
ECCENTRICO
Fig. 52

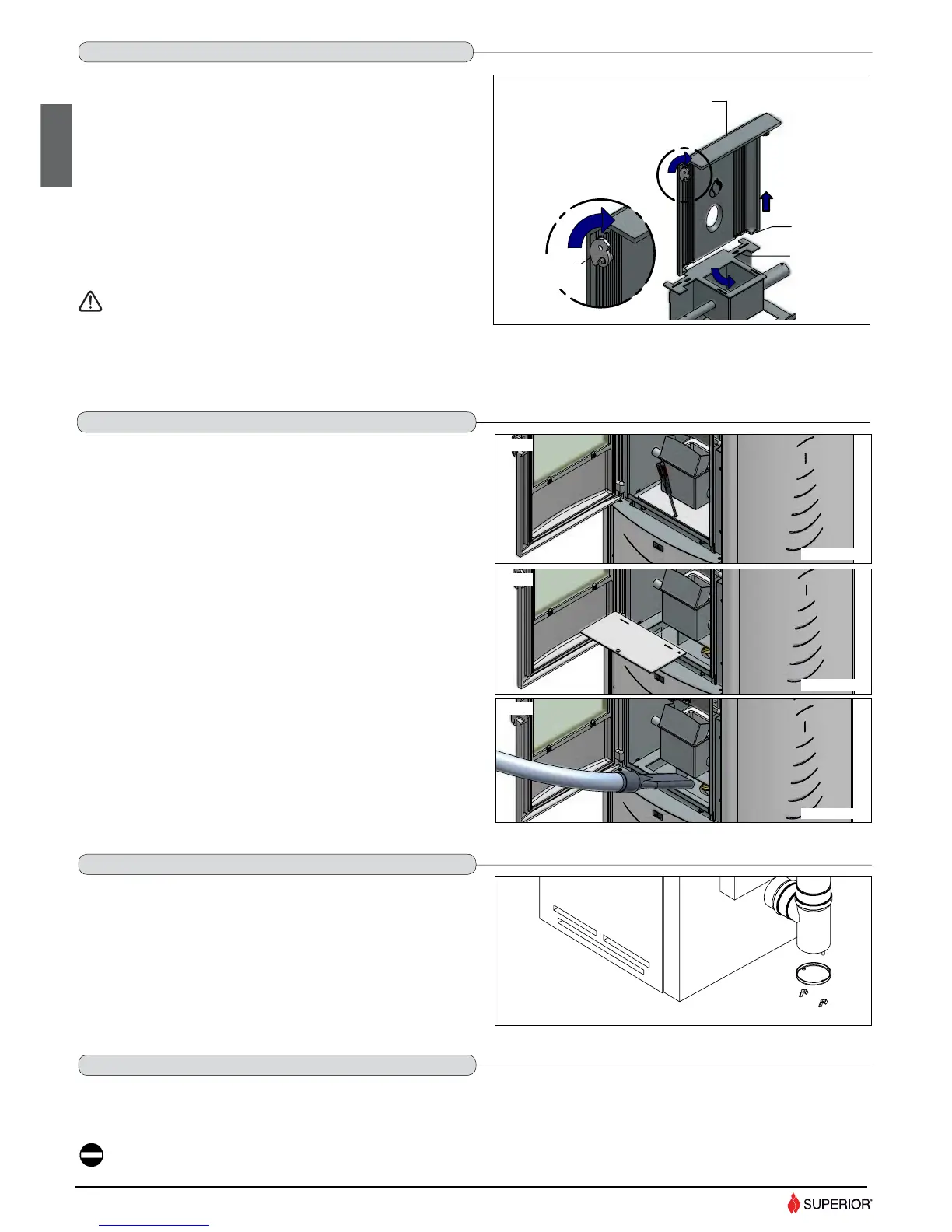

Once a week clean the fi rebox as follows.
- Remove the grate baffl e and draw out the grate.
- Turn the eccentric clamps to free the internal baffl e.
- Lift the baffl e slightly, gripping it by the two outer tabs to free it at the bottom
and then turn it, bringing the bottom outwards, and remove.
- Using a vacuum cleaner remove the ash from the fi rebox.
- After having thoroughly cleaned the fi rebox, remount the internal baffl e
proceeding in the reverse order to above.
- Ensure that the tabs are properly inserted into the relative notches in the sides
of the fi rebox and secure the baffl e by turning the two eccentric clamps.
- Replace the grate, pushing it to the left .
- Replace the grate baffl e.
This type of cleaning requires a vacuum cleaner suitable for
holding ash.
Never soak the ceramic cladding or clean it with cold water when it is still hot as the thermal shock could cause it to crack.
7.3 CLEANING THE FIREBOX
DT2010428-03
Fig. 54
DT2032289-00
DT2032290-00
DT2032291-00
Fig. 55
TABS
BOTTOM
RESTRAINT
INTERNAL
BAFFLE
ECCENTRIC
CLAMP
7.4 CLEANING THE SMOKE CHAMBER
36
