126631-01B
12
30E-8DM
EFFECTIVE HEIGHT
OF TERMINATION CAP
EFFECTIVE HEIGHT
OF TERMINATION CAP
EFFECTIVE HEIGHT
OF TERMINATION CAP
EFFECTIVE HEIGHT
OF TERMINATION CAP
MINIMUM
HEIGHT
14.5 FT.
MINIMUM
UP TO
6FT. MAX.
UP TO
6FT. MAX.
HEIGHT
14.5 FT.
MIN. HEIGHT
OF 22 FT. (WITH
2 ELBOW SETS)
MAX. HEIGHT OF
50 FT.
MAX. HEIGHT
50 FT.
(ANY SYSTEM)
30E-8DM
VENTING INSTALLATION Continued
CHASE INSTALLATIONS
Instructionsforchaseinstallationsareincludedwithchasestyleter-
minationchosen.Inamultiplechaseinstallation,besuretoprovide
adequate distance between terminations to prevent smoke spillage
from one termination to another. We suggest that terminations be
separated at least 24", center to center and stacked at a vertical height
differenceof18"(seeFigure18).
Note:Ifadecorativeshroudistobeinstalled,contactmanufacturer
for specifications.
24" Min.
24" Min.
18"
Min.
Typ.

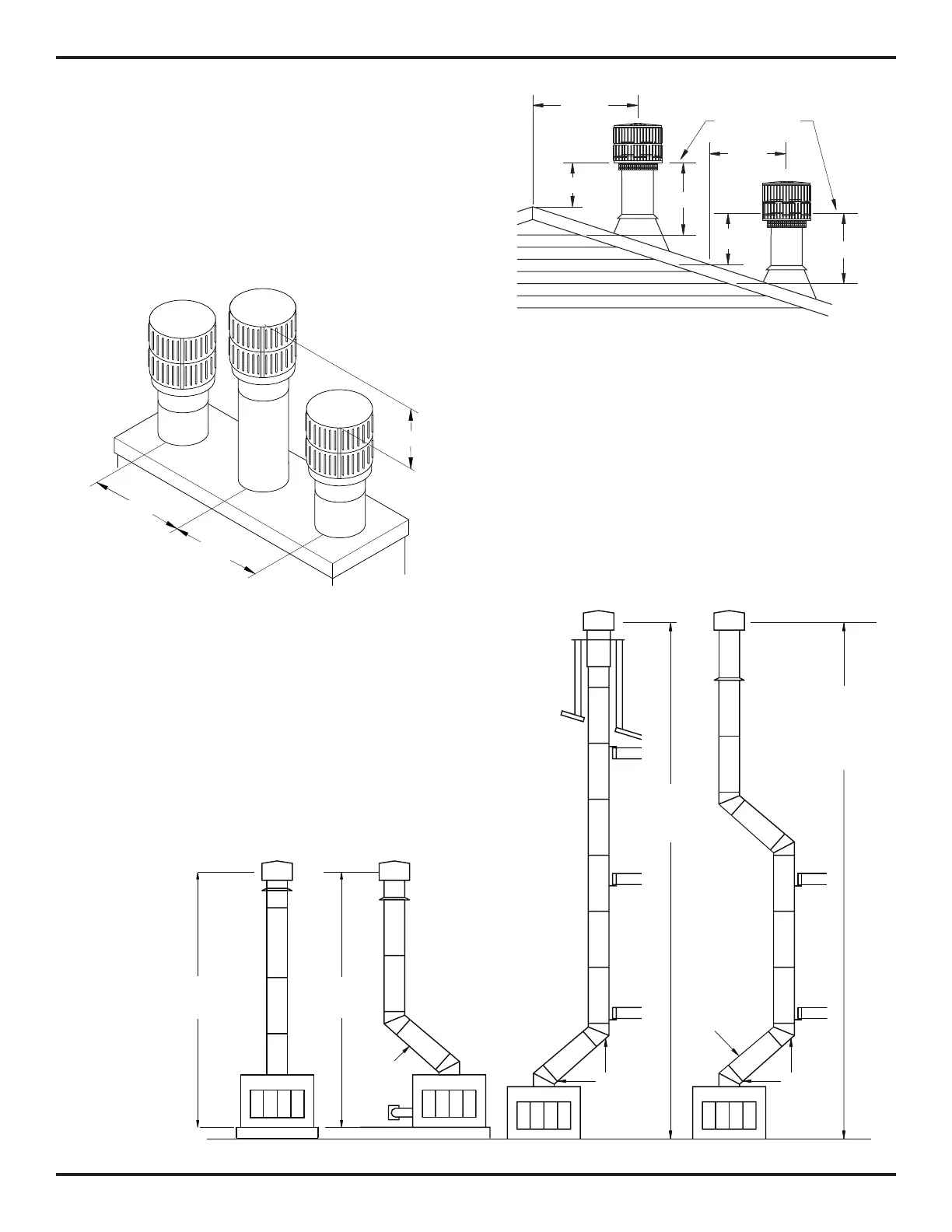

Figure 18 - Multiple Chase Installation
10'
2' Min.
10'
3' Min.
2' Min.
3' Min.
Level of
Flue Gas
Outlet
Figure 19 - 10 Foot Rule
10 FOOT RULE
Alluegasoutletchimneyterminationsmustextendaminimumof
3 feet in height above highest point where it passes through roof and
must be at least 2 feet above highest point of the roof that is within
ahorizontaldistanceof10feet(seeFigure19).
FINISHING FIREPLACE
Combustible materials, such as wallboard, gypsum board, sheet
rock, drywall, plywood, etc., may make direct contact with sides and
toparoundreplaceface.Itisimportantthatcombustiblematerials
do not overlap face itself. Brick, glass, tile or other noncombustible
materials may overlap front face provided they do not obstruct es-
sential openings such as louvered slots. When overlapping with a
noncombustible facing material, use only noncombustible mortar
or adhesive.
Figure 20 - Typical Residential Installations
