Superior WRT2042WS - Optional Gas Line Installation

Superiorfireplaces.US.com
126631-01B
13
Agas line or gaslog lighter may beinstalled for the purpose of
installing a vented or vent-free decorative gas appliance incorporat-
ing an automatic shutoff device and complying with the Standard
forDecorativeGasAppliancesforInstallationinVentedFireplaces,
ANSIZ21.60orAmericanGasAssociationdraftrequirementsfor
GasFiredLogLightersforWoodBurningFireplaces,DraftNO.4
datedAugust,1993.
If you wish to install an unvented (vent-free) gas log set, only
unvented gas log sets which have been found to comply with the
standardforunventedroomheaters,ANSIZ21.11.2aretobeinstalled
in this fireplace.
Gasline hook up should bedone by your supplieror a qualied
service person.
Note: Before you proceed, make sure your gas supply is turned off.
Use only a 1/2" black iron pipe and appropriate fittings.
1. Remove knockout indentation on refractory or firebrick wall
locatedaboverefractoryhearthoor.Knockoutindentationmust
be firmly tapped with any solid object, such as a 1/2" dowel, until
itis released. Remove fragmented portions of refractory (see
Figure21).
2. Remove gas line cover plate located on either side of fireplace and
pull out insulation from gas line conduit sleeve. Save insulation
for reuse.
3. Run a 1/2" black iron gas line into fireplace through rear at
gaslineconduitsleeve(ifusingaraisedplatform,addheight).
Provide sufficient gas line into fireplace chamber for fitting
connection(seeFigure22).
Note: Secure incoming gas line to wood framing to provide rigidity
for threaded end.
4. Repack insulation around gas line and into sleeve opening. Seal
any gaps between gas line and refractory knockout hole with
refractory cement or commercialfurnace cement. Install gas
appliance or cap off gas line if desired.
CAUTION: All gas piping and connections must be
tested for leaks after installation is completed. After
ensuring that gas valve is on, apply soap and water
solution to all connections and joints. Bubbles forming
show a leak. Correct all leaks at once. DO NOT USE
AN OPEN FLAME FOR LEAK TESTING AND DO NOT
OPERATE ANY APPLIANCE IF A LEAK IS DETECTED.
LEAK TESTING SHOULD BE DONE BY A QUALIFIED
SERVICE PERSON.
Note: AnIHPhoodmustbeinstalledwhenusinganunventedgas
logset(seeAccessoriesonpage18).
WARNING: Do not operate an unvented gas log
set in this fireplace with chimney removed.

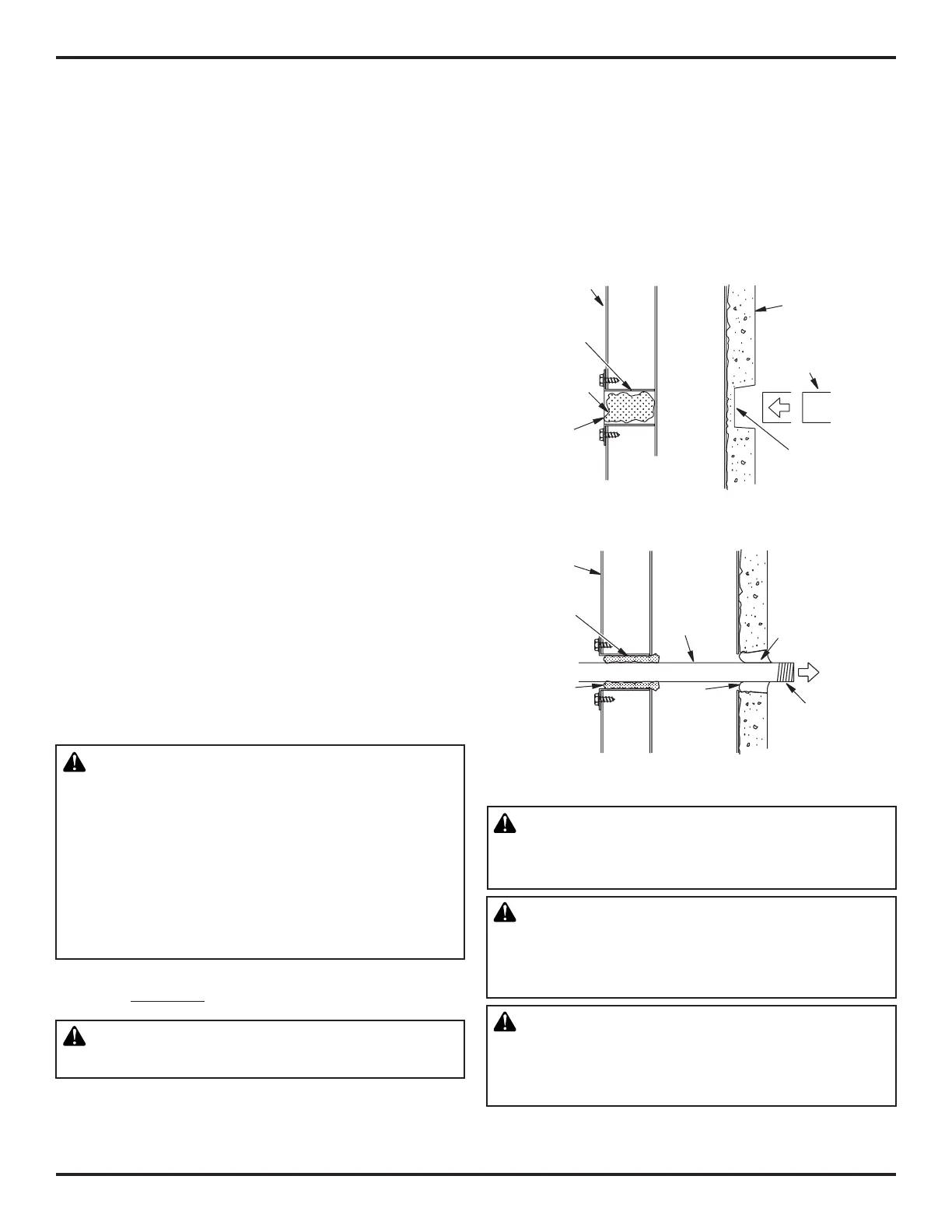

Figure 22 - Gas Line Installation
OPTIONAL GAS LINE INSTALLATION
Figure 21 - Gas Line Knockout
Side
Firebrick
Finished
Side
Refractory
Knockout
Plug
Outside of Fireplace
Gas Line
Conduit
Insulation
Gas
Conduit
Cover
1/2" Dowel
Seal
Opening
with
Refractory
Cement
Outside of
Fireplace
Gas
Line
Conduit
Repack
Insulation
Incoming
1/2" Black
Iron Pipe
Side
Firebrick
Finished
Side
Provide Enough
Threaded End for
Fitting Connection
Ifyouinstalladecorativegasappliance(ventedgaslog),decorative
gasappliancemustcomplywiththeStandardforDecorativeGas
Appliance for Installation in Solid Fuel Burning Fireplaces, ANSI
Z21.60/CSA2.26orZ21.84andshallalsobeinstalledinaccordance
withANSIZ223.1/NFPA54NationalFuelGasCodes(USA)andCAN/
CGA-B149.1NationalGasAndPropaneInstallationCode(Canada).
WARNING: To avoid the risk of damaging fireplace
materials and increasing the risk of spreading a fire,
do not use fireplace to cook or warm food.
WARNING: If the fireplace has been used for wood
burning, firebox and chimney must be cleaned of soot,
creosote and ashes be a qualified chimney cleaner.
Creosote will ignite if heavily heated.
WARNING: When using a decorative vented gas
log, damper must be removed or permanently locked
in fully open position and glass doors must be in fully
open position.
