19-38 DRUM SANDER OWNER’S MANUAL Quick Set Up Guide to Unpacking
NOTE: FAST LEVER
The fast lever should be in the up-
right position for installation of
the sanding unit. The fast lever
raises the inboard side of con-
veyor up. Do not ever tighten the
bolts all the way down. The fast
lever should always be able to be
moved back and forth between
and up/down position. The bolts
should be tightened, but not so
tight that the fast lever doesn’t
move. The lever should be able to
move from the down to up posi-
tion easily.
10
11
Install two lock washers and two flat
washers on the studs on outboard side of
the conveyor belt.
9

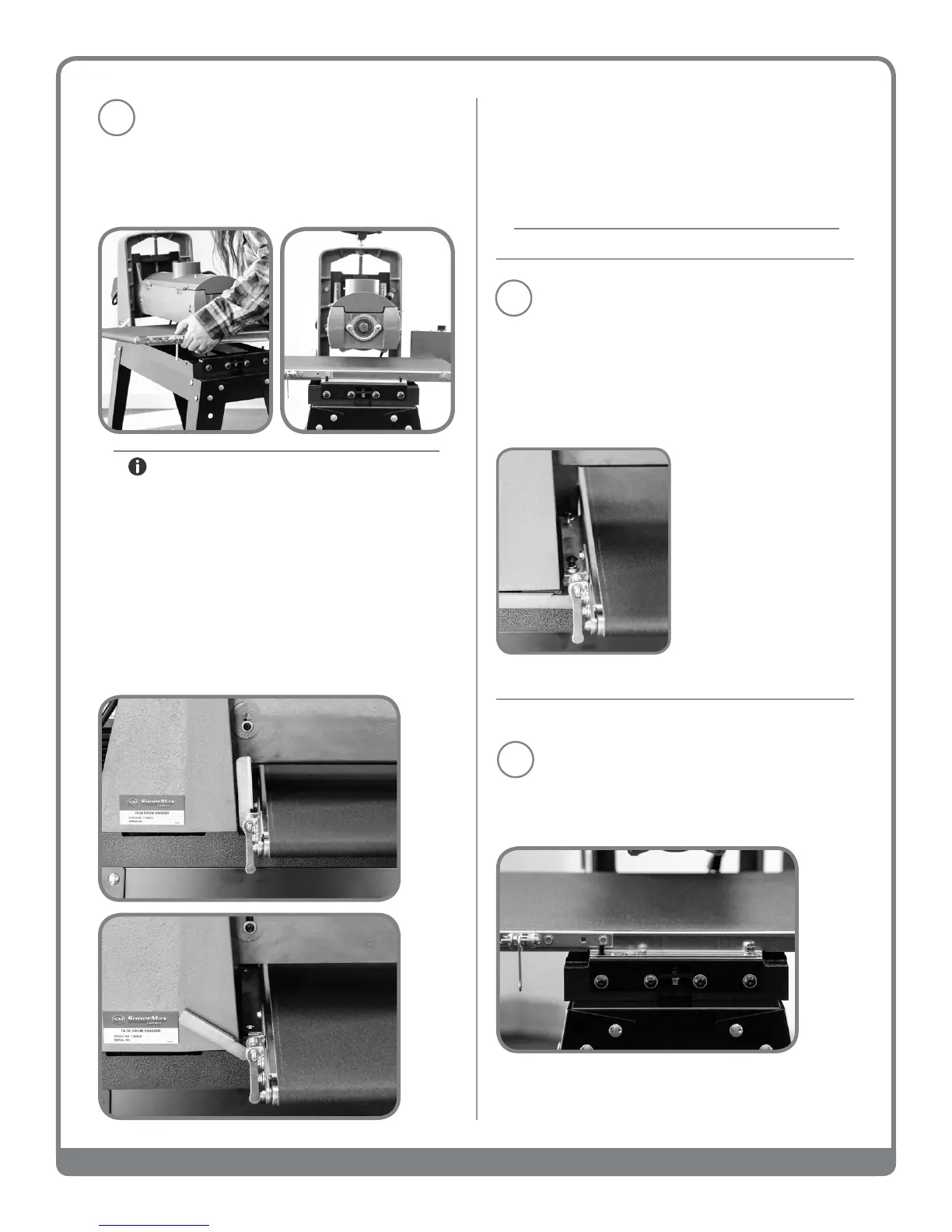

Open BOX 2. Remove conveyor from pack-
aging and place on sanding unit. The con-
veyor motor should be nearest to the main
motor and depth gauge.
Install lock washer and flat washer onto
two socket heads (or hex head bolts) and
install into flange of conveyor bed on in-
board (motor side.) Keep support plate in
place on inboard side and make sure the
fast lever is positioned up.
