19-38 DRUM SANDER OWNER’S MANUAL Quick Set Up Guide to Unpacking
7
8

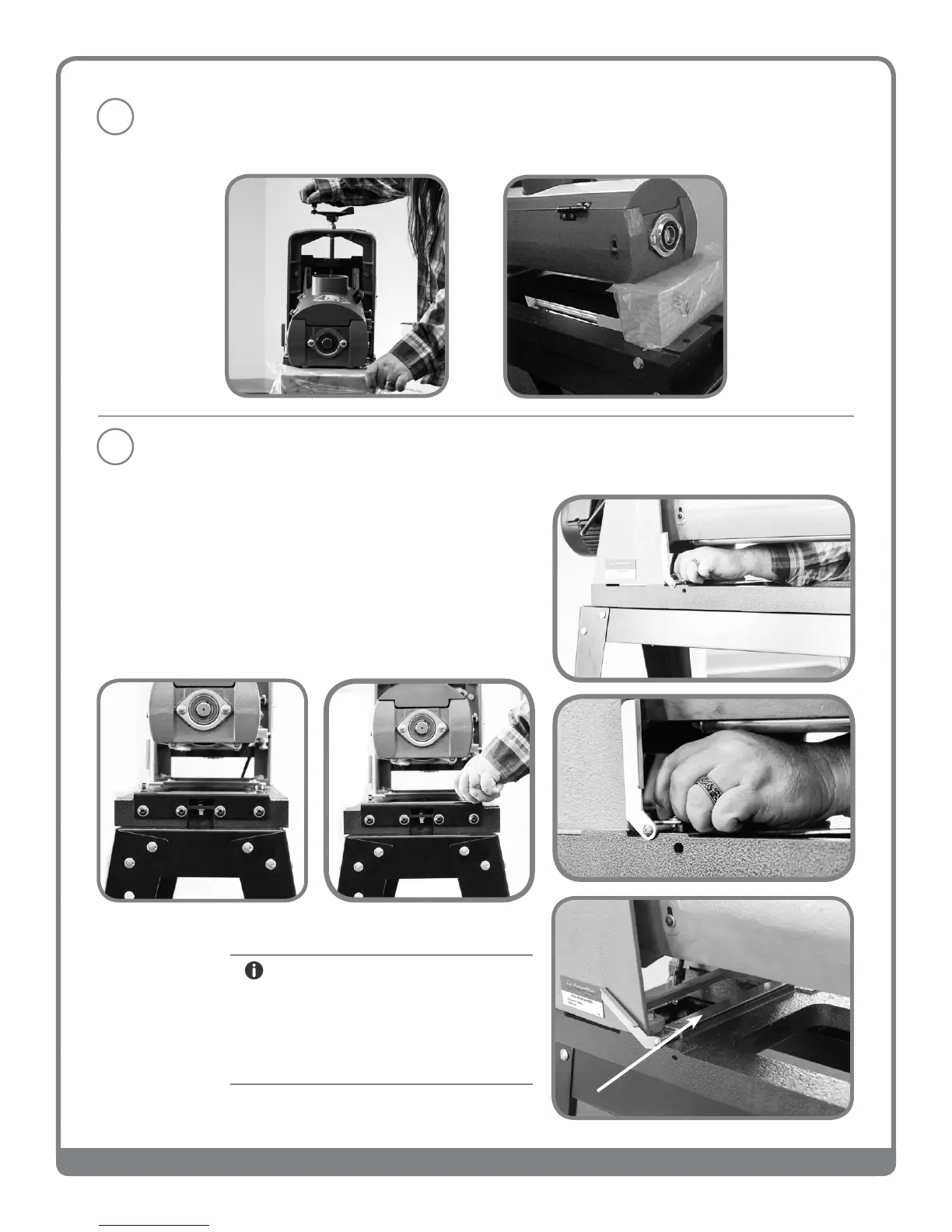

Turn the handle and raise sanding head to higher position to remove
packing block from under carriage arm.
Next prepare the unit for the installation of the
conveyor belt. You will remove the bolts at at-
tachment points to allow the conveyor belt to be
attached to the sanding unit. You will need to re-
move 4 bolts in total, two on each side of the unit.
NOTE: SILVER PLATE
Leave the silver plate, which is
near the fast lever and under
the motor, in place when re-
moving bolts.
A. First remove the 2 bolts on the outboard side of the
conveyor belt.
B. Next remove the 2 bolts on the inboard
side of the conveyor belt.
