Super AOC-MGP-i2/i4 Add-on Card User's Guide

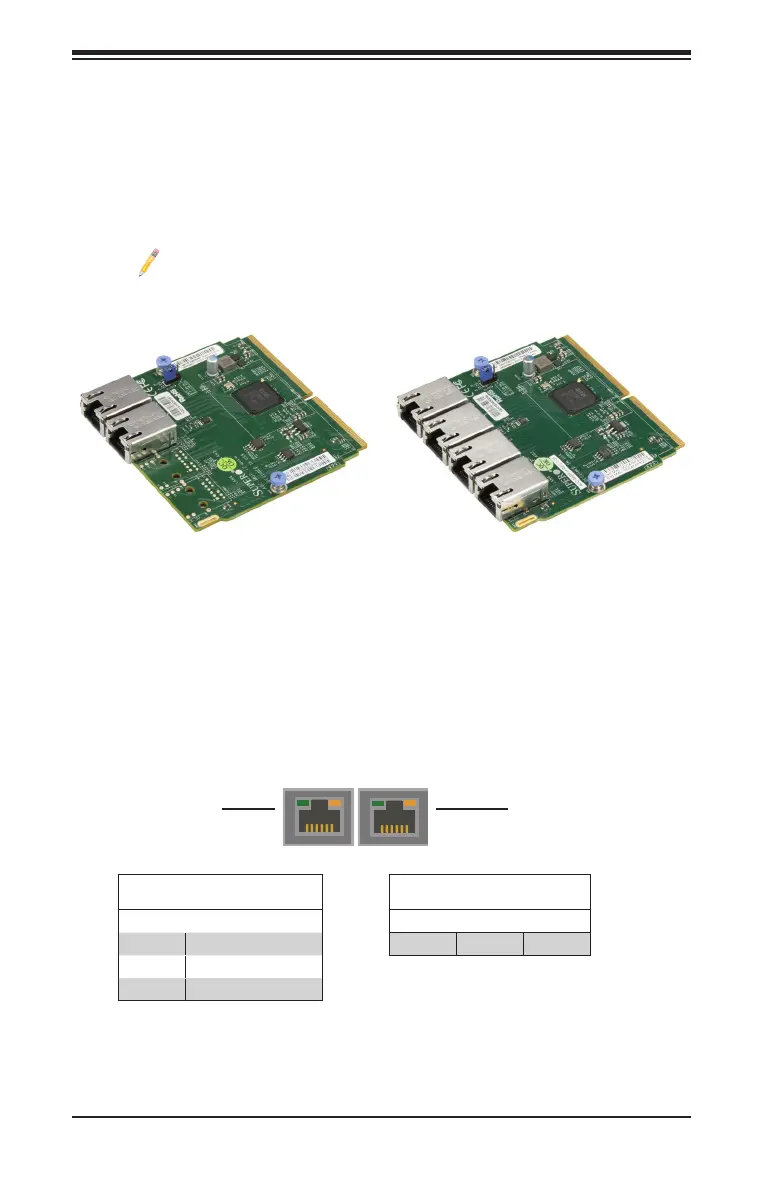

LAN Port LED Indicators
Each LAN port has two LEDs to indicate speed and data activity. Refer to the table
below for LED color and denition.
LAN Ports
There are two 1GbE LAN ports on the AOC-MGP-i2 and four 1GbE LAN ports on
the AOC-MGP-i4. These LAN ports support connection speeds of 1Gbps. Use a
direct-attach RJ45 type LAN cable.
Note: Please refer to "Optional Accessories" on page 1-4 for recommended
cables.
2-3 LAN Ports and LAN LED Indicators
LAN Ports
1. SFP+ Port 0
2. SFP+ Port 1
3. SFP+ Port 2
4. SFP+ Port 3
Link LED
LAN Port Link LED (Left)
LED State
LED Color Denition
Green 100 Mbps
Amber 1 Gbps
O󰀨 No Connection
LAN Port Activity LED (Right)
LED State
Color Status Denition
Yellow Flashing Active
Activity LED
IPMI LAN
(X8ST3-F)
The AOC-MGP-i4 Image
The AOC-MGP-i2 Image
