Super AOC-MGP-i2/i4 Add-on Card User's Guide
Conventions Used in the User's Guide
Pay special attention to the following symbols for proper system installation and for
safety instructions to prevent damage to the system or injury to yourself:
Warning: Important information given to ensure proper system installation
or to prevent damage to the components or injury to yourself.
Note: Additional information given for proper system setup.

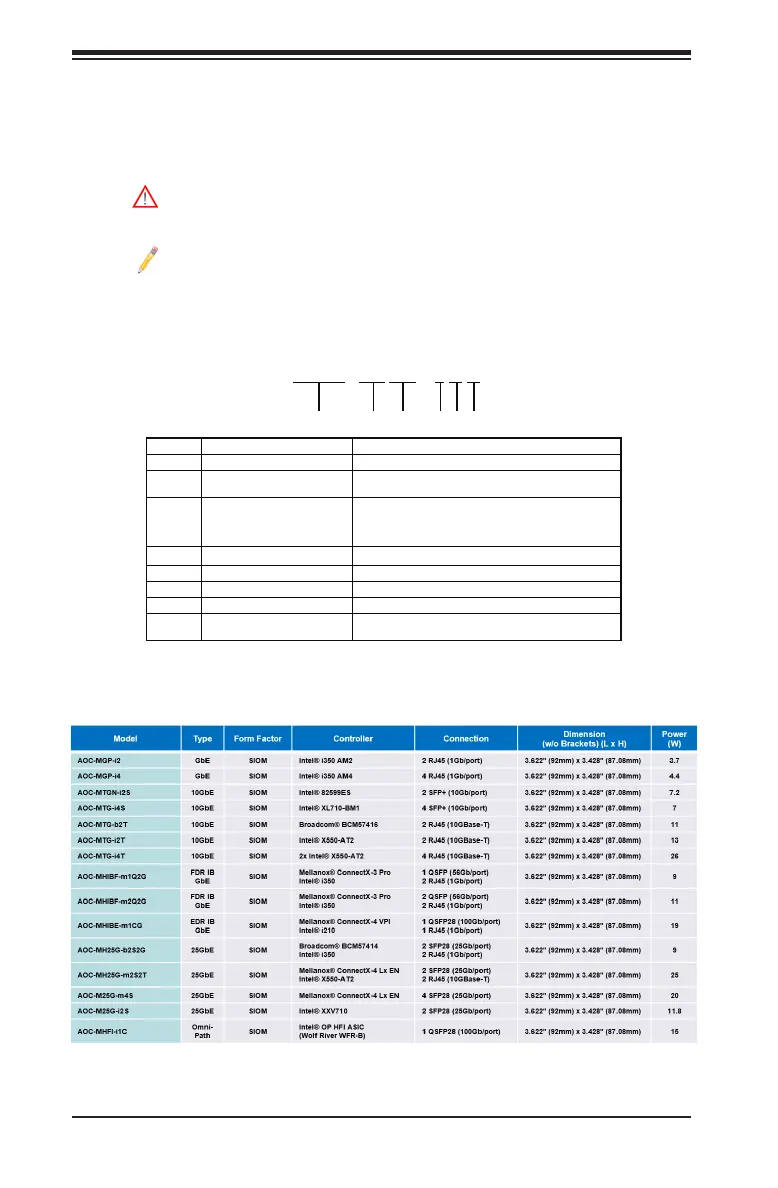

Networking Adapter List
Naming Convention for SIOM Network Adapters
A O C – MH IBF – 2 Q G
1 – 2 3 – 6 7 8
Character Representation Options
1st Product Family AOC: Add On Card
2nd Form Factor S: Standard, P: Proprietary, C: MicroLP,
M: Super IO Module (SIOM), MH: SIOM Hybrid
3rd Product Type/Speed G: GbE (1Gb/s), TG: 10GbE (10Gb/s), 25G: 25GbE (25Gb/s),
40G: 40GbE (40Gb/s), 50G: 50GbE (50Gb/s), 100G: 100GbE
(100Gb/s), IBE: EDR IB (100Gb/s), IBF: FDR IB (56Gb/s),
IBQ: QDR IB (40Gb/s), HFI: Host Fabric Interface
4th C
hipset Model (Optional) N: Niantec (82599), P: Powerville (i350), S: Sageville (X550)
5th Chipset Manufacturer (Optional) i: Intel, m: Mellanox, b: Broadcom
6th Number of Ports 1: 1 port, 2: 2 ports, 4: 4 ports
7th Connector Type (Optional) S: SFP+/SFP28, T: 10GBase-T, Q: QSFP+, C: QSFP28
8th 2
nd
Controller/Connector Type
(Optional)
G: GbE RJ45, S: 10G SFP+, T: 10GBase-T
Naming Convention for Standard Network Adaptors
