Chapter 3: Installation
Follow this step to install the add-on card if your system does not support a swap-
pable bracket. Insert the SIOM card in the motherboard and then install the moth-
erboard in the chassis. An internal bracket comes with the SIOM card 1U chassis
SKU. It needs to be installed onto the chassis.
4. Secure the add-on card to the chassis. If required, use the screw that you
previously removed.
5. Attach any necessary external cables to the add-on card.
6. Replace the system cover.
7. Plug in the power cord and power up the system.

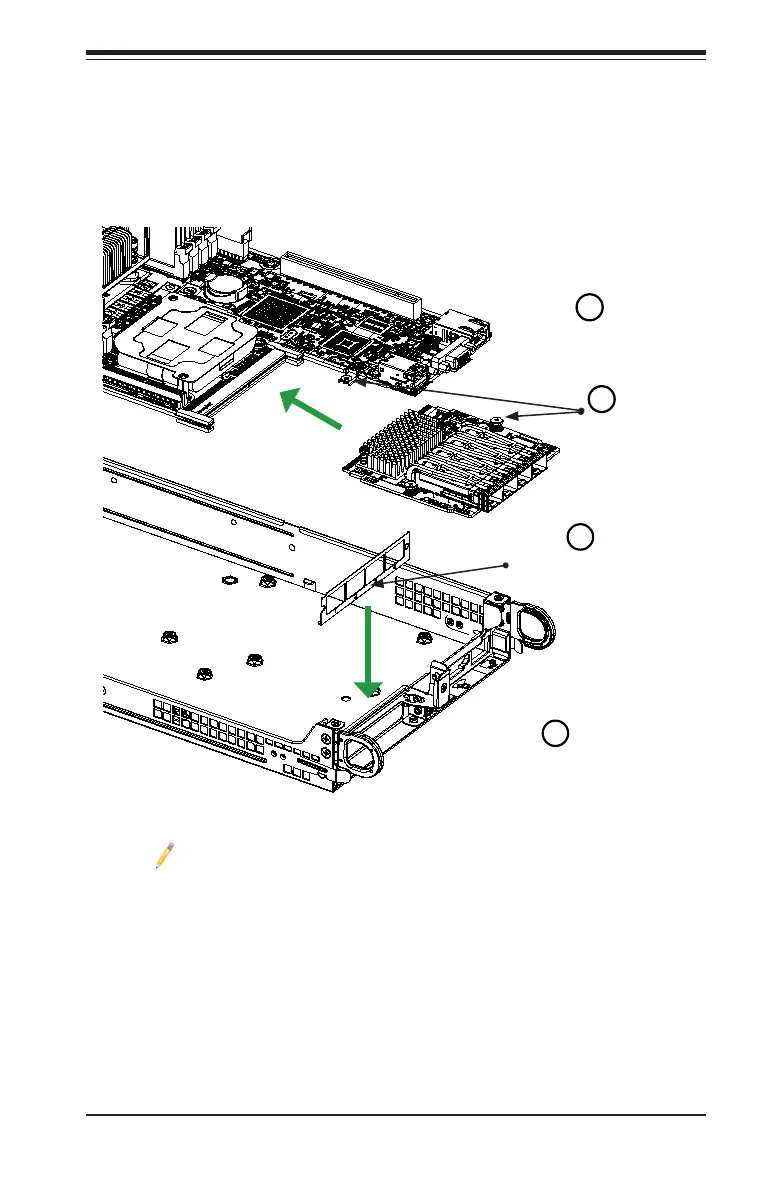

Insert the SIOM card
into the motherboard
Install the bracket
onto the chassis
Install the motherboard
in the chassis
Tighten the screw
Note: It is recommended that the SIOM card installation above be com-
pleted by a system integrator or the manufacturer.
