4-28
Supermicro C7C242-CB-M/MW Motherboard User’s Manual

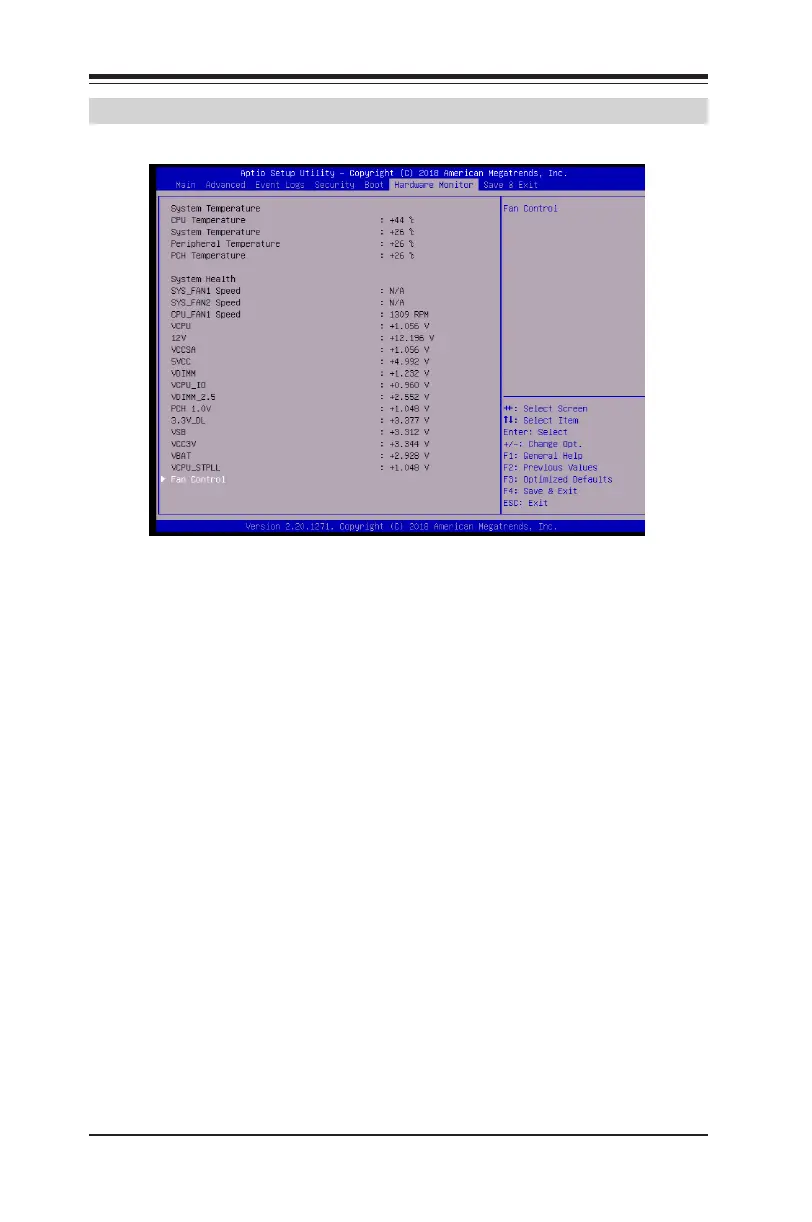

4-7 Hardware Monitor
System Temperature
The following information is displayed:
• CPU Temperature - the CPU temperature detected by PECI
• System Temperature - the system internal temperature
• Peripheral Temperature - the detected peripheral device temperature
• PCH Temperature - the detected PCH chip temperature
System Health
The following voltage information is displayed:
• SYS_FAN1 Speed
• SYS_FAN2 Speed
• CPU_FAN1 Speed
• VCPU
• 12V
