Chapter 2: Installation
2.2 Motherboard Installation
All motherboards have standard mounting holes to t different types of chassis. Make sure
that the locations of all the mounting holes for both the motherboard and the chassis match.
Although a chassis may have both plastic and metal mounting fasteners, metal ones are
highly recommended because they ground the motherboard to the chassis. Make sure that
the metal standoffs click in or are screwed in tightly.

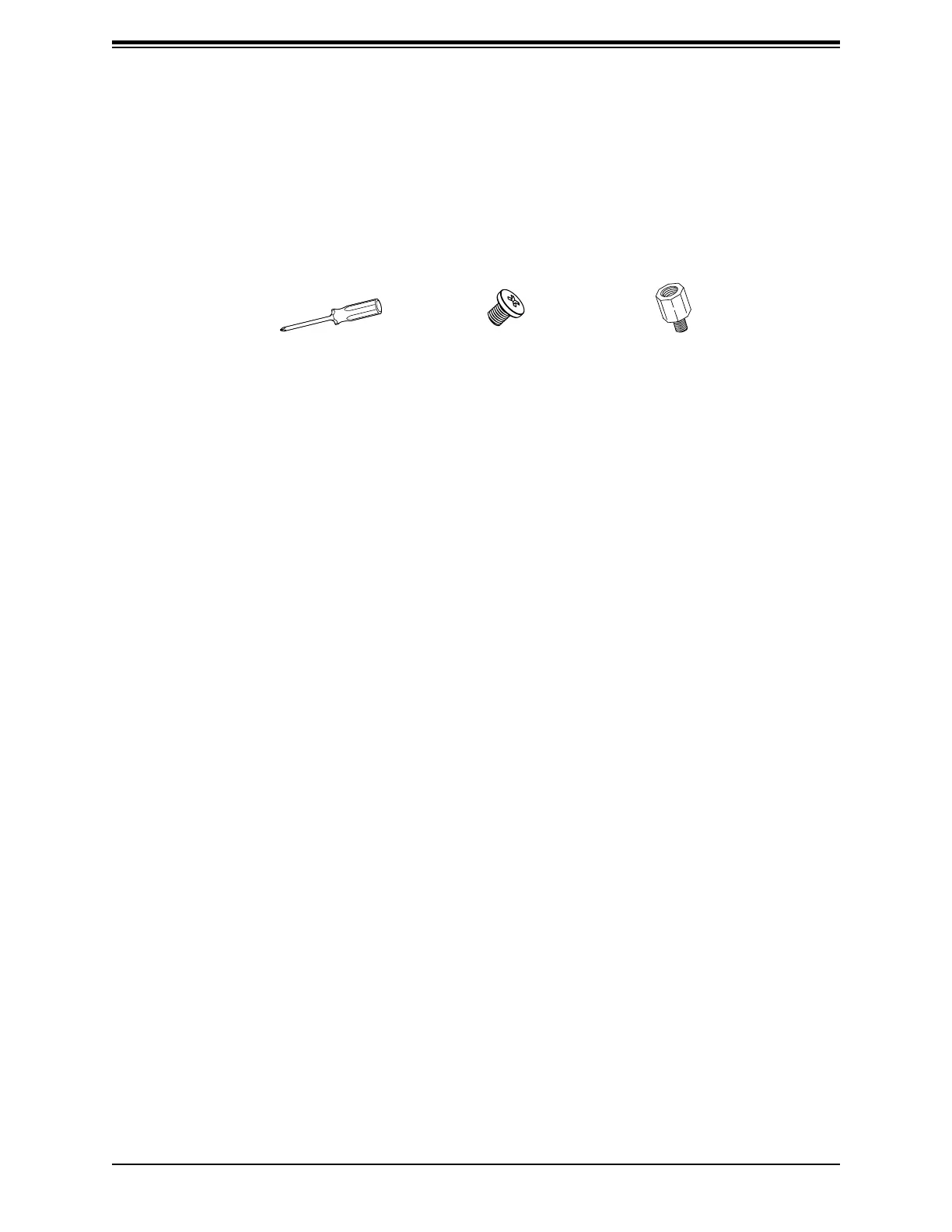

Philips
Screwdriver (1)
Standoffs (13)
Only if Needed
Philips Screws (13)
Tools Needed
Location of Mounting Holes
Notes:
1. To avoid damaging the motherboard and its components, please do not use a force
greater than 8 lb/inch on each mounting screw during motherboard installation.
2. Some components are very close to the mounting holes. Please take precautionary
measures to avoid damaging these components when installing the motherboard to the
chassis.

Supermicro H11DSi-NT Specifications

General

USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Number of DIMM slots	16
Supported DIMM module capacities	8GB, 16GB, 32GB, 64GB, 128MB
ECC	Yes
Memory voltage	1.2 V
Memory channels	Octa-channel
Supported memory types	DDR4-SDRAM
Maximum internal memory	2048 GB
Supported memory clock speeds	2666 MHz
BIOS type	EEPROM
ACPI version	5.1
System Management BIOS (SMBIOS) version	3.1.1
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA III
On-board graphics card model	Aspeed AST2500
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
AMD Opteron series	7000
Processor manufacturer	AMD
Processor number of cores supported	32, 28
Wi-Fi	No
Ethernet interface type	10 Gigabit Ethernet
Number of SATA III connectors	10
Trusted Platform Module (TPM) version	2.0
Sustainability certificates	RoHS
Motherboard form factor	Extended ATX
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	331 mm
Width	305 mm
