Supermicro H11DSi-NT User Manual

23
Chapter 2: Installation

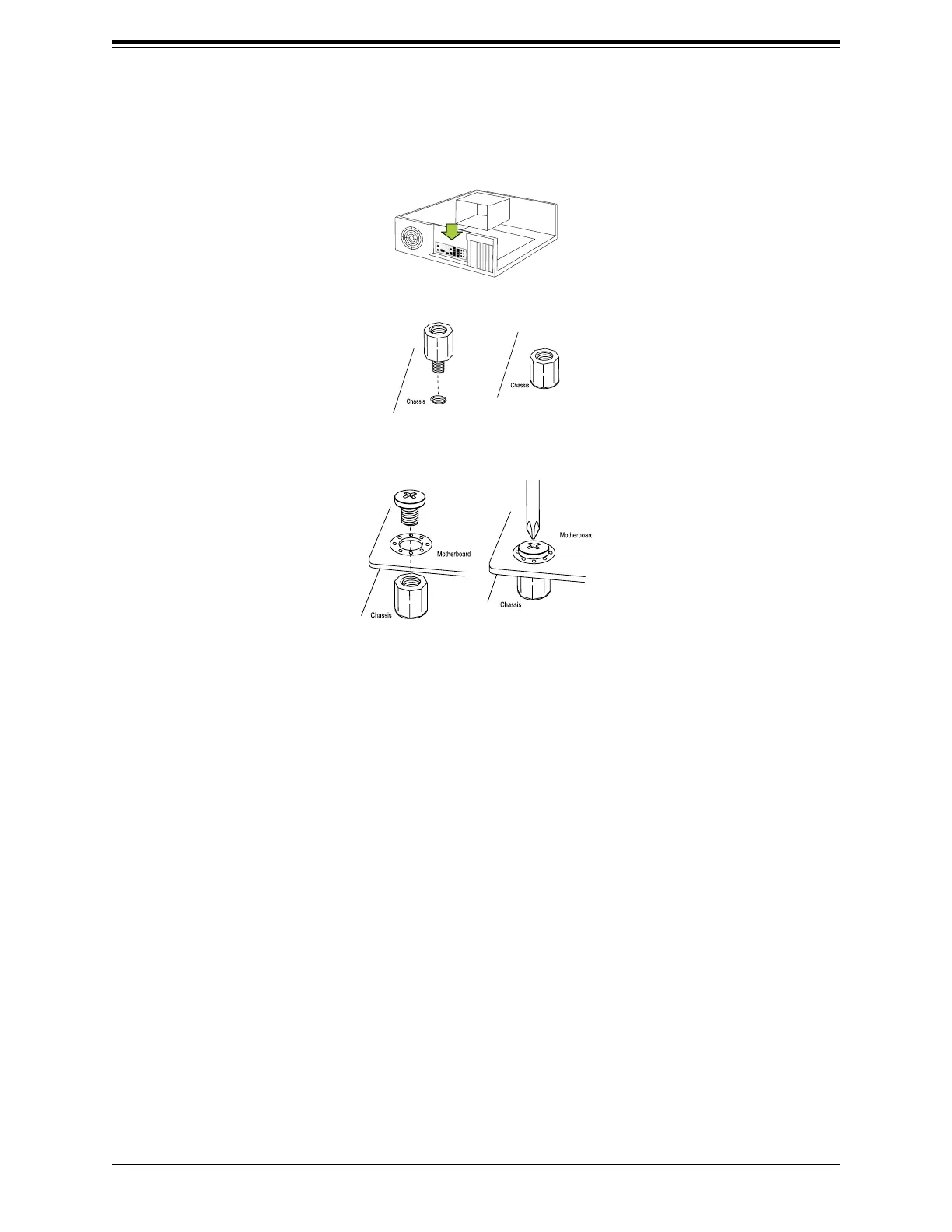

Installing the Motherboard
1. Install the I/O shield into the back of the chassis.
2. Locate the mounting holes on the motherboard. See the previous page for the locations.
3. Locate the matching mounting holes on the chassis. Align the mounting holes on the
motherboard with the mounting holes on the chassis.
4. Install standoffs in the chassis as needed.
5. Install the motherboard into the chassis carefully to avoid damaging other motherboard
components.
6. Using the Phillips screwdriver, insert a Phillips head #6 screw into a mounting hole on
the motherboard and its matching mounting hole on the chassis.
7. Repeat Step 5 to insert #6 screws into all mounting holes.
8. Make sure that the motherboard is securely placed in the chassis.
Note: Images displayed are for illustration only. Your chassis or components might look
different from those shown in this manual.

Supermicro H11DSi-NT Specifications

General

USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Number of DIMM slots	16
Supported DIMM module capacities	8GB, 16GB, 32GB, 64GB, 128MB
ECC	Yes
Memory voltage	1.2 V
Memory channels	Octa-channel
Supported memory types	DDR4-SDRAM
Maximum internal memory	2048 GB
Supported memory clock speeds	2666 MHz
BIOS type	EEPROM
ACPI version	5.1
System Management BIOS (SMBIOS) version	3.1.1
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA III
On-board graphics card model	Aspeed AST2500
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
AMD Opteron series	7000
Processor manufacturer	AMD
Processor number of cores supported	32, 28
Wi-Fi	No
Ethernet interface type	10 Gigabit Ethernet
Number of SATA III connectors	10
Trusted Platform Module (TPM) version	2.0
Sustainability certificates	RoHS
Motherboard form factor	Extended ATX
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	331 mm
Width	305 mm
