Chapter 4: BIOS (EPYC 7001 Series)
83
Boot Mode Select
Use this item to select the type of device that the system is going to boot from. The options
are LEGACY, UEFI, and DUAL. The default setting is DUAL.
Legacy to EFI Support
This option Enables or Disables the system to boot to an EFI OS after the boot failed from
the legacy boot order.
FIXED BOOT ORDER Priorities Section
This option prioritizes the order of bootable devices that the system to boot from. Press
<Enter> on each entry from top to bottom to select devices.
Delete Boot Option
Use this feature to remove a pre-dened boot device from which the system will boot during
startup. The settings are [any pre-dened boot device].

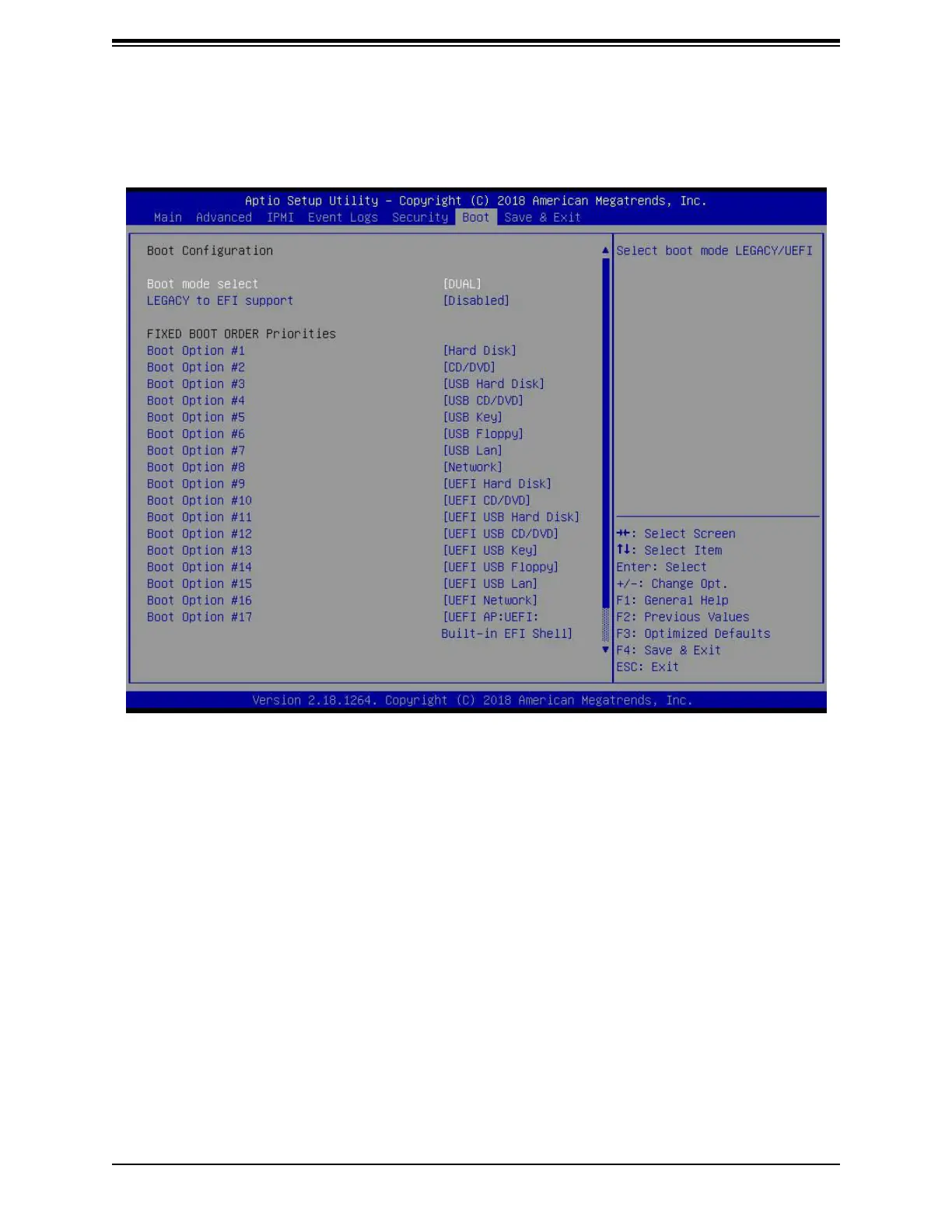

4.7 Boot
Use this tab to congure Boot Settings:
