1.3 Chassis Features
The SCE300 is a compact embedded 1U chassis for Mini ITX and a Flex ATX motherboard.
Front Features
The front of the chassis includes the control panel.

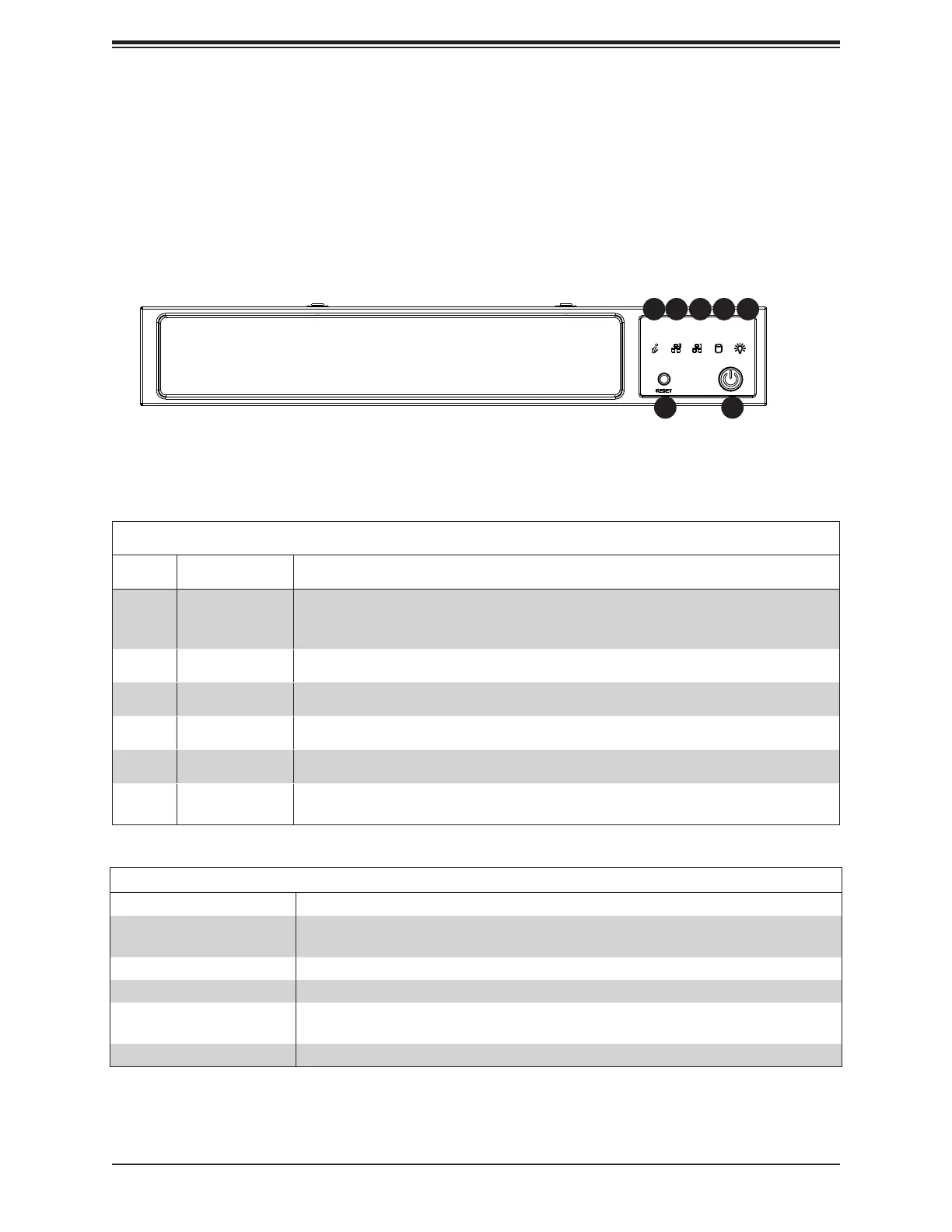

Figure 1-1. Chassis Front and Control Panel
Control Panel Features
Item Features Description
1 Power button
The main power switch applies or removes primary power from the power supply
to the server but maintains standby power. To perform most maintenance tasks,
unplug the system to remove all power.
2 Reset button Resets the system
3 Information LED Alerts operator to several states, as noted in the table below
4 and 5 NIC LED
6 HDD LED
7 Power LED
Indicates power is being supplied to the system power supply units. This LED is
illuminated when the system is operating normally.
12
Information LED
Status Description
Continuously on and red
An overheat condition has occurred.
(This may be caused by cable congestion.)
Blinking red (1Hz) Fan failure, check for an inoperative fan.
Blinking red (0.25Hz) Power failure, check for a non-operational power supply.
Solid blue
Local UID has been activated. Use this function to locate the server in a rack mount
environment.
Blinking blue Remote UID is on. Use this function to identify the server from a remote location.
