Supermicro SuperServer E300-9A - Ports

35
Chapter 3 Motherboard Connections
3.3 Ports

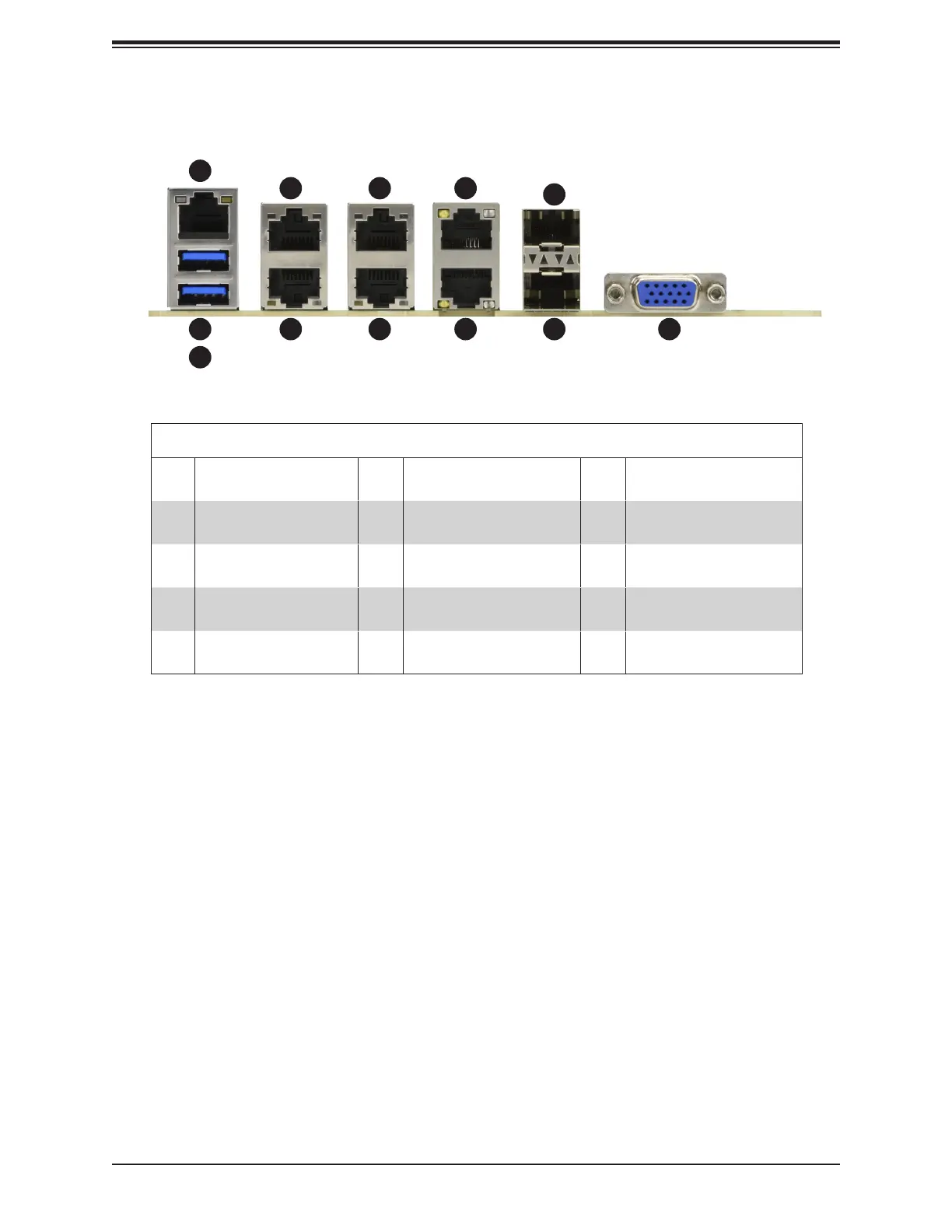

Figure 3-1. Rear Input/Output Ports
Ethernet Ports
Four gigabit Ethernet LAN ports (LAN1~LAN4), two gigabit Ethernet LAN ports (LAN5/LAN6),
two 10G SFP+LAN ports (LAN7/LAN8), and an IPMI LAN port are located on the I/O back
panel to provide network connections. These ports accept RJ45 type cables.
Universal Serial Bus (USB) Ports
Two USB 3.0 ports (USB0/1) are located on the I/O back panel. Two USB 2.0 headers
(USB2/3, 4/5) are on the motherboard to provide front panel access. USB cables are not
included.
VGA Port
The VGA controller is from AST2400 mainly for BMC KVM (Keyboard, Video and Mouse)
remote control purpose.
Unit Identier Switch

UID switch is located next to the VGA port on the back panel. The rear UID LED (LED7) is
located next to the UID Switch; the front UID LED is on the control panel. When you press
󰀨
UID can also be triggered using IPMI.
Rear I/O Ports
# Description # Description # Description
1. IPMI LAN Port 5.
RJ45 Gigabit Ethernet
LAN port (LAN1)
9.
RJ45 10GBase-T port
(LAN5)
2. USB 3.0 Port (USB1) 6.
RJ45 Gigabit Ethernet
LAN port (LAN4)
10.
10G LAN (SFP+) Port
(LAN8)
3. USB 3.0 Port (USB0) 7.
RJ45 Gigabit Ethernet
LAN port (LAN2)
11.
10G LAN (SFP+) Port
(LAN7)
4.
RJ45 Gigabit Ethernet
LAN port (LAN3)
RJ45 10GBase-T port
(LAN6)
12. VGA
1
9
8
7
6
5
4
3
2
10
12
11
