36
Super X11DPG-OT-CPU User's Manual
IPMI CODE
BIOS
LICENSE
11DPG-OT-CPU
REV:1.00

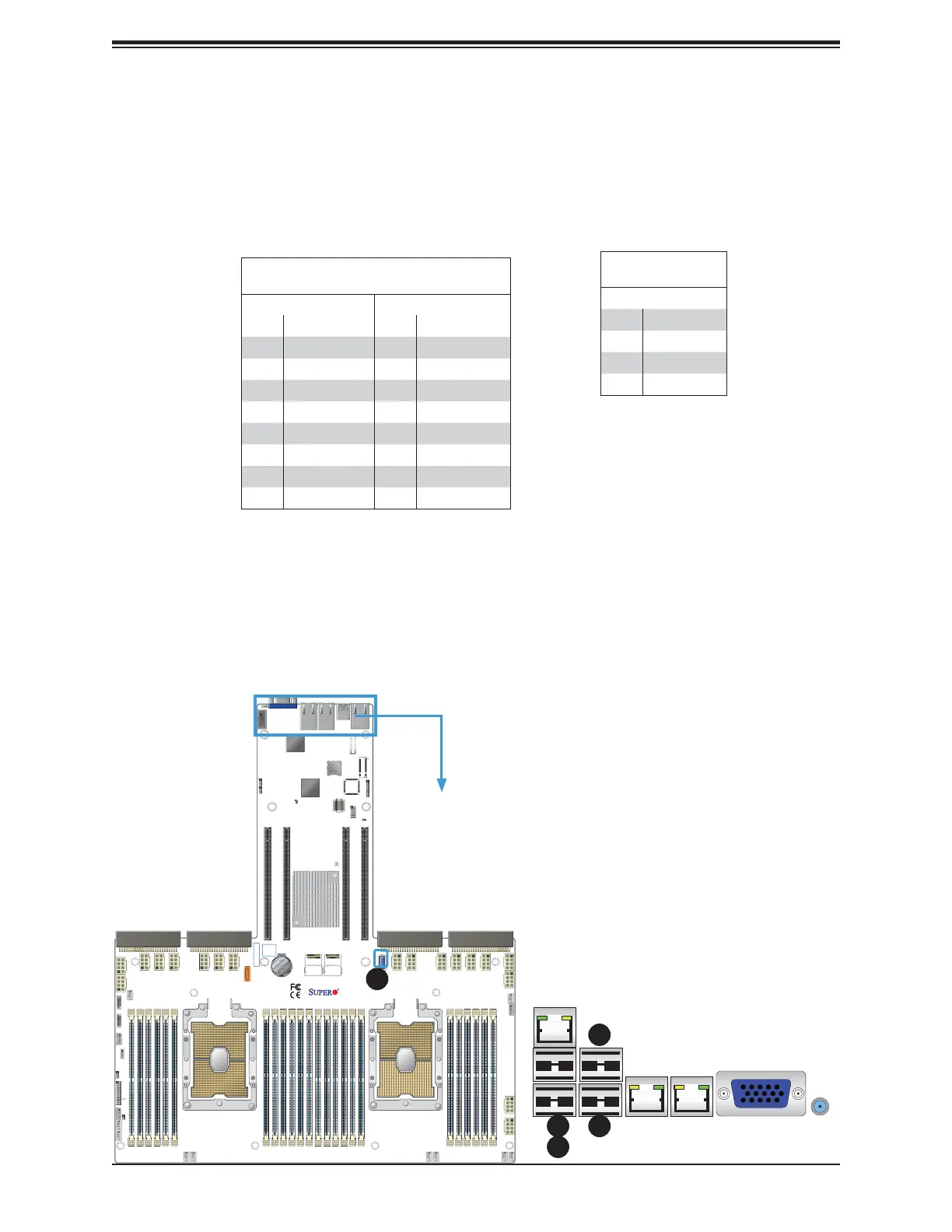

1. Type A USB 2.0 for front Access
2. Backpanel USB 1 (USB 3.0)
3. Backpanel USB 2 (USB 3.0)
4. Backpanel USB 3 (USB 3.0)
5. Backpanel USB 4 (USB 3.0)
1
5
43
2
Back Panel USB (3.0)
Pin Defi nitions
Pin# Defi nitio Pin# Defi nition
A1 VBUS B1 VBUS
A2 D- B2 D-
A3 D+ B3 D+
A4 GND B4 GND
A5 Stda_SSRX- B5 Stda_SSRX-
A6 Stda_SSRX+ B6 Stda_SSRX+
A7 GND B7 GND
A8 Stda_SSTX- B8 Stda_SSTX-
A9 Stda_SSTX+ B9 Stda_SSTX+
Universal Serial Bus (USB) Ports
Four USB 3.0 port (USB1/2, 3/4) are located on the I/O back panel. A Type A internal USB
2.0 header on the motherboard provides front access. Connect appropriate cables here to
use USB support. (USB cables are not included).
USB (2.0)
Pin Defi nitions
Pin# Defi nition
1 Vcc
2 Data-
3 Data+
4 Ground
To Next Page
