Chapter 2: Installation
Ethernet Ports
Two Ethernet ports (LAN1, LAN2) that support 10 GbE Ethernet LAN connections are located
on the I/O backplane. Additionally, an IPMI-dedicated LAN, located above USB 1/2 ports
on the I/O backplane, provides 1 GbE IPMI LAN support via the AST 2500 BMC. All these
LAN ports accept RJ45 type cables. Please refer to the LED Indicator Section for LAN LED
information.
IPMI CODE
BIOS
LICENSE
11DPG-OT-CPU
REV:1.00

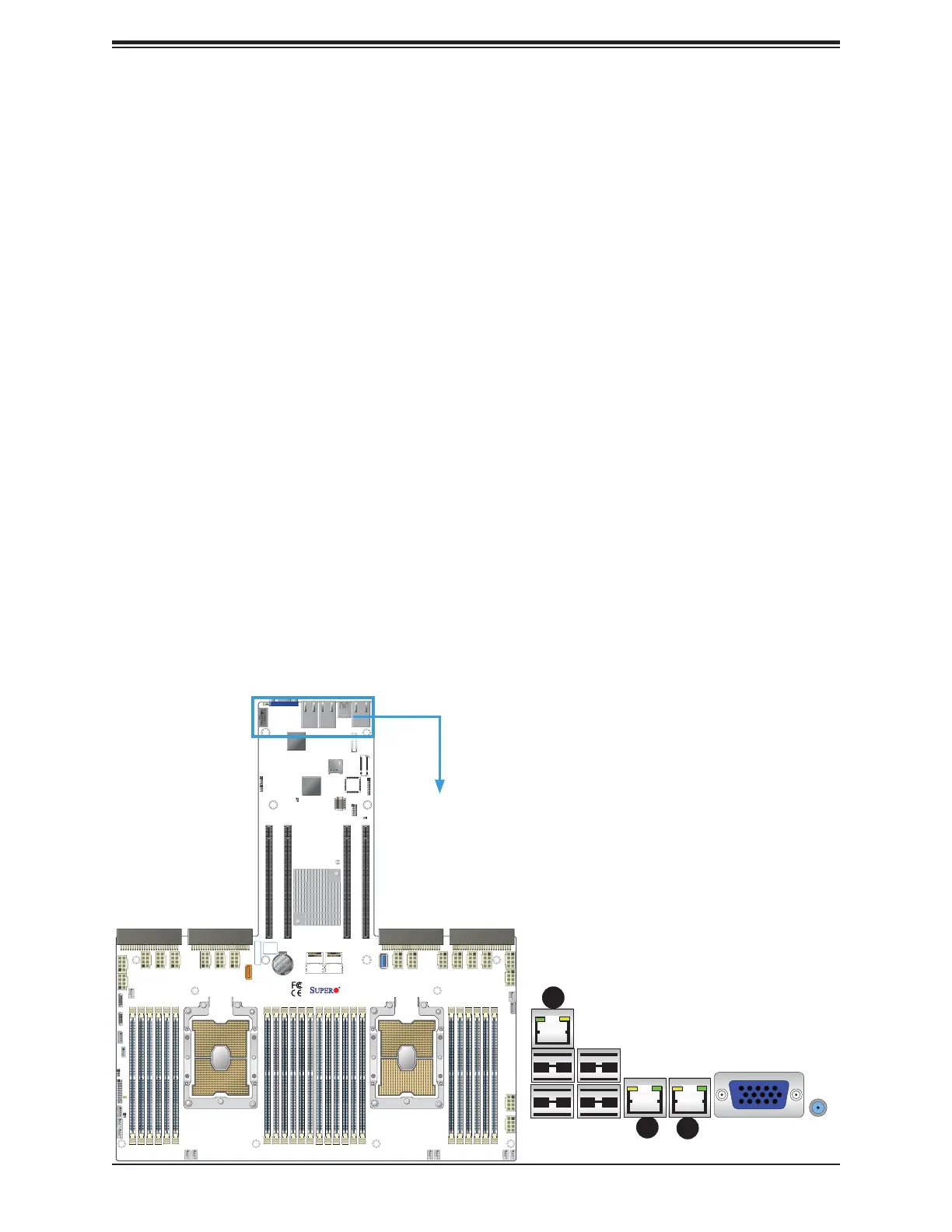

1. LAN Port 1 (10GbE LAN)
2. LAN Port 2 (10GbE LAN)
3. IPMI_LAN (1 GbE LAN)
1
3
2
