Chapter 2: Installation
Removing the Processor from the Processor Carrier Assembly
Once you have removed the processor carrier assembly from the PHM, you are ready to
remove the processor from the processor carrier by following the steps below.

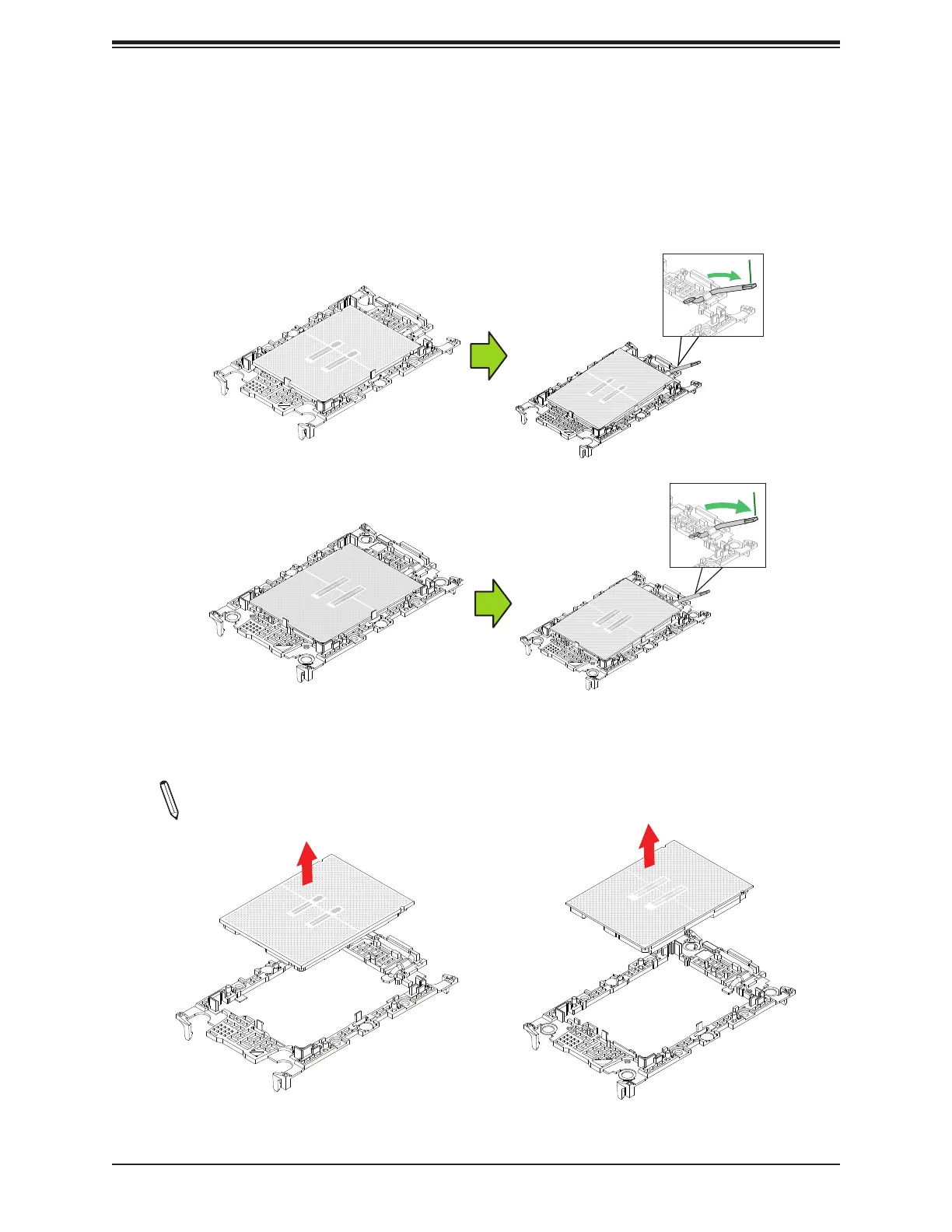

1. Unlock the lever from its locked position and push the lever upwards to disengage the
processor from the processor carrier as shown in the drawings on the right below.
2. Once the processor is loosened from the carrier, carefully remove the processor from
the processor carrier.
Note: Please handle the processor with care to avoid damaging the processor and
its pins.
Lever
Processor Carrier Assembly (SP XCC, Carrier E1A)
Lever
Processor Carrier Assembly (SP MCC, Carrier E1B)
SP XCC
SP MCC
