Supermicro X13DAI-T User Manual

61
Chapter 2: Installation
2.6 Front Control Panel

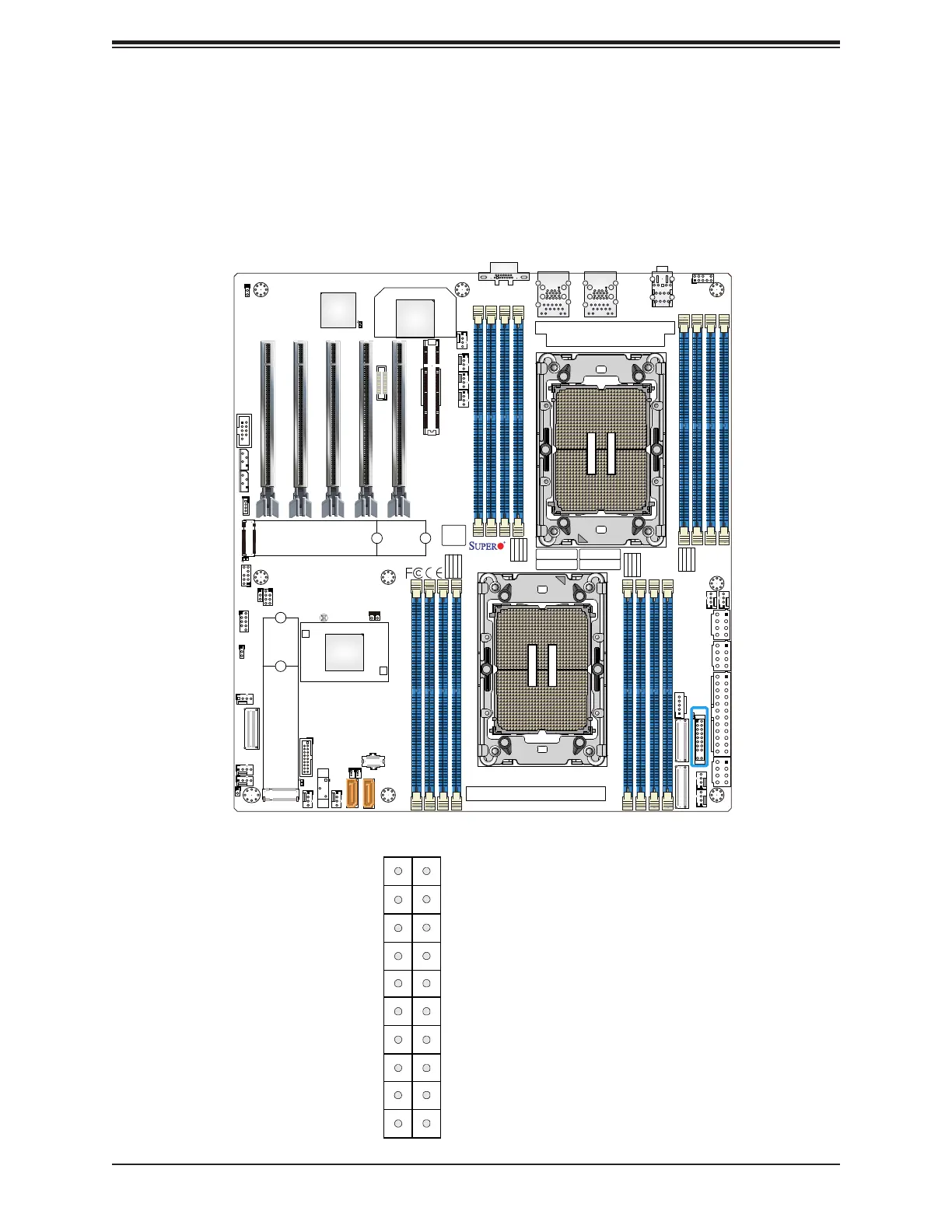

The front control panel header (JF1) contains header pins for various buttons and indicators
that are normally located on a control panel at the front of the chassis. These connectors
are designed specically for use with Supermicro chassis. Refer to the gure below for the
descriptions of the front control panel buttons and LED indicators.
CPU2
CPU1
DESIGNED IN USA
MAC CODE
IPMI CODE
BAR CODE
CM CODE
X13DAI-T
REV:1.00
BIOS
LICENSE
BT1
MH13
MH12
MH11MH10
JAUDIO1
T-SGPIO1
JPI2C1
JNCSI1
JSD2JSD1
JBT1
JS1
LEDBMC1
LED4
LED7
LEDPWR1
JF1
JPWR1
JPWR3
JPWR2
JPWR4
JNVI2C1
JIPMB1
JPG1
JTP1
JPTG1
JL1
JVRM1
JVRM2
JTPM1
JRK1
FANC
FAN6
FAN7
FAN5
FAN8
FAN9
FAN10
FANB
FANA
FAN1
FAN2
FAN3
FAN4
LAN
CTRL
AUDIO FP
USB8 (3.1 Gen 2)
P1_NVME0/1
P2_NVME0/1
(NVME ONLY)
M.2-C1
(PWR I2C)
COM1
(SATA0~7)
I-SATA9
I-SATA8
USB0/1
(CLEAR CMOS)
USB6/7 (3.0)
P1-DIMMF1 P1-DIMME1 P1-DIMMH1 P1-DIMMG1
P2-DIMMD1 P2-DIMMB1 P2-DIMMA1 P2-DIMMC1
P1-DIMMB1 P1-DIMMA1
P1-DIMMD1 P1-DIMMC1
P2-DIMMG1 P2-DIMMH1 P2-DIMME1 P2-DIMMF1
VGA
(JPCIE1) P1 SLOT1 PCIe 5.0 x16
(JPCIE2)
P2 SLOT2 PCIe 5.0 x16
(JPCIE3)
P1 SLOT3 PCIe 5.0 x16
(JPCIE4)
P2 SLOT4 PCIe 5.0 x16
(JPCIE6)
P2 SLOT6 PCIe 5.0 x8
(JPCIE5)
P1 SLOT5 PCIe 5.0 x16
BMC
(NVME ONLY)
M.2-C2
PCH
USB2/3 (3.0)
LAN1
USB4/5 (3.0)
LAN2
Power Button
(Blue LED_Cathode_UID)
NIC1 (Activity) LED
Reset Button
HDD LED
FP PWR LED
ID_UID/3.3V Stby
Ground
19
Ground
20
1 2
Ground
Power Fail (for LED6)
NIC2 (Link) LED
NMI
PWR LED-(Cable)
(Red OH/Fan Fail/PWR Fail for LED5/Blue UID LED)
3.3V
PWR LED+(Cable)
JF1
Red+
Blue+
NIC2 (Activity) LED
NIC1 (Link) LED
Key
Key
3.3V
