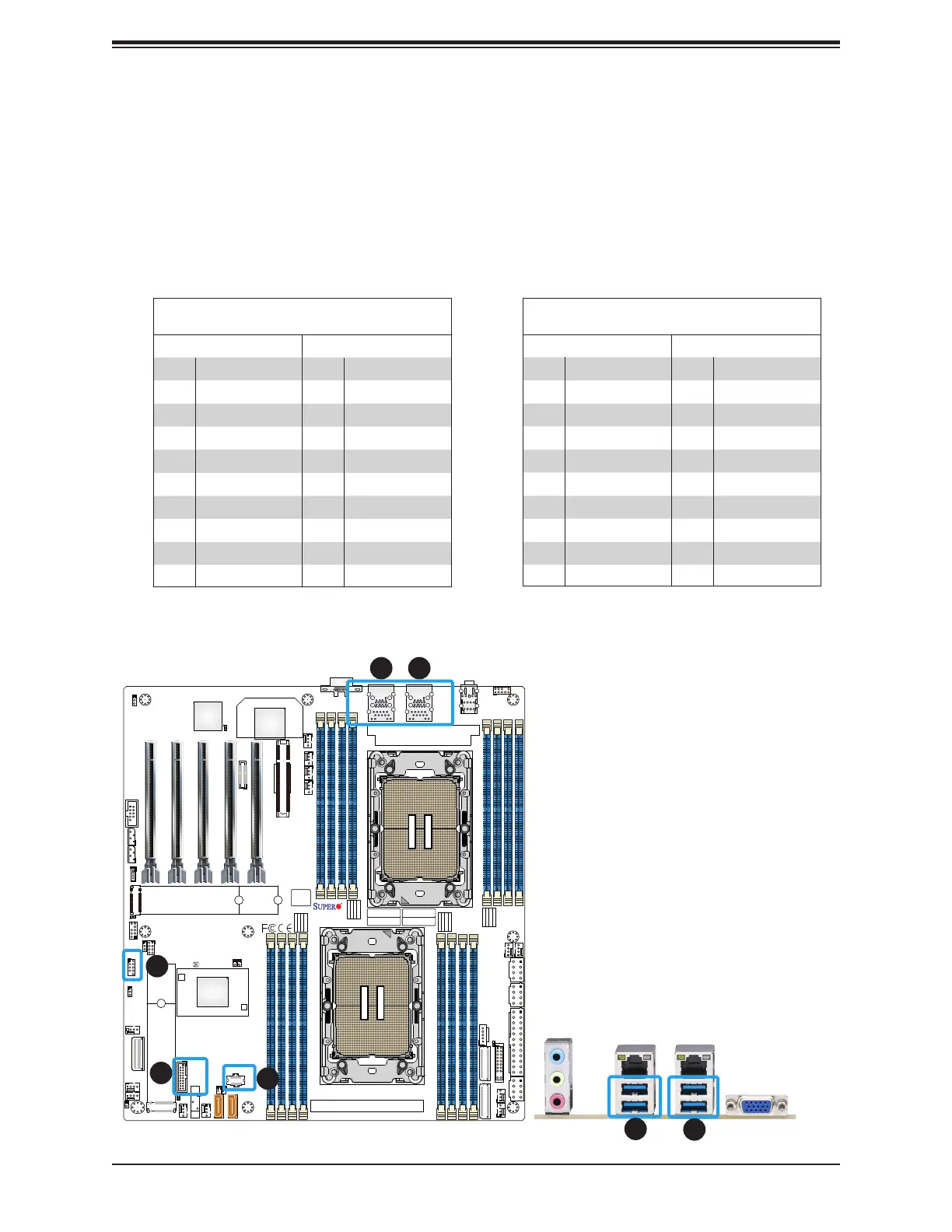

Supermicro X13DAI-T User Manual

59
Chapter 2: Installation
1. USB0/1: USB 2.0 Header
2. USB2/USB3: USB 3.0 Ports
3. USB4/USB5: USB 3.0 Ports
4. USB6/7: USB 3.0 Header
5. USB8: Internal USB 3.1 Gen 2
Connector
CPU2
CPU1
DESIGNED IN USA
MAC CODE
IPMI CODE
BAR CODE
CM CODE
X13DAI-T
REV:1.00
BIOS
LICENSE
BT1
MH13
MH12
MH11MH10
JAUDIO1
T-SGPIO1
JPI2C1
JNCSI1
JSD2JSD1
JBT1
JS1
LEDBMC1
LED4
LED7
LEDPWR1
JF1
JPWR1
JPWR3
JPWR2
JPWR4
JNVI2C1
JIPMB1
JPG1
JTP1
JPTG1
JL1
JVRM1
JVRM2
JTPM1
JRK1
FANC
FAN6
FAN7
FAN5
FAN8
FAN9
FAN10
FANB
FANA
FAN1
FAN2
FAN3
FAN4
LAN
CTRL
AUDIO FP
USB8 (3.1 Gen 2)
P1_NVME0/1
P2_NVME0/1
(NVME ONLY)
M.2-C1
(PWR I2C)
COM1
(SATA0~7)
I-SATA9
I-SATA8
USB0/1
(CLEAR CMOS)
USB6/7 (3.0)
P1-DIMMF1 P1-DIMME1 P1-DIMMH1 P1-DIMMG1
P2-DIMMD1 P2-DIMMB1 P2-DIMMA1 P2-DIMMC1
P1-DIMMB1 P1-DIMMA1
P1-DIMMD1 P1-DIMMC1
P2-DIMMG1 P2-DIMMH1 P2-DIMME1 P2-DIMMF1
VGA
(JPCIE1) P1 SLOT1 PCIe 5.0 x16
(JPCIE2)
P2 SLOT2 PCIe 5.0 x16
(JPCIE3)
P1 SLOT3 PCIe 5.0 x16
(JPCIE4)
P2 SLOT4 PCIe 5.0 x16
(JPCIE6)
P2 SLOT6 PCIe 5.0 x8
(JPCIE5)
P1 SLOT5 PCIe 5.0 x16
BMC
(NVME ONLY)
M.2-C2
PCH
USB2/3 (3.0)
LAN1
USB4/5 (3.0)
LAN2
2
1
4
USB 3.0 Header (USB6/7)
Pin Denitions
Pin# Denition Pin# Denition
1
USB3_RN1 11 USB_P2
2
USB3_RP1 12 USB_N2
3
GND 13 GND
4
USB3_TN1 14 USB3_TP2
5
USB3_TP1 15 USB3_TN2
6
GND 16 GND
7
USB_N1 17 USB3_RP2
8
USB_P1 18 USB3_RN2
9
GND 19 VBUS
10 NC X
5
USB 3.1 Gen 2 Connector (USB8)
Pin Denitions
Pin# Denition Pin# Denition
1
VBUS 20 VBUS
2
USB3_TP1 19 USB3_TP2
3
USB3_TN1 18 USB3_TN2
4
GND 17 GND
5
USB3_RP1 16 USB3_RP2
6
USB3_RN1 15 USB3_RN2
7
VBUS 14 GND
8
USBC_CC1 13 USB_N
9
USBC_SBU1 12 USB_P
10 USBC_SBU2 11 USBC_CC2
3
Universal Serial Bus (USB) Ports and Headers
There are four USB 3.0 ports (USB2, USB3, USB4, USB5) on the rear I/O panel. The USB
2.0 header, located at USB0/1, and one USB 3.0 header, located at USB6/7, support two USB
connections of each for front access. USB8 is the internal USB 3.1 Gen 2 connector. These
USB ports and headers/connector can be used for USB support via USB cables (not included).
