Chapter 2: Installation
2-9
OPEN 1st
Motherboard
Screw#1
Screw#2

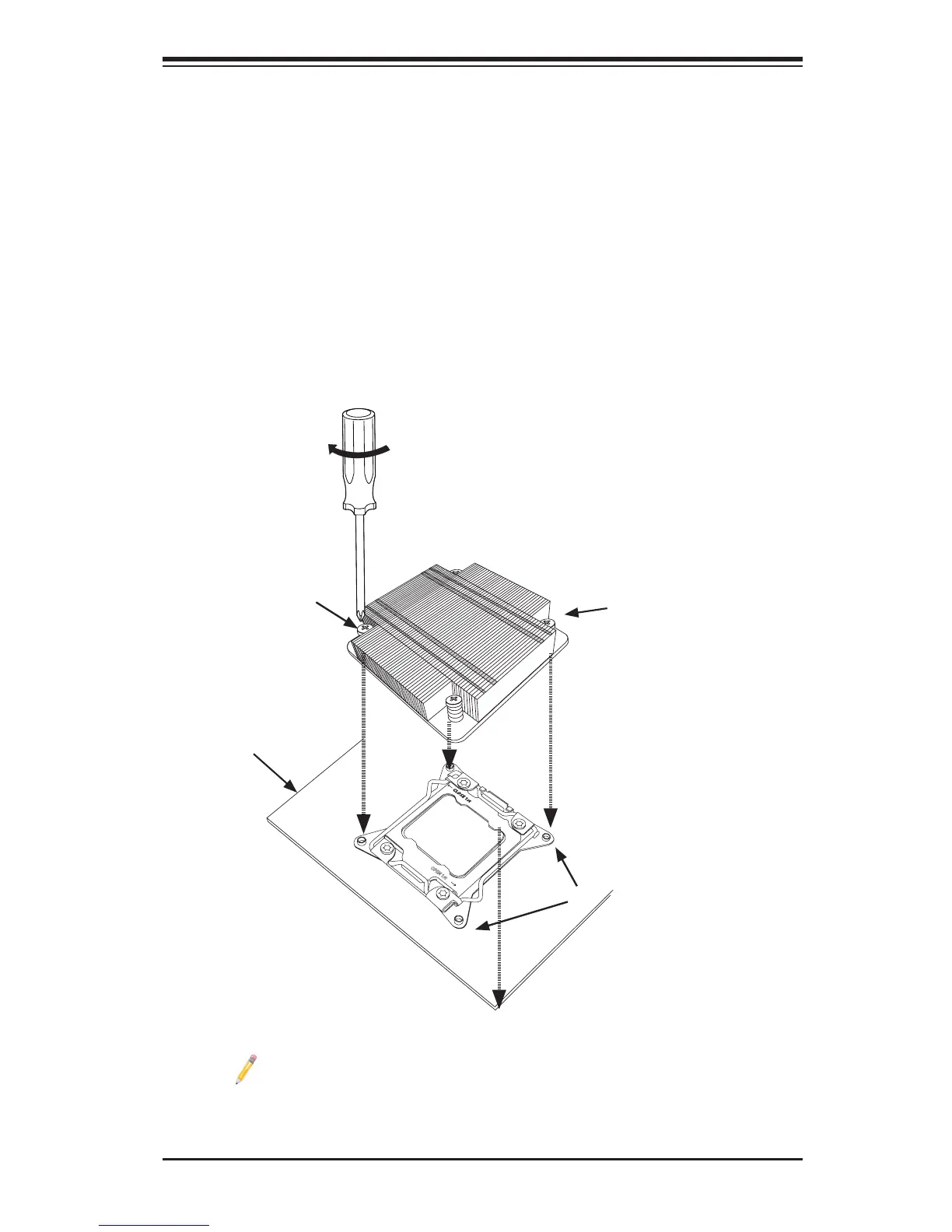

Installing a Passive CPU Heatsink
1. Do not apply any thermal grease to the heatsink or the CPU die -- the re-
quired amount has already been applied.
2. Place the heatsink on top of the CPU so that the four mounting holes are
aligned with those on the Motherboard's and the Heatsink Bracket under-
neath.
3. Screw in two diagonal screws (i.e., the #1 and the #2 screws) until just snug
(-do not over-tighten the screws to avoid possible damage to the CPU.)
4. Finish the installation by fully tightening all four screws.
Mounting Holes
Note: For optimized airow, please follow your chassis airow direction
to install the correct CPU heatsink direction. Graphic drawings included
in this manual are for reference only. They might look different from the
components installed in your system
To Next Page
