X9DRD-iF/LF Motherboard User’s Manual
F1
BMC CTRL
LAN CTRL
BIOS
FP CTRL
A1
COM1
1.10Rev.
X9DRD-iF
JBT1
LED2
LEDM1
LED3
JIPMB1
JD1
JUIDB
JPW4
SP1
JSTBY1
JRK1
JPW3
JPW2
JPW1
JBAT1
JL1
JOH1
JI2C2
JI2C1
JWD1
JPG1
JPB1
JPL1
FAN4
FAN5
FAN6
FAN2
FAN1
FAN8
FAN7
T-SGPIO2
T-SGPIO1
SCU0
I-SATA2
I-SATA1
I-SATA0
JF1
JTPM1
G1
H1
E1
C1
D1
USB6
USB4/5
USB8/9
CPU1
CPU1
SLOT7 PCI-E 3.0 X8
CPU2
CPU2
CPU1
B1
SLOT4 PCI-E 3.0 X8
SLOT3 PCI-E 3.0 X8
SLOT5 PCI-E 3.0 X8
SLOT6 PCI-E 3.0 X16
COM2
VGA
LAN2
LAN1
USB2/3
IPMI_LAN
USB0/1
JPME1
LAN
CTRL
BMC
CLK CTRL
JVR1
JVR2
JVRM_I2C2
JVRM_I2C1
PCH
JSD1
I-SATA3
I-SATA4
I-SATA5
SCU1
SCU2
SCU3
S-SGPIO1
FAN3
JPW5
JPI2C1
+
:OH LED
JPME2
CPU1
CPU2
E
Warning: To avoid damaging your motherboard
and components, please use a power supply that
supports a 24-pin, two 4-pin and two 8-pin power
connectors. Be sure to connect the 24-pin and
the 8-pin power connectors to your power supply
for adequate power delivery to your system. The
4-pin power connectors are optional; however,
Supermicro recommends that these connectors
also be plugged in for optimal power delivery.

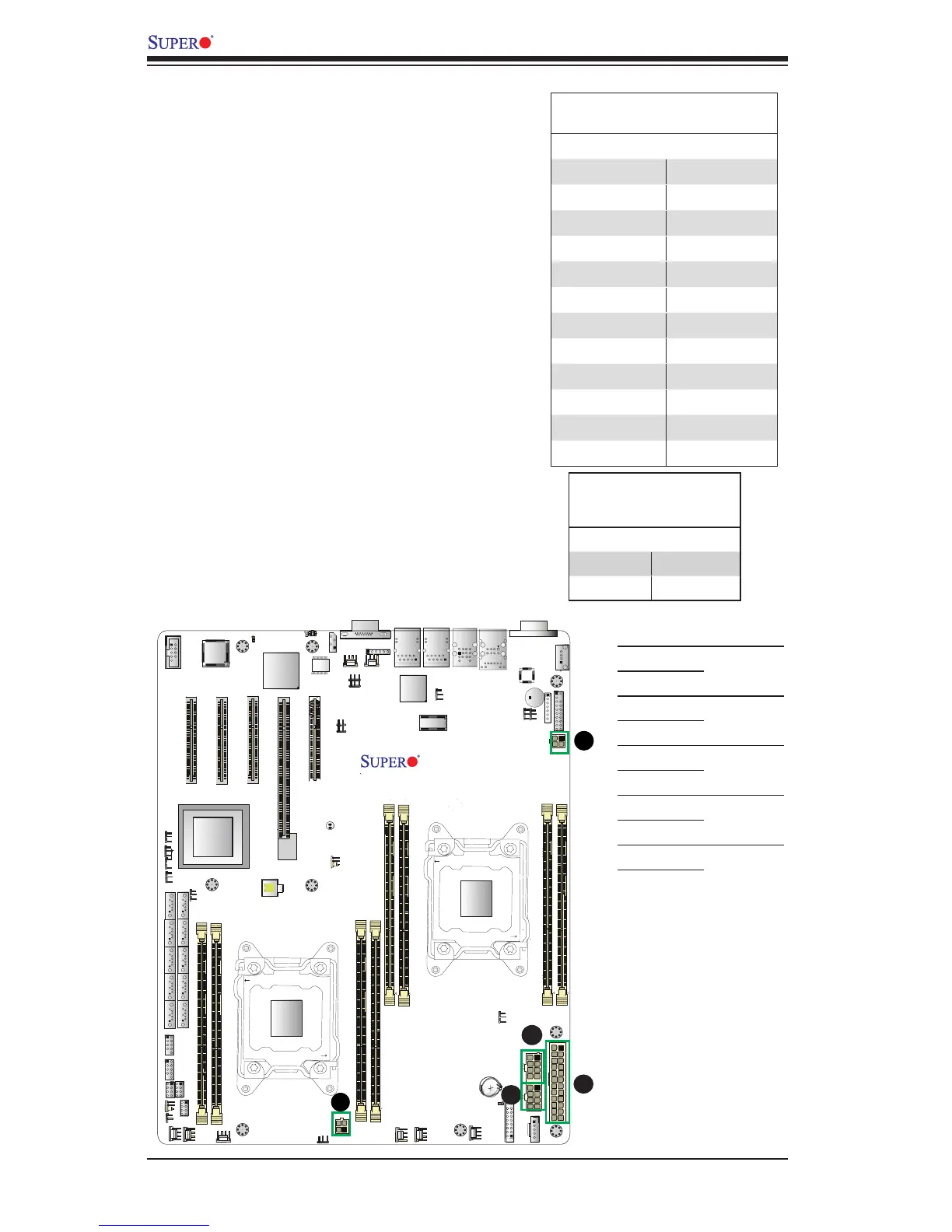

2-7 Connecting Cables
Power Connectors
A 24-pin main power supply connector(JPW1),
two 8-pin CPU power connectors (JPW2/3)
and two 4-pin power connectors (JPW4/5) are
located on the motherboard. These power con-
nectors meet the SSI EPS 12V specication
and must be connected to your power supply to
provide adequate power to the system. See the
table on the right for pin denitions.
ATX Power 24-pin Connector
PinDenitions
Pin# Denition Pin # Denition
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 COM 3 COM
16 PS_ON 4 +5V
17 COM 5 COM
18 COM 6 +5V
19 COM 7 COM
20 Res (NC) 8 PWR_OK
21 +5V 9 5VSB
22 +5V 10 +12V
23 +5V 11 +12V
24 COM 12 +3.3V
12V 8-pin PWR Con-
nector
PinDenitions
Pins Denition
1 through 4 Ground
5 through 8 +12V
A. JPW1: 24-pin ATX
PWR (Req'd)
B. JPW2: 8-pin Processor
PWR (Req'd)
C. JPW3: 8-pin Processor
PWR (Req'd)
D. JPW4: 4-pin Processor
PWR (Req'd)
E. JPW5: 4-pin Processor
PWR (Req'd)
A
B
C
(Required)
D
