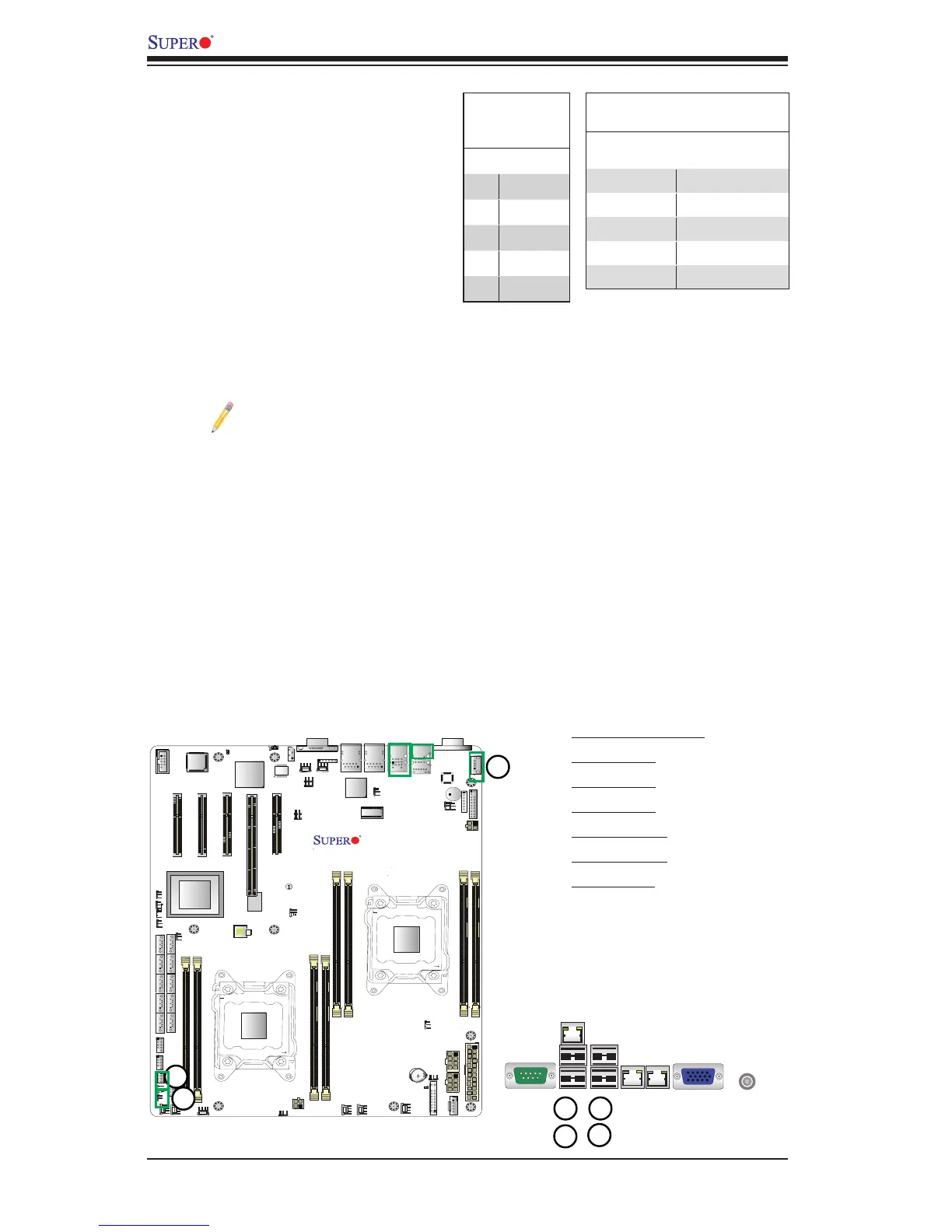

X9DRD-iF/LF Motherboard User’s Manual
Note 1: X9DRD-iF has the
front-accessible USB 4/5
and USB 8/9. X9DRD-LF
only has USB 4/5.
Note 2: X9DRD-iF has the
backpanel USB 0/1 and USB
2/3. X9DRD-LF only has the
backpanel USB 0/1.
F1
BMC CTRL
LAN CTRL
BIOS
FP CTRL
A1
COM1
1.10Rev.
X9DRD-iF
JBT1
LED2
LEDM1
LED3
JIPMB1
JD1
JUIDB
JPW4
SP1
JSTBY1
JRK1
JPW3
JPW2
JPW1
JBAT1
JL1
JOH1
JI2C2
JI2C1
JWD1
JPG1
JPB1
JPL1
FAN4
FAN5
FAN6
FAN2
FAN1
FAN8
FAN7
T-SGPIO2
T-SGPIO1
SCU0
I-SATA2
I-SATA1
I-SATA0
JF1
JTPM1
G1
H1
E1
C1
D1
USB6
USB4/5
USB8/9
CPU1
CPU1
SLOT7 PCI-E 3.0 X8
CPU2
CPU2
CPU1
B1
SLOT4 PCI-E 3.0 X8
SLOT3 PCI-E 3.0 X8
SLOT5 PCI-E 3.0 X8
SLOT6 PCI-E 3.0 X16
COM2
VGA
LAN2
LAN1
USB2/3
IPMI_LAN
USB0/1
JPME1
LAN
CTRL
BMC
CLK CTRL
JVR1
JVR2
JVRM_I2C2
JVRM_I2C1
PCH
JSD1
I-SATA3
I-SATA4
I-SATA5
SCU1
SCU2
SCU3
S-SGPIO1
FAN3
JPW5
JPI2C1
+
:OH LED
JPME2
CPU1
CPU2
1. Backpanel USB 0
2. BP USB 1
3. BP USB 2
4. BP USB 3
5. FP USB 4/5
6. FP USB 8/9
7. FP USB 6
Universal Serial Bus (USB)
Four Universal Serial Bus ports (USB
0/1, USB 2/3) are located on the I/O
back panel. In addition, three USB
headers, located close to the IO Hub,
provides four front-accessible USB
connections (USB 4/5, USB 8/9).
One Type A connector (USB6) also
supports front panel USB connection.
(Cables are not included). See the
tables on the right for pin denitions.
FP USB (4/5, 8/9, USB 6)
PinDenitions
USB 4, 8, 6,
Pin # Denition
USB 5, 9
Pin # Denition
1 +5V 1 +5V
2 PO- 2 PO-
3 PO+ 3 PO+
4 Ground 4 Ground
5 NC 5 Key
(NC= No connection)
Backplane
USB (0/1, 2/3)
PinDenitions
Pin# Denition
1 +5V
2 PO-
3 PO+
4 Ground
5 NA
1
2
3
4
5
6
7
