Supero Super X8DTL-3 User Manual

Chapter 2: Installation
2-17
Power Button
OH/Fan Fail LED
1
NIC1 LED
Reset Button
2
Power Fail LED
HDD LED
Power LED
Reset
PWR
Vcc
Vcc
Vcc
Vcc/Front UID LED
Ground
Ground
1920
Vcc
X
Ground
NMI
X
Vcc
NIC2 LED
Power LED

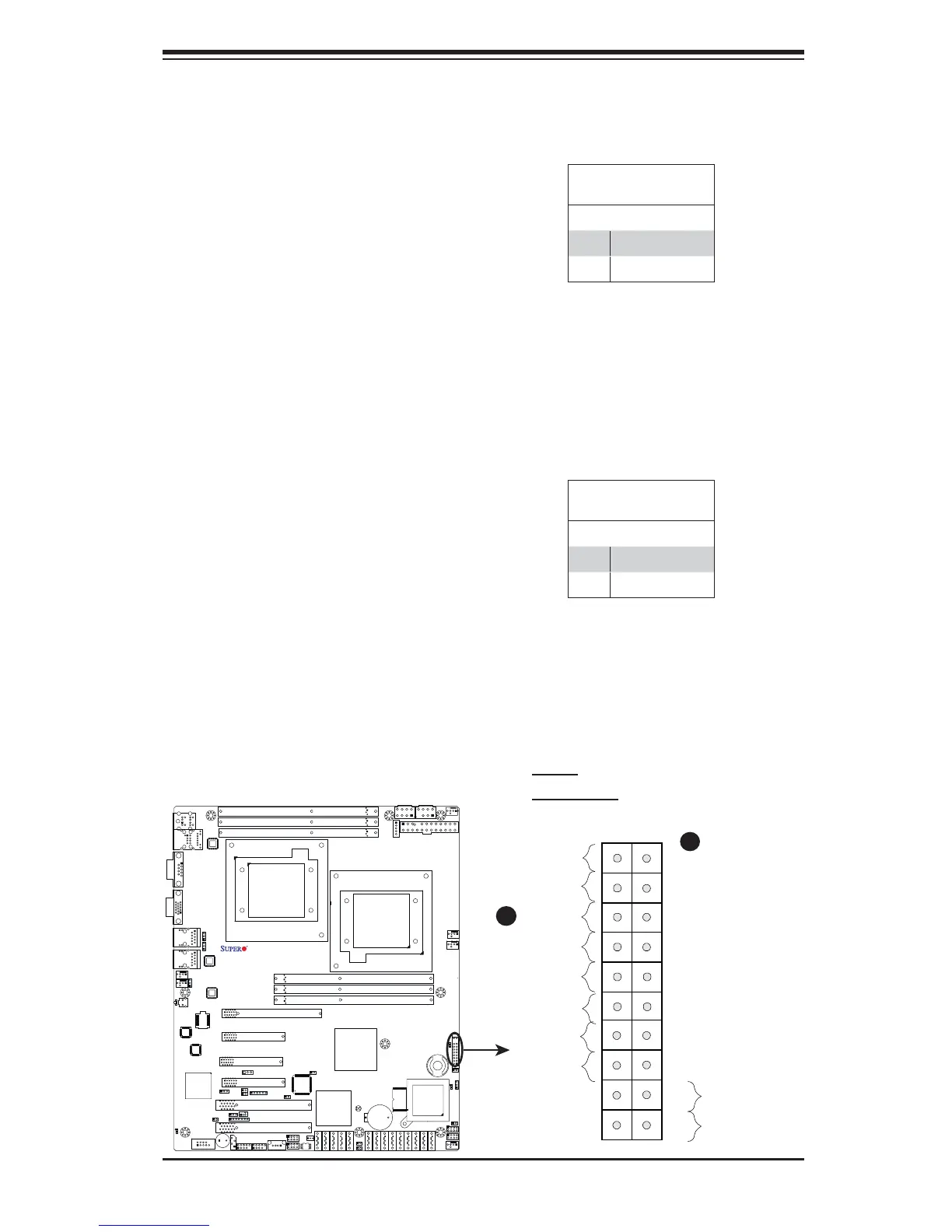

The Power LED connection is located
on pins 15 and 16 of JF1. Refer to the
table on the right for pin defi nitions.
NMI Button
The non-maskable interrupt button
header is located on pins 19 and 20
of JF1. Refer to the table on the right
for pin defi nitions.
NMI Button
Pin Defi nitions (JF1)
Pin# Defi nition
19 Control
20 Ground
Power LED
Pin Defi nitions (JF1)
Pin# Defi nition
15 +5V
16 Ground
3. Front Control Panel Pin Defi nitions
A. NMI
B. PWR LED
A
B
X8DTL Series
Rev. 2.01

Supero Super X8DTL-3 Specifications

General

Form Factor	ATX
Socket Type	LGA 1366
CPU	Dual Intel Xeon 5500/5600 series
Chipset	Intel 5520
Supported Memory Types	DDR3 800/1066/1333 MHz ECC Registered
Storage Interface	6 x SATA 3Gb/s
USB Ports	6 x USB 2.0
Onboard LAN	Dual Gigabit Ethernet
RAID Support	RAID 0, 1, 5, 10
