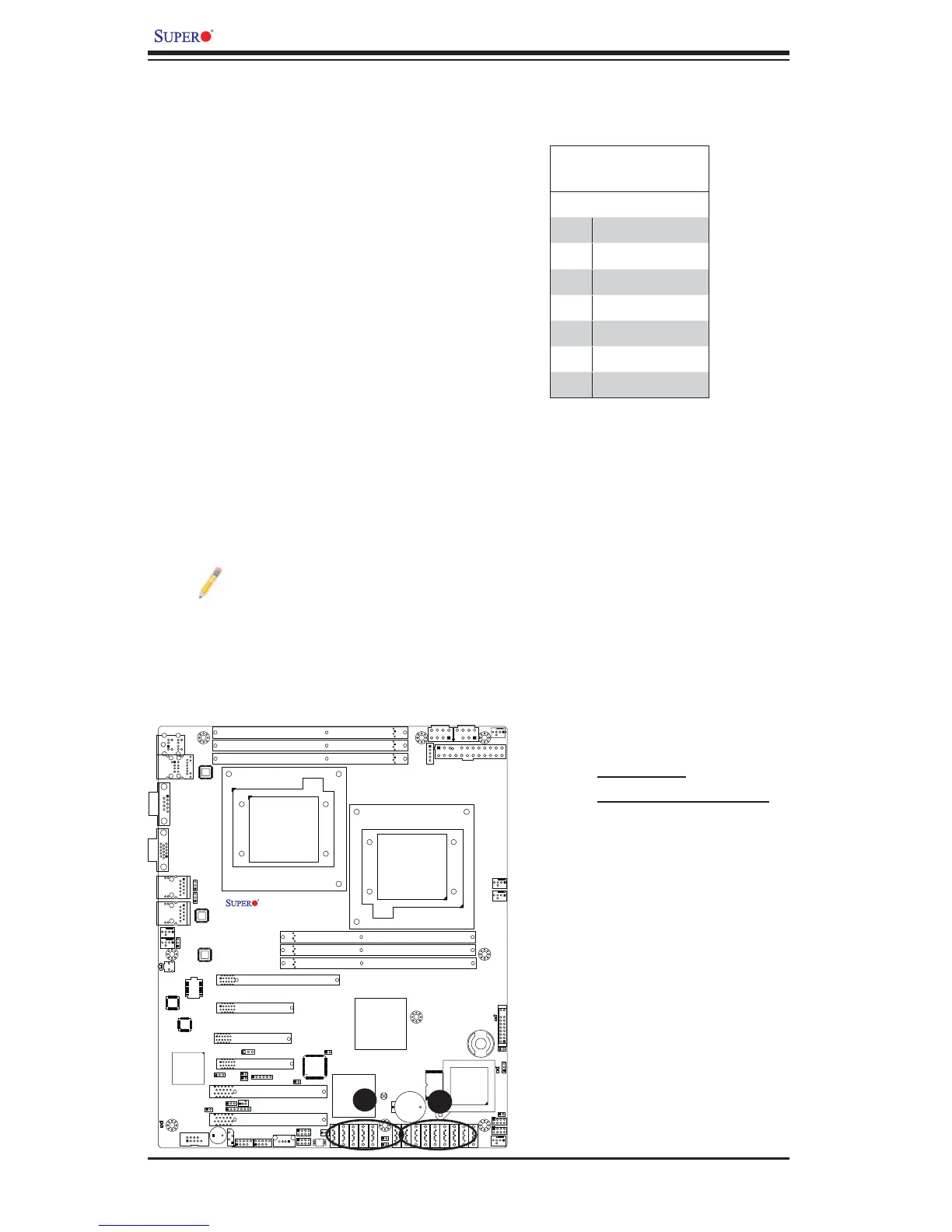

2-36
X8DTL-3/X8DTL-i/X8DTL-3F/X8DTL-iF User's Manual
JPW3
JPW2
JBT1
JPI2C
COM1
I-SATA0
I-Button
JPS1
JWD
JPL2
JPL1
JF1
SP1
1
JWOL
LE1
D20
JBAT1
JP3
JL1
JPS2
JOH1
JPB
JP5
J16
JD1
CPU1 FAN
Slot3 PCI-E 1.0 x4
7HG
5ADG
7TN100C
W8379
W8352
Slot6 PCI-E 2.0 x8 (in x16 Slot)
JI2C2
SAS6
SAS5
SAS4
SAS3
SAS2
SAS1
Slot4 PCI-E 2.0 x8
BMC CTRL
WPCM450-R
LC4128ZE-
ICH10R
(South Bridge)
5500
(North Bridge)
LES2
P1-DIMM3A
P1-DIMM1A
P2-DIMM3A
P1-DIMM2A
P2-DIMM2A
P2-DIMM1A
KB/Mouse
USB0/1
VGA
LAN1
UID
LE2
Slot2 PCI 33MHz
Slot1 PCI 33MHz
COM2
IPMB
USB4/5
USB6
T-SGPIO2
USB2/3
I-SATA5
T-SGPIO1
I-SATA3
I-SATA2
I-SATA4
I-SATA1
3-SGPIO2
3-SGPIO1
LSI SAS1068E
SAS0
FAN5
FAN4
FAN6
FAN1/
CPU2
LAN2
IPMI LAN
LAN
CTRL
SAS7
JI2C1
LAN
CTRL
PHY
Chip
CPU1
Intel
Intel
JPW1
CPU2FAN
FAN2/
BIOS
Slot5 PCI-E 2.0 x4 (in x8 Slot)
X8DTL Series
Flash ROM
BMC
Battery
Buzzer
1
FAN3
JPG1
(in x8 Slot)
Rev. 2.01
JWOR
JWF1
Serial ATA
Pin De nitions
Pin# De nition
1 Ground
2 TX_P
3 TX_N
4 Ground
5 RX_N
6 RX_P
7 Ground
A. I-SATA0~5
B.SAS 0~7 (X8DTL-3/-3F)
Serial ATA Ports
There are Six Serial ATA Ports (I-
SATA0~I-SATA 5) located on the
motherboard. These ports provide
serial-link signal connections, which
are faster than the connections of
Parallel ATA. See the table on the
right for pin de nitions.
SAS Ports (X8DTL-3/X8DTL-3F
only)
SAS Ports 0~7 provide SAS (Serial-
Attached SCSI) connections on the
X8DTL-3/X8DTL-3F. See the layout
below for SAS port locations.
Note 1: For more information on SATA HostRAID con guration, please
refer to the Intel SATA HostRAID User's Guide posted on our website @
http://www.supermicro.com/support/manuals/.
Note 2: For more information on LSI SAS RAID con guration, please
refer to the LSI MegaRAID User's Guide posted on our website @ http://
www.supermicro.com/support/manuals/.
2-9 Serial ATA and SAS Connections
