Supero X10SRi-F User Manual

Chapter 2: Installation
2-27
DESIGNED IN USA
1.01REV:
X10SRi-F
JP3
JTPM1
JF1
JD1
J23
T-SGPIO1
T-SGPIO2
T-SGPIO3
JOH1
JL1
JPME2
JWD1
JPG1
JPB1
1
JI2C2 JI2C1
JBR1
JVRM2
JVRM1
JPL1
JSD1
JSD2
JIPMB1
JPWR1
JUIDB1
LE1
LE2
LEDM1
JBT1
BT1
FAN4
FAN1
FAN2
FAN3
FANA
FAN5
J24
JPI2C1
JSTBY1
S-SATA3
I-SATA4
I-SATA0
I-SATA1
I-SATA2
I-SATA3
S-SATA0
S-SATA1
S-SATA2
I-SATA5
SP1
1-2:ENABLE
2-3:DISABLE
JPB1:BMC
CPU
CPU SLOT5 PCI-E 3.0 X4(IN X8)
CPU SLOT4 PCI-E 3.0 X8
CPU SLOT3 PCI-E 3.0 X8
JPME2
2-3:ME MANUFACTURUNG MODE
1-2:Normal
USB0/1
DIMMC2
PWR LED1-3:
JD1:
SPEAKER4-7:
JBR1
1-2:Normal
2-3:BIOS recovery
:TPM/PRO80
USB8/9
USB6/7
LED
NMI
PWR
X
USB2/3
(3.0)
HDD
NIC
1
JWD1:Watch Dog
1-2:RST
2-3:NMI
LAN1
DIMMA2 DIMMA1
USB10(3.0)
FF
2
NIC
OH
LAN2
RST
PWR
PWR
FAIL
USB4/5
ON
1-2:ENABLE
2-3:DISABLE
JPG1:VGA
JI2C1/JI2C2
I2C bus for PCI-E slot
OFF:DISABLE ON: ENABLE
PCH SLOT2 PCI-E 2.0 X4(IN X8)
PCH SLOT1 PCI-E 2.0 X2(IN X8)
COM2
COM1
DIMMB2 DIMMB1
PWR I2C
DIMMD2
DIMMD1
DIMMC1
IPMI_LAN
UID
USB11(3.0)
0N: POWER FORCE ON
JPL1:LAN1/2
1-2:ENABLE
VGA
2-3:DISABLE
LGA2011-3
1
1
CPU SLOT6 PCI-E 3.0 X16
BAR CODE
IPMI CODE
MAC CODE
BIOS
LICENSE
BIOS

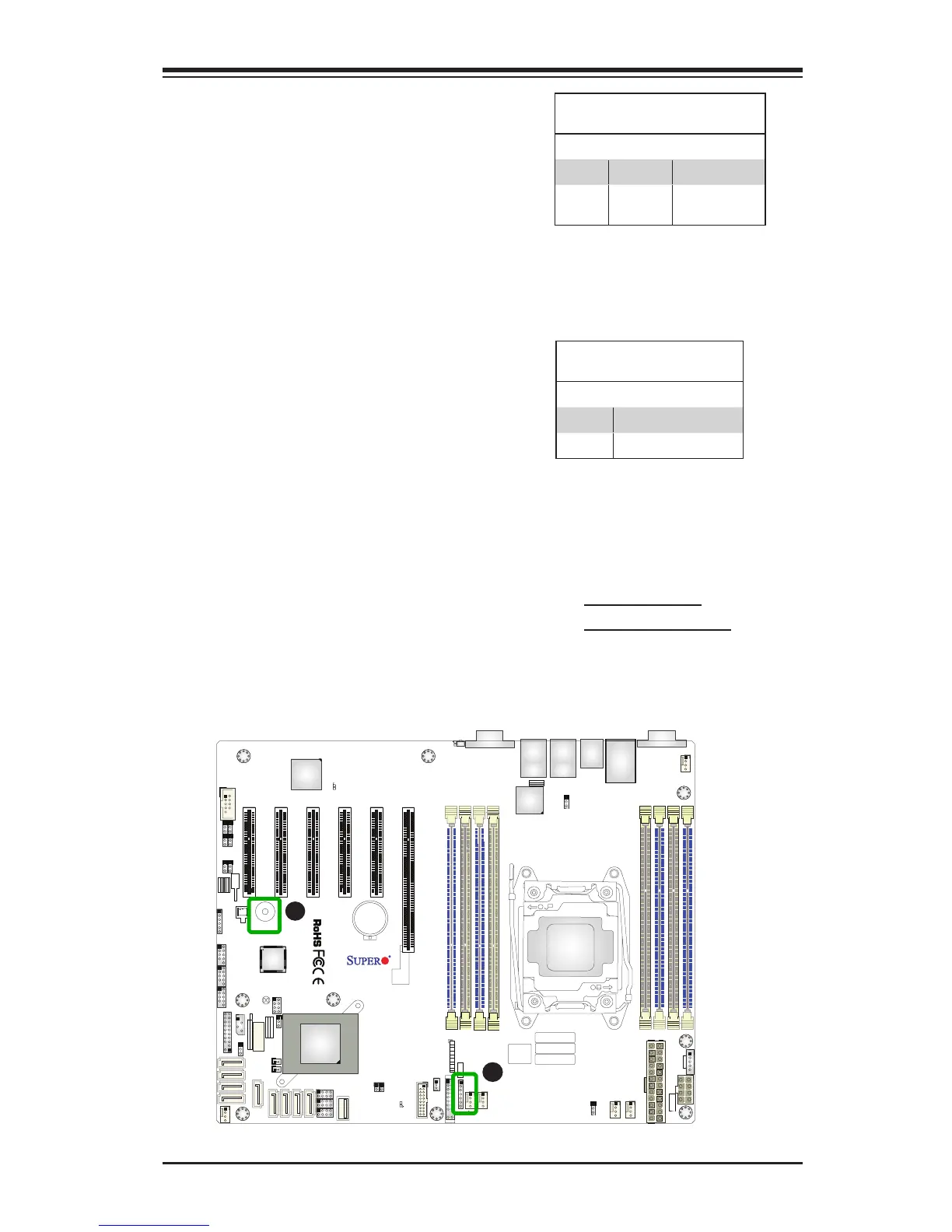

Internal Buzzer (SP1)
The Internal Buzzer (SP1) is used to
provide audible indications for various
beep codes. See the table on the right
for pin denitions.
A. Internal Buzzer
B. Onboard PWR LED
Internal Buzzer
Pin Denition
Pin# Denitions
1 Pos. (+) Beep In
2 Neg. (-) Alarm
Speaker
Speaker (JD1)
On the JD1 header, close pins 4~7
with a cap to use the onboard speaker.
Close pins 1~3 with a cap for the on-
board power LED. See the table on
the right for pin denitions.
Speaker Connector
Pin Denitions
Pin# Denition
1~3 Power LED
4~7 Speaker
A
B
