2-8 Jumper Settings

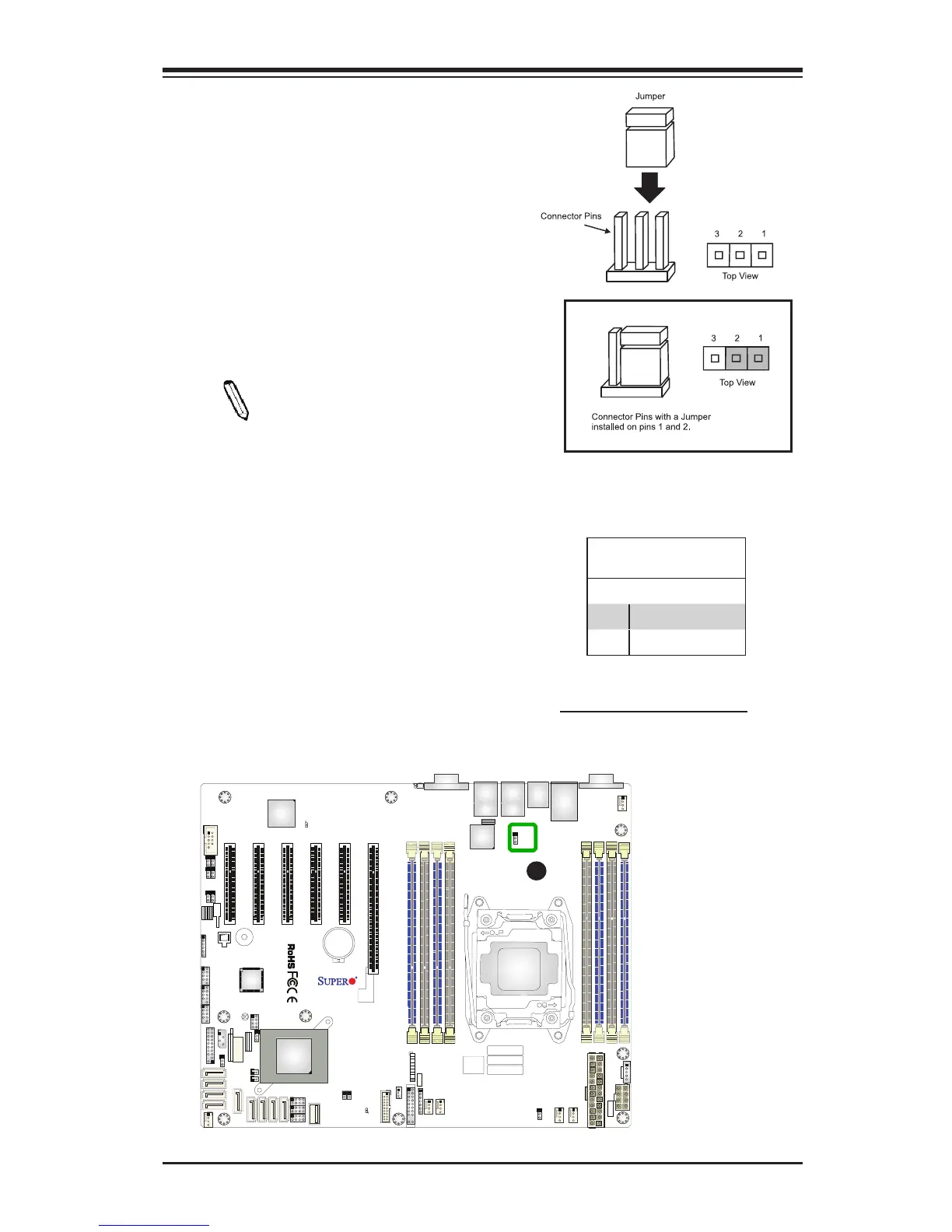

Explanation of Jumpers
To modify the operation of the mother-
board, jumpers can be used to choose
between optional settings. Jumpers create
shorts between two pins to change the
function of the connector. Pin 1 is identied
with a square solder pad on the printed
circuit board.
Note: On two-pin jumpers,
"Closed" means the jumper is on,
and "Open" means the jumper is
off the pins.
A. JPL1: LAN1/LAN2 Enable
LAN1/LAN2 Enable/Disable
Jumper JPL1 enables or disables LAN
ports 1/2 on the motherboard. See the
table on the right for jumper settings. The
default setting is enabled.
GLAN Enable
Jumper Settings
Pin# Denition
1-2 Enabled (default)
2-3 Disabled
