Control
10
Synchronization
Port
10, Synchronization Port– J9

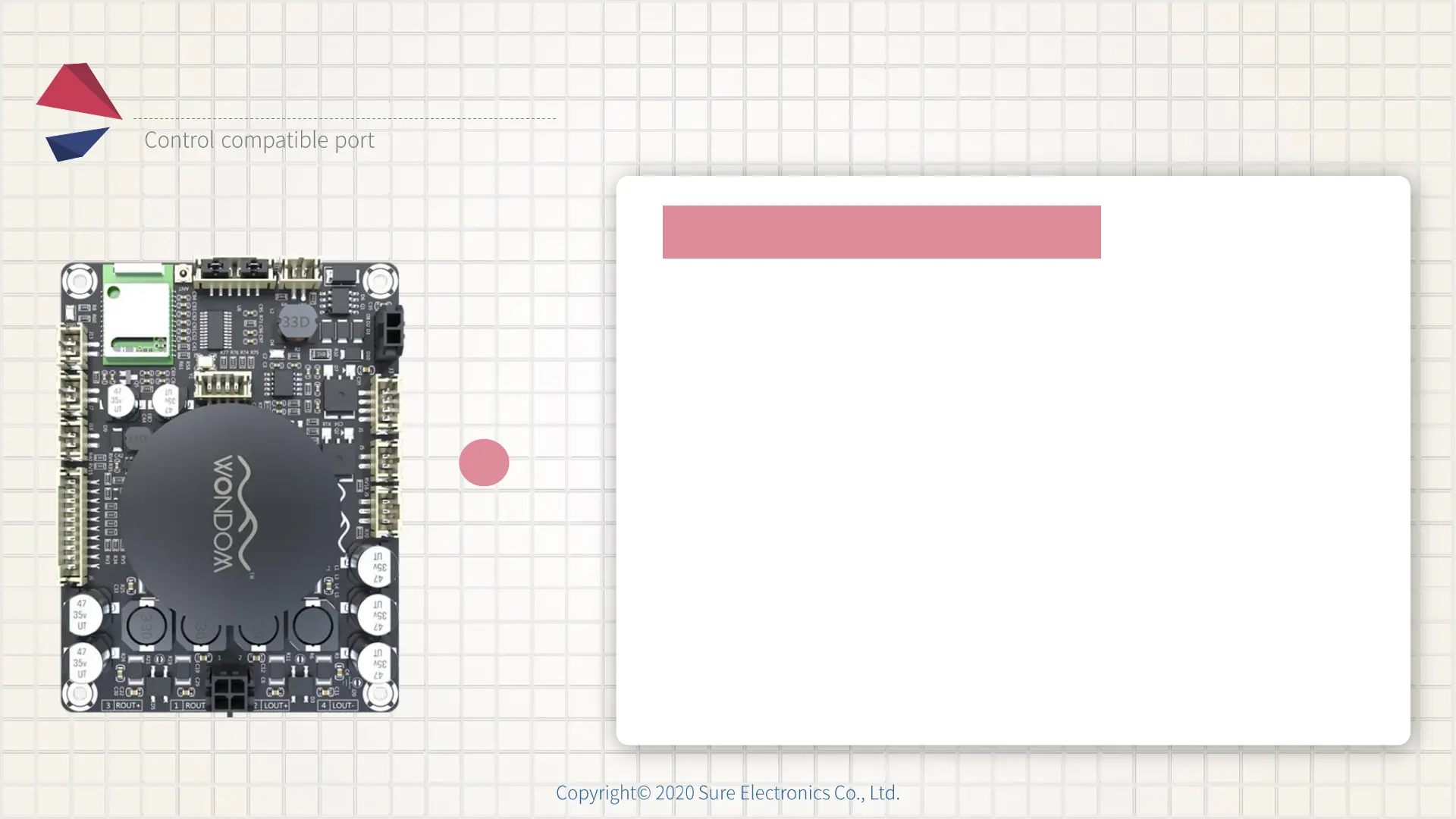

JAB2 supports connection with JAB3 to build audio 4.0 /
2.1 system.
In order to suppress and synchronize POP noise, JAB2 and
JAB3 need control connection to make sure the control
logic of two boards are consistent. Once connected, the
system built with JAB2 and JAB3 could be controlled and
synchronized by the shutdown control port(J5) of JAB2.
When JAB2 is used separately, leave J9 open.
