Audio Output
5

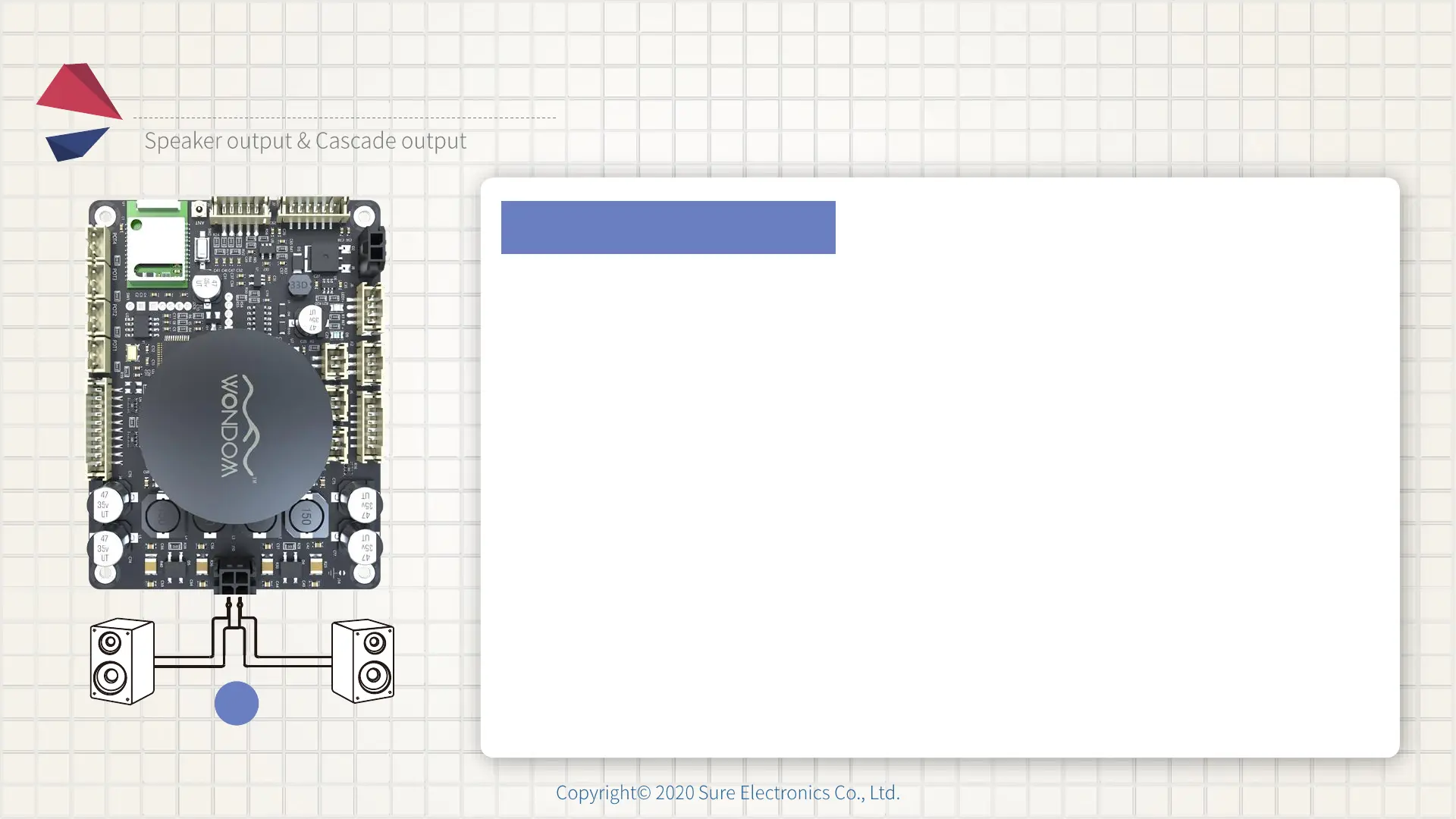

5, Speaker Output – J10
JAB3+ includes four models, 2 x 50W, 2 x 30W, 1 x 100W and 1 x 60W.
2 x 30W and 1 x 60W do not have the heatsink and their amplifier chip
is different from that of the 2 x 50W and 1 x 100W.
Speaker output connector is a Molex-MicroFit-4Pos-2x2 3mm.
Take care of the connector polarity definition, if connected incorrectly,
you might damage your speaker, cannot get sound output, or get
incorrect audio phase.
A speaker cable comes with JAB2+ in the package for easy connection.
J10
