Control
POT4
POT3
POT2
POT1
10
9, Potentiometers Control

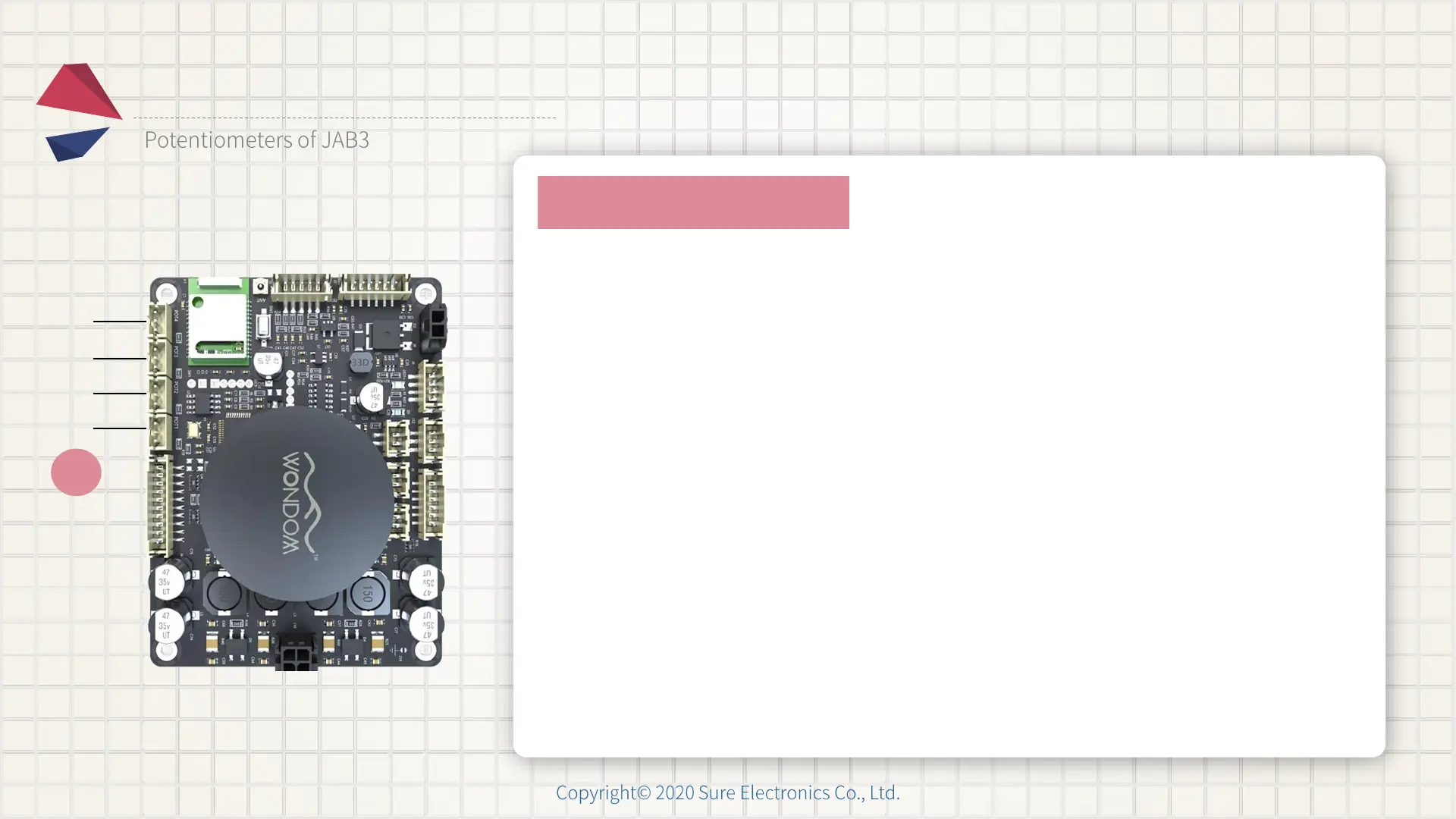

Four ports for external potentiometers are provided on JAB3+ for
hardware control of the whole system. You can find the cables
along with potentiometers in the Functional cables kit for JAB3+
(AA-JA11117).
POT4: Overall Volume
POT3: High-pass filter or Band-pass filter of power stage channel
POT2: High-pass filter of signal output channel
POT1: Gain of signal output channel
* As for the details, please refer to the datasheet.
