External LED Indicator

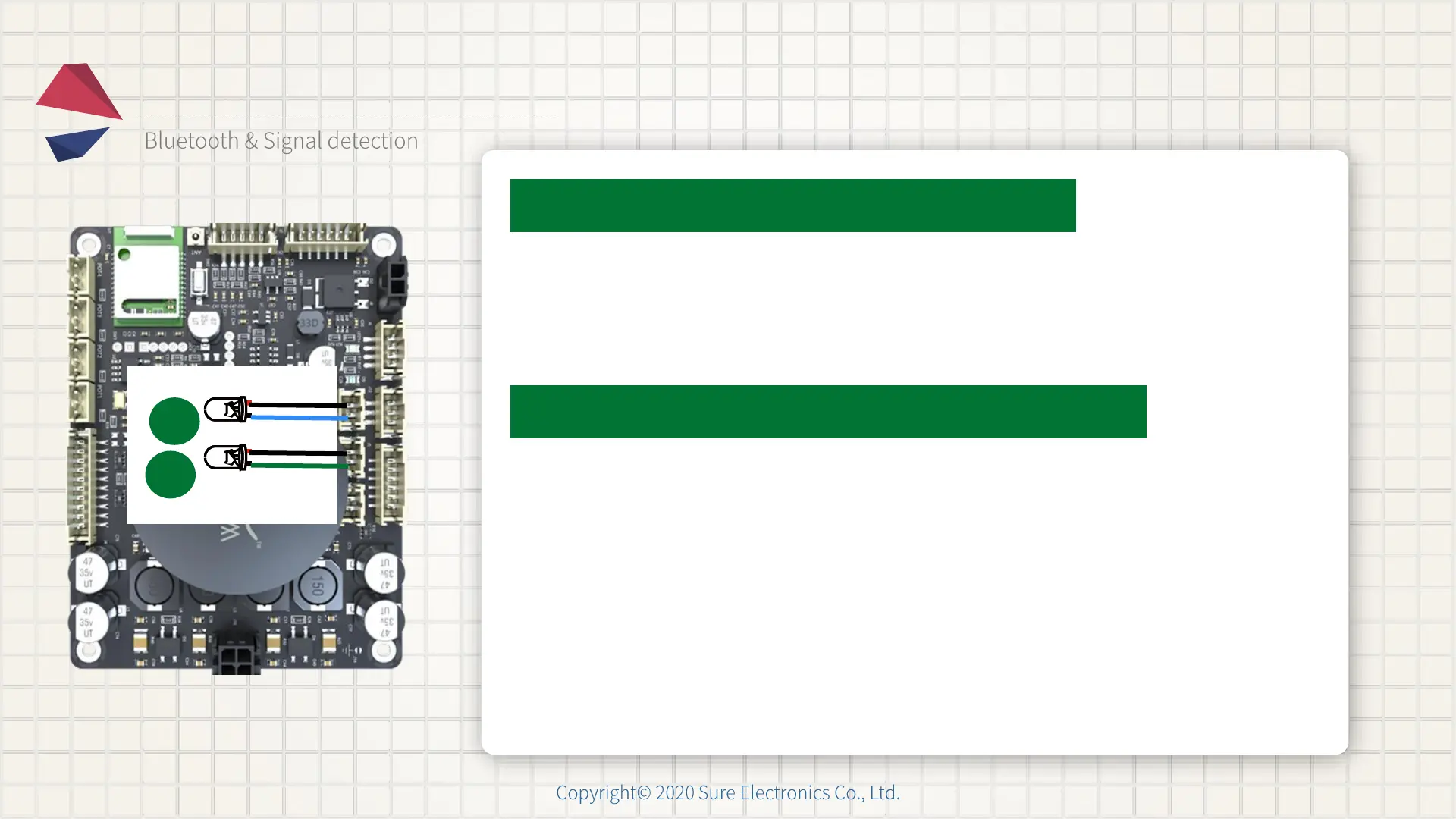

11, External Bluetooth LED indicator – J1
When Bluetooth is paired, the LED will be ON;
When Bluetooth is searching, the LED will BLINK.
12, External Signal Detection LED indicator – J11
Signal level sensor system is employed in JAB3+ for lower power
consumption. Therefore, JAB3+ provides an indicator for signal
detection.
When there is signal detected, the LED will be ON;
When there is no signal detected, the LED will be OFF.
