Interface Definition
In this document, we will mainly give instructions on the following applications:
1) How to achieve programming of APM2 / JAB3 with WONDOM ICP3
2) How to realize APP control of APM2 / JAB3 with WONDOM ICP3

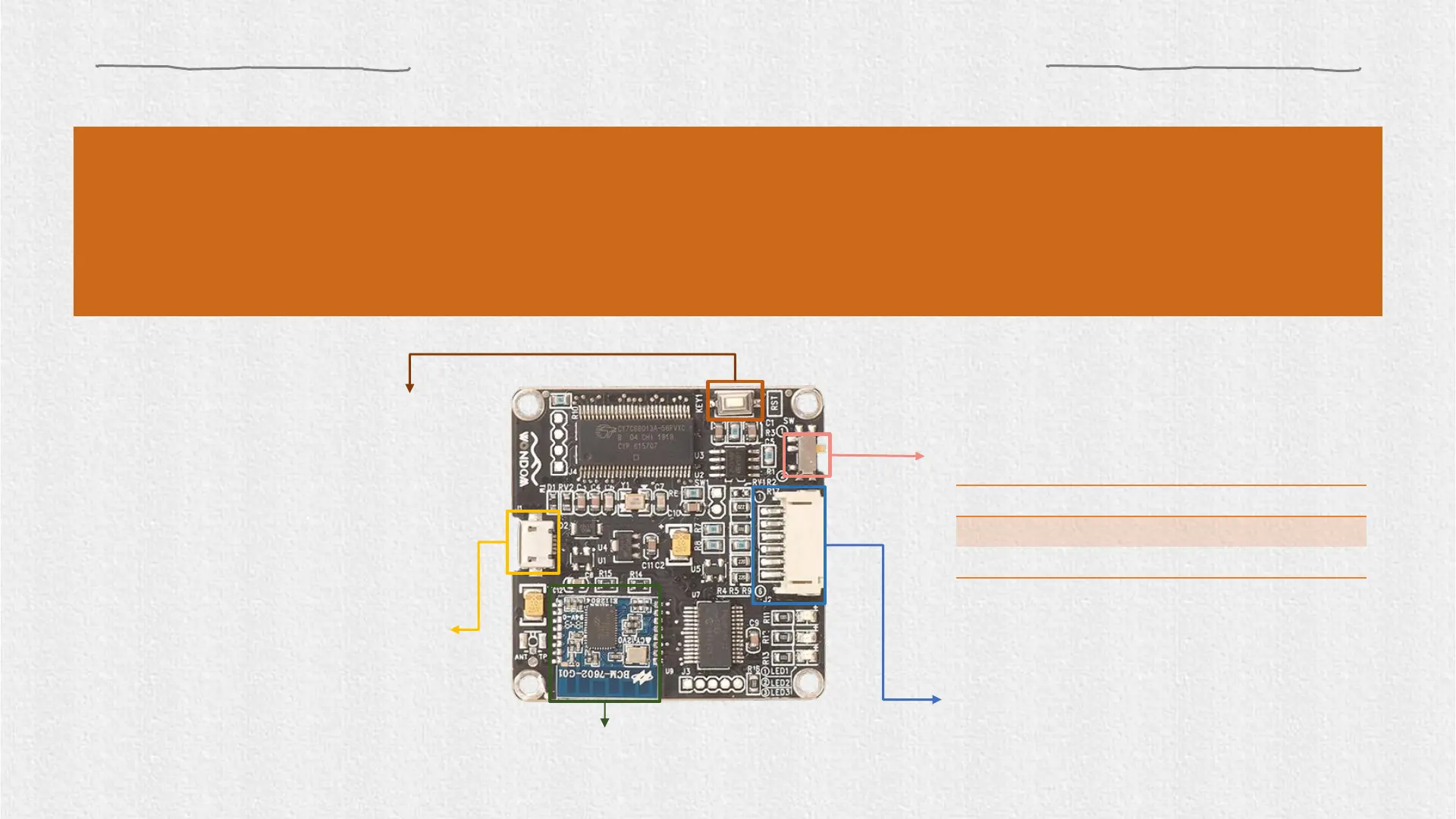

SW MODE FUNCTION
① PROGRAM Programming
② REMOTE APP Control
Micro USB Port
1) DC5V power supply
2) Communication with computer
Bluetooth BLE for communication with
APP (Miumax) to control audio system
SW
For switch between programming and
APP control functions
Programming Port
For connection with applicable
products with a 6-pin cable
KEY1
Reset
To Next Page
