2.1.3 Rear Panel

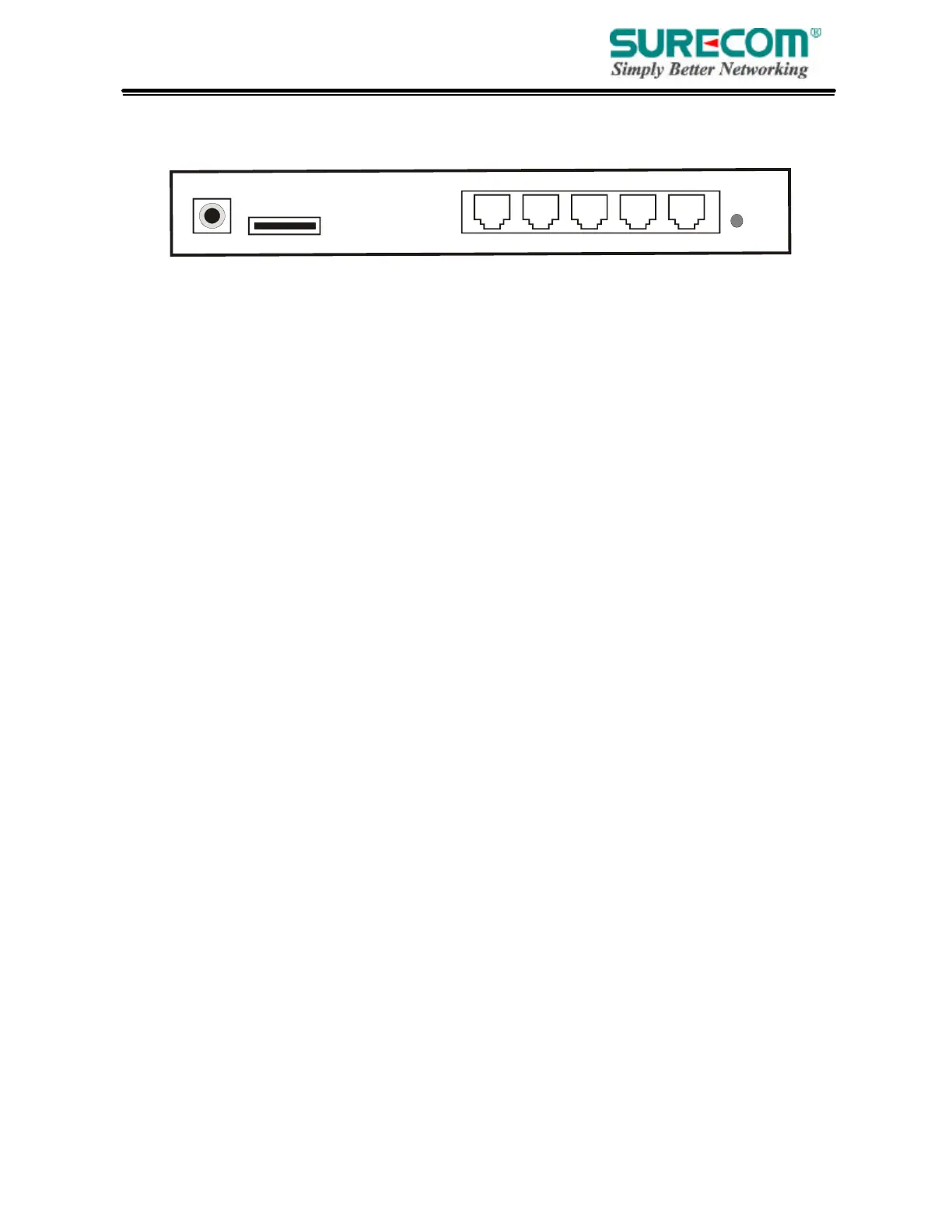

The following graphic shows the rear panel.
1
2
3
4
DC In
U
S
B
•
DC In: To connect the adapter to receive power.
•
USB: This is USB Printer Port to connect your USB printer via USB cable. Please note that “DO
NOT” connect any other USB devices except USB printer or the “Self-Power USB Hub” to the
USB port.
•
WAN: To connect the Cabel/DSL modem via Cat.5 RJ-45 cable.
•
LAN 1~4: To connect networked PC or uplink to Switch or Hub.
•
Reset: Pressing the Reset button for more than 3 seconds, the router will restore to factory default
setting. Please note that this should be done only when you had tried all the troubleshooting
options. Pressing the Reset button during operation may bring you into the risk of creating IP
address conflict between your PC and the router. In such a case, you may be compelled to reboot
your entire system.
2.2 Getting Started
Please refer to the following sections of this manual for additional information about setting up
a network.
2.2.1 System Requirement
Before you getting started, make sure that you meet the following requirements.
1. An Internet connection through a cable or DSL modem
2. A computer with an Ethernet network card installed
3. Your Windows CD, if your computer is running Windows 95, 98, or ME
4. UTP network cable with RJ-45 connector
5. Either Microsoft Internet Explorer 4.0 (or above version) or Netscape Navigator 4.0 (or above
version)
2.2.2 Before Installation
Before you start to connect your router to any network device, make sure you get the following values
from your ISP. You will need those values to setup the Router and configure you networked PCs to
accept the IP address the Router chooses to assign them.
•
PPPoE User Name and Password or Fixed Internet IP Address assigned by your local ISP
•
Your Subnet Mask
•
Your Default Gateway
