11
•
Your Primary DNS IP address
You are supposed to have all those information mentioned above from your ISP. If not, contact your
ISP and they will be able to supply all the information you need.
2.2.3 Setting Hardware Connection
Follow the steps listed below to install your Router when you have all the information mentioned
above on hand.
Step 1. Power all devices down.
This should include your PCs, Cable or DSL modem and the Router.

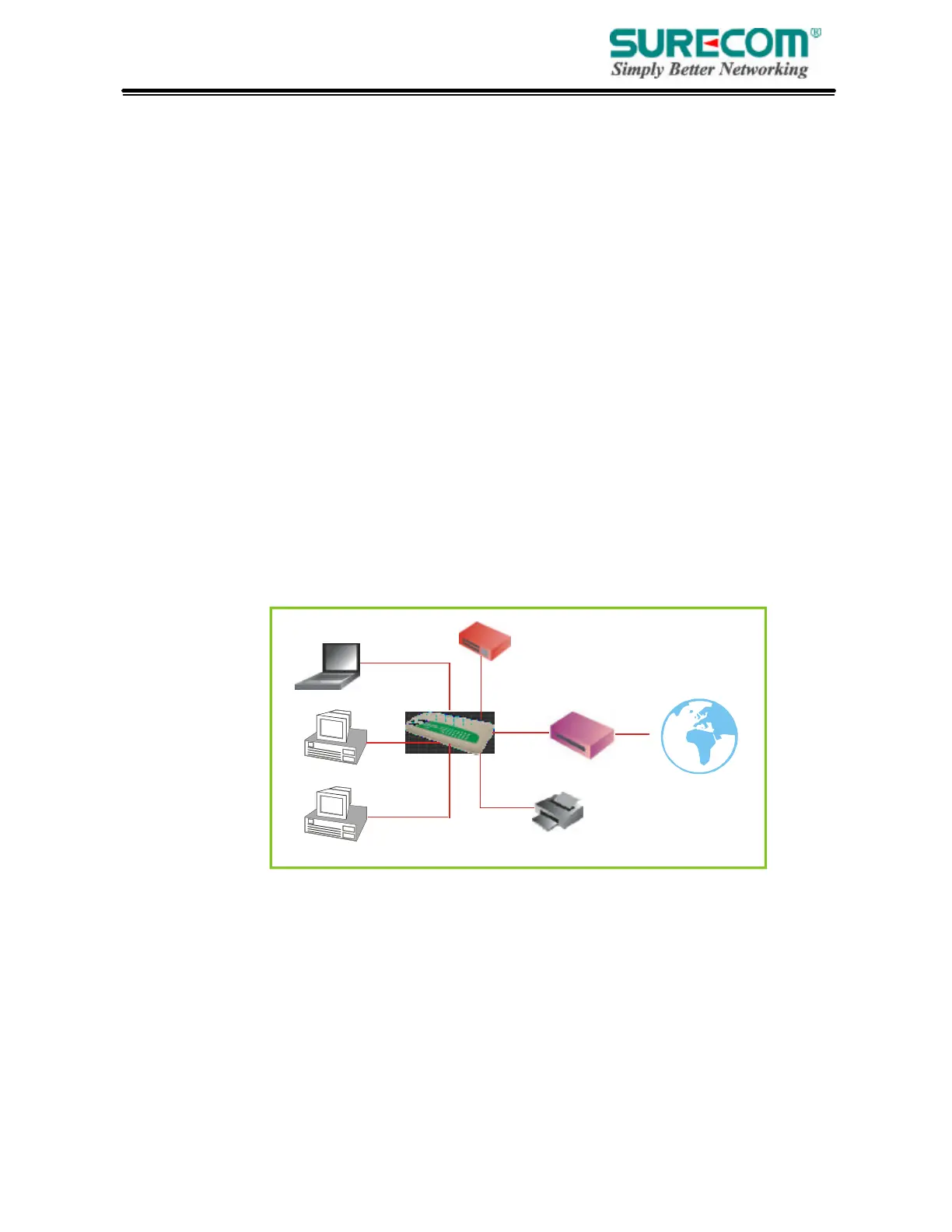

Step 2. Connect the Router to your PCs.
Connecting Computers: Connect computers directly to the Router on ports 1~4 on the
rear panel. If you have more than 4 computers need to be connected, connect a hub or a switch (using its
uplink port) and connect additional computers to that device.
Step 3. Connecting a Cable Modem or DSL Modem: Connect your Cable or DSL modem to the
WAN port on the rear panel.
Step 4. Connecting a Printer: If you have a printer that you want to share between computers,
connect it to the Printer port using a standard USB Cable.
Step. 5 Power: Plug the power cord into the power jack. And power on computers.
PC
PC
Notebook
4904SX/AX
USB Printer
Cable/DSL
Modem
Switch/Hub
To Next Page
