Surecom EP-816DX-FW User Manual

24

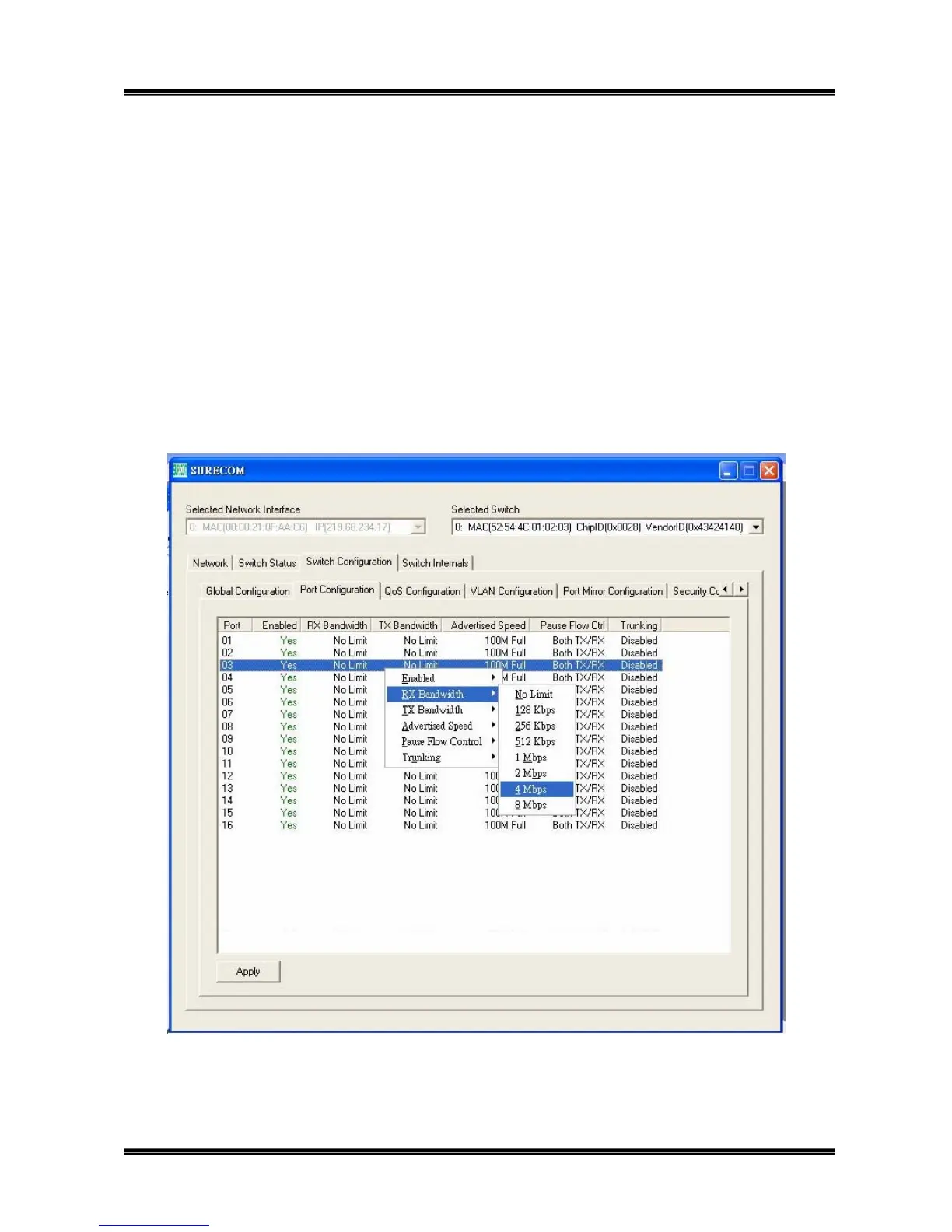

3.5.2 Port Configuration:
The port configuration includes the configuration of each port.
(1) Enable or disable the port.
(2) RX/TX Bandwidth: Control the port ‘s RX/TX bandwidth, RTL 8324 Provide many kinds of
option to limit the bandwidth of each port: No limit, 128 Kbps, 256Kbps, 512Kbps, 1Mbps,
2Mbps, 4 Mbps, 8 Mbps.
(3) Advertised Speed: 100 or 10 M Speed , Full or Half duplex.
(4) Pause Flow Control: You can choose “No Flow Control” or “Both TX/RX Flow Control” two
options.
(5) Trunking: Enable the trunk port function. Each “Trunking Group” includes four ports as trunk.

Surecom EP-816DX-FW Specifications

General

MAC Address Table	8K
Jumbo Frame	9K
Standards	IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x
Operating Temperature	0°C to 40°C
Storage Temperature	70°C
