3-2

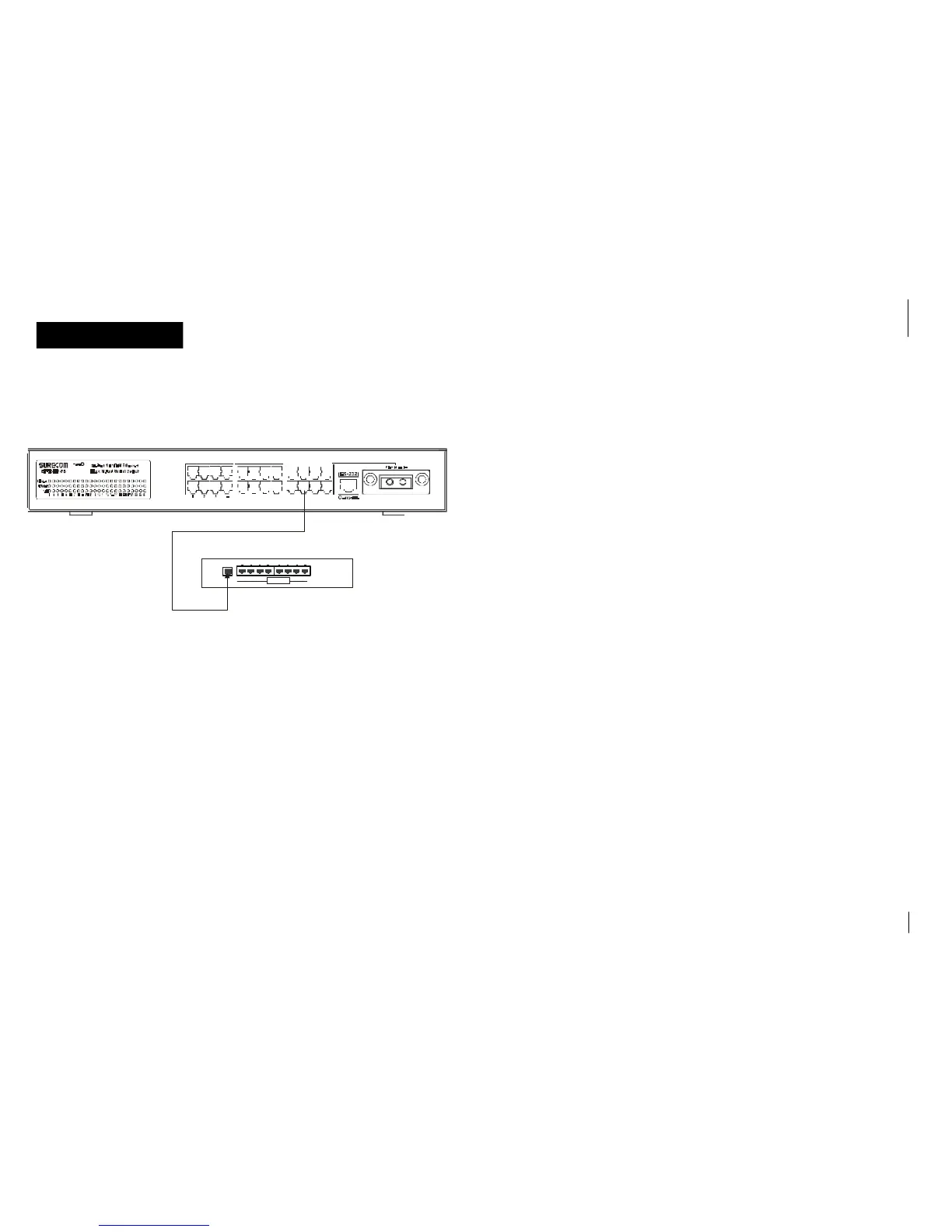

Switch to Hub
(10BASE-T Hub)
The Link/Act LED will light
The FDX/Col LED will be unlighted
The 100 LED will be unlighted
(100BASE-TX Hub)
The Link/Act LED will light
The FDX/Col LED will be unlighted
The 100 will light
Hub
100/10M
You can connect any RJ-45 station port on the Switch to the Uplink port of a Hub via
straight cable with RJ-45 plugs at both ends. Use Category 3, 4 or 5 cable for standard
10Mbps Ethernet connections, or Category 5 cable for 100Mbps Fast Ethernet
connections.
When a attached 10BASE-T/100BASE-TX Hub is powered on or reset:
