Surefire PumpRight PR17 - Page 68

396-3815Y1 SureFire PumpRight for Raven RCM 62 Revised 12/04/2019

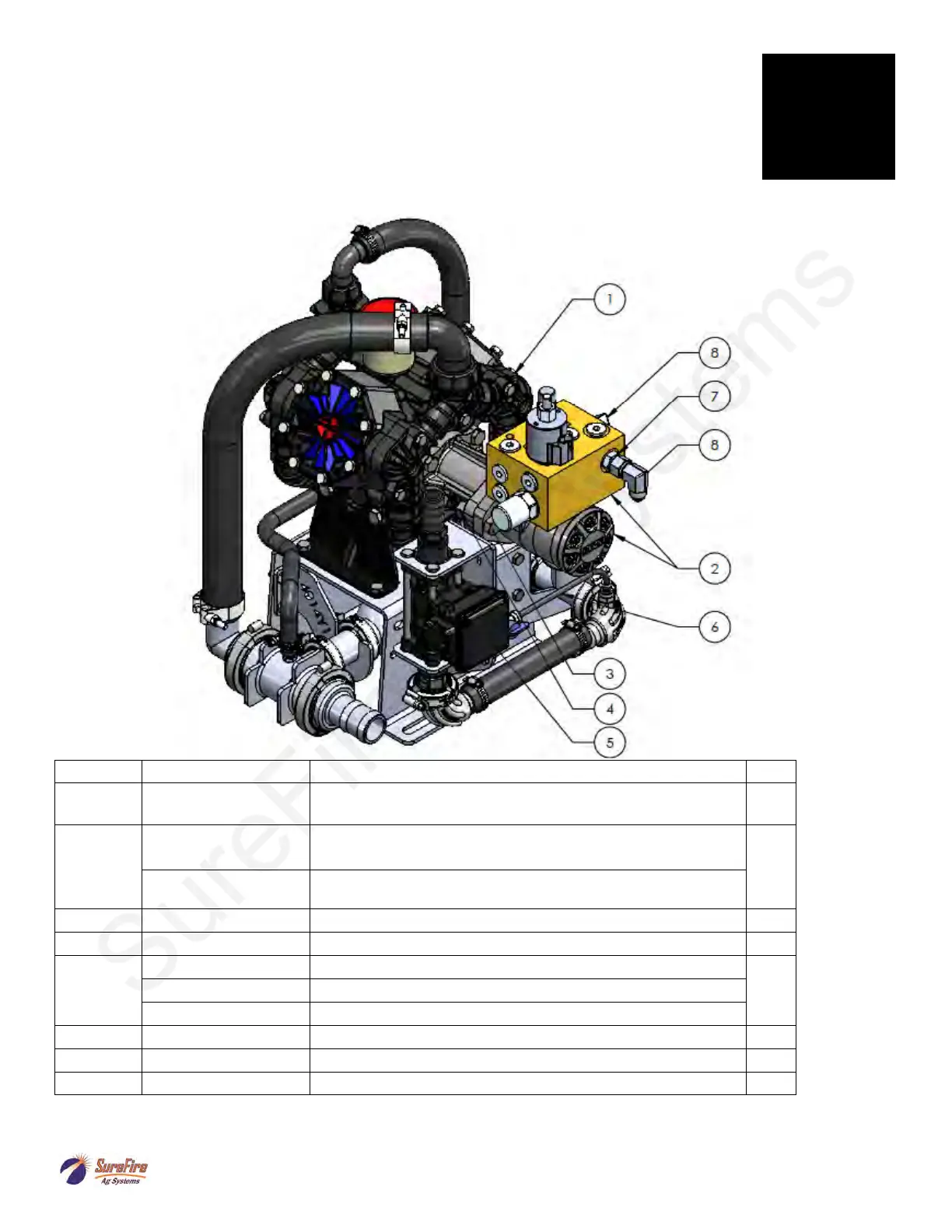

PR17 Assembly and Part Breakdowns
H
Maintenance
& Parts
Complete PR17 Pump Assembly w/ Hydraulic
Motor and PWM Valve
Kit: 500-01-4700
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 500-40-200017
PR17 Pre-Build Assembly (Minus Flowmeter and Hy-
draulics)
1
2
164-FTA1609
4.0 CID Hydraulic Motor with PWM Valve, Speed Sen-
sor,and Bypass Valve, CW Rotation
1
164-FTA0994
4.0 CID Hydraulic Motor with PWM Valve and Bypass
Valve, CW Rotation
3 300-080200-5 1/2" x 2" G5 Bolt 2
4 321-08 1/2" Nylock Nut 2
5
500-02-2082 EMag PR17 Flowmeter Kit (.13 - 2.6 GPM) - 1" HB
1 500-02-2085 EMag PR17 Flowmeter Kit (.3 - 5 GPM) - 1" HB
500-02-2090 EMag PR17/PR30 Flowmeter Kit (.6 - 13 GPM) - 1" HB
6 521-00-100250 Pump Priming and Air Bleed Assembly 1
7 161-01-8MB-8MJ Adapter - #8 male O-Ring Boss to #8 male JIC 1
8 161-02-8MJ-8FJX-90 Elbow - #8 female JIC to #8 male JIC - 90 2
See Page 63
See Page 92
See Page 65
