Surefire PumpRight PR17 - Page 69

396-3815Y1 SureFire PumpRight for Raven RCM 63 Revised 12/04/2019
PR17 Assembly and Part Breakdowns
H
Maintenance
& Parts

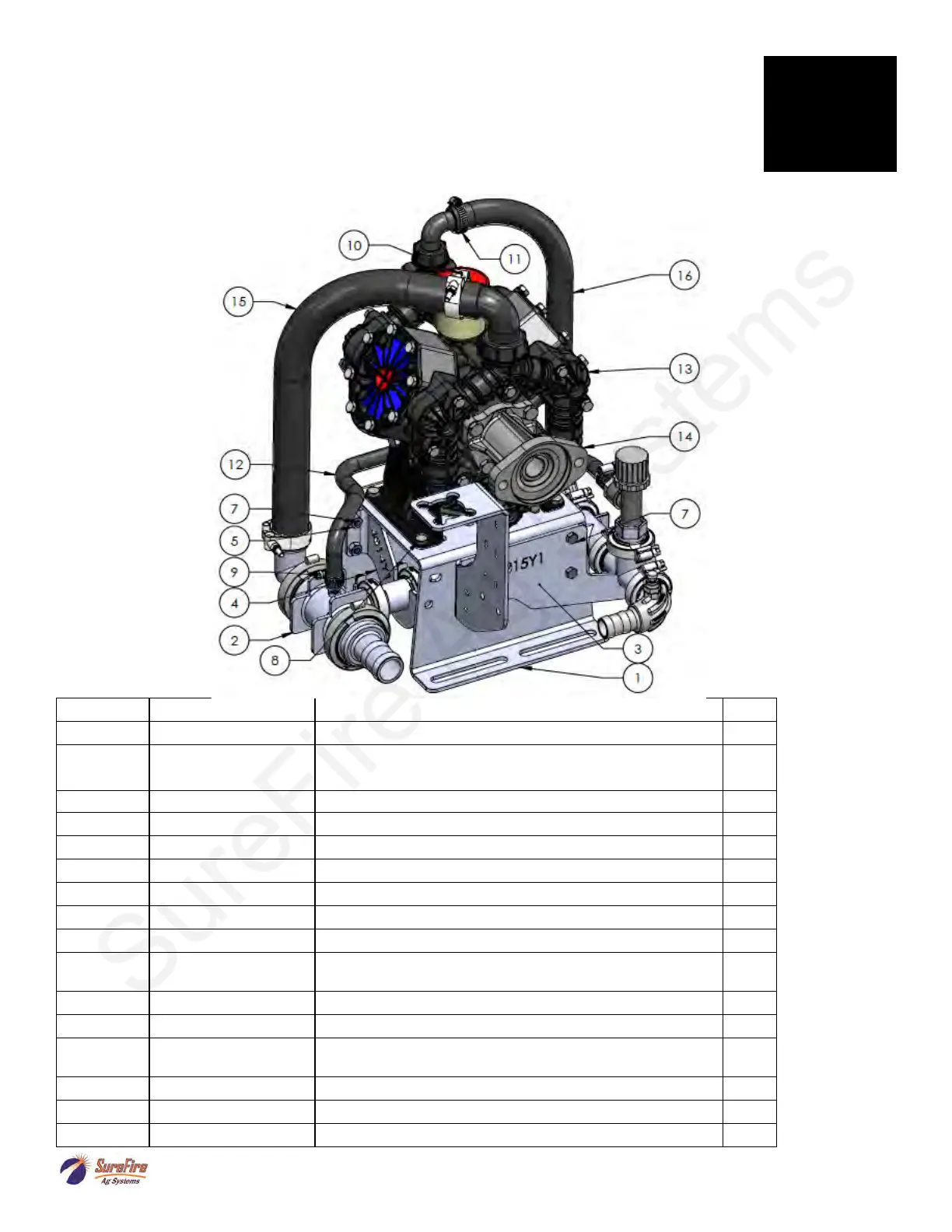

PR17 Pump Pre-Build Assembly
(Minus Flowmeter and Hydraulics)
Kit: 500-40-200017
See Page 64
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 400-1117A4 Diaphragm Pump Bracket 1
2 520-00-3013
Plumbing Assembly - PR17/30 Hydraulic Diaphragm
Pumps
1
3 410-4015Y1 PR17/30 - Flow Meter Support Bracket 1
4 410-4014Y1 PRV Support Bracket - PR17/30 1
5 323-05-SS 5/16" Flange Nut SS 6
6 323-06-SS 3/8" Flange Nut SS 4
7 300-050012-SS 5/16" x 3/4" HCS SS 6
8 300-060012-SS 3/8" x 3/4" HCS SS 4
9 350-0605 SS Hose Clamp - Size 6 - 7/8" Diameter 2
10 350-TC181
T-Bolt Hose Clamp - 1.81 - 2.06" Diameter (fits 1 1/2"
Enforcer or AG200)
2
11 350-1608 1" Hose Clamp 2
12 280-05-AG200-25L 1/2" AG200 - PR17/30 - 25" L 1
13 290-02-PR17
PR17 Poly BlueFlex Diaphragm Pump - 17 GPM -
290 PSI
1
14 291-02-AR55375 Flange Adapter Kit - PR17 1
15 280-150-ENF-25L 1-1/2" Enforcer Hose - PR17 1
16 280-100-AG200-25L 1" AG200 Hose - PR17 - 25 inches 1
See Page 66
