396-3815Y1 SureFire PumpRight for Raven RCM 69 Revised 12/04/2019
PR30 Assembly and Part Breakdowns
H
Maintenance
& Parts

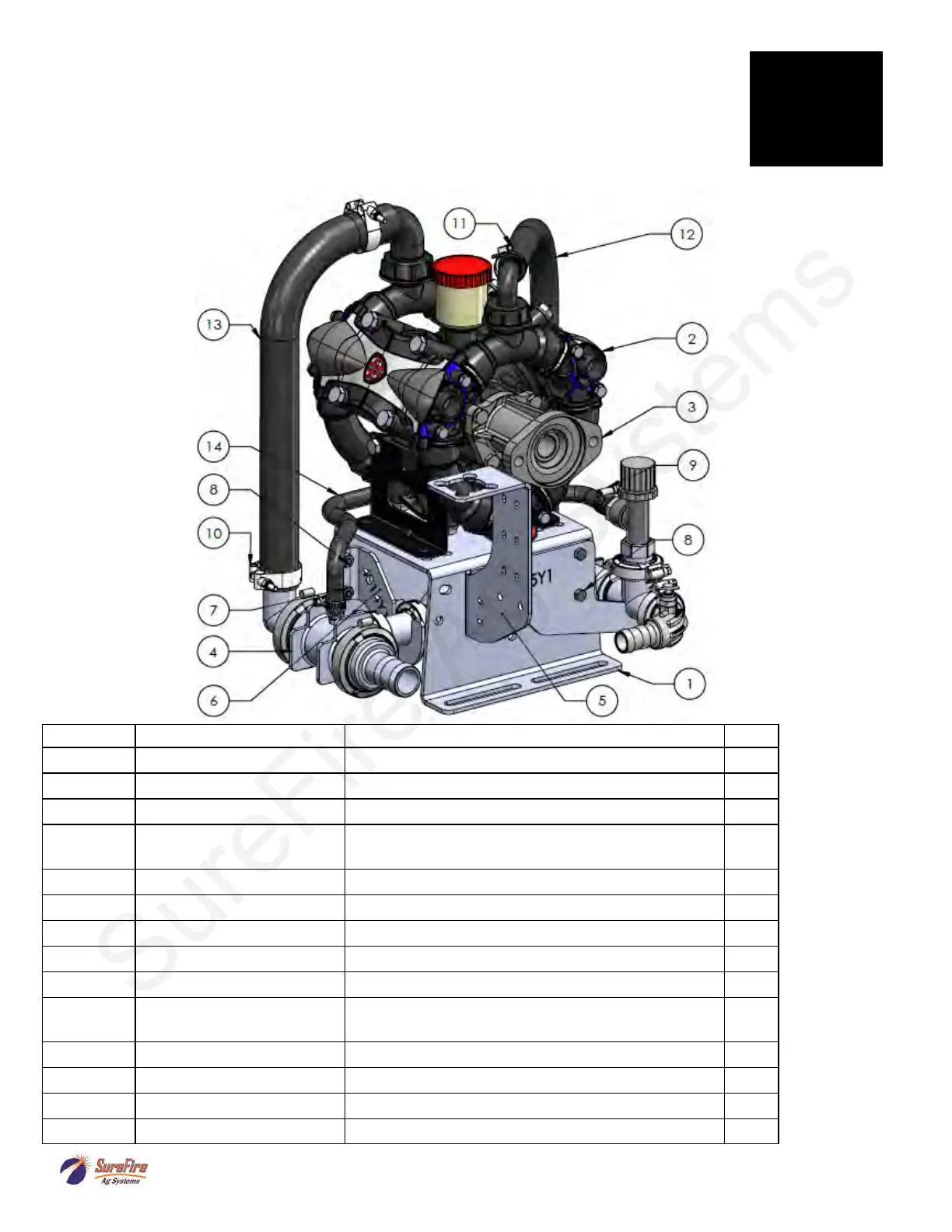

PR30 Pump Pre-Build Assembly
(Minus Flowmeter and Hydraulics)
Kit: 500-40-200030
See Page 72
See Page 70
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 400-1117A4 Diaphragm Pump Bracket 1
2 290-02-PR30 PR30 Poly BlueFlex Diaphragm Pump - 30GPM 1
3 291-02-AR55376 Flange Adapter Kit - PR30 1
4 520-00-3013
Plumbing Assembly - PR17/30 Hydraulic Dia-
phragm Pumps
1
5 410-4015Y1 PR17/30 - Flow Meter Support Bracket 1
6 410-4014Y1 PRV Support Bracket - PR17/30 1
7 323-05-SS 5/16" Flange Nut SS 6
8 300-050012-SS 5/16" x 3/4" HCS SS 6
9 350-0605 SS Hose Clamp - Size 6 - 7/8" Diameter 2
10 350-TC181
T-Bolt Hose Clamp - 1.81 - 2.06" Diameter (fits
1 1/2" Enforcer or AG200)
2
11 350-1608 1" Hose Clamp 2
12 280-100-AG200-25L-PR30 1" AG200 Hose - 25 inches 1
13 280-150-ENF-25L-PR30 1-1/2" Enforcer Hose - AR 140 1
14 280-05-AG200-25L 1/2" AG200 - PR17/30 - 25" L 1
To Next Page
