Surefire PumpRight PR17 - Page 76

396-3815Y1 SureFire PumpRight for Raven RCM 70 Revised 12/04/2019
PR30 Assembly and Part Breakdowns
H
Maintenance
& Parts

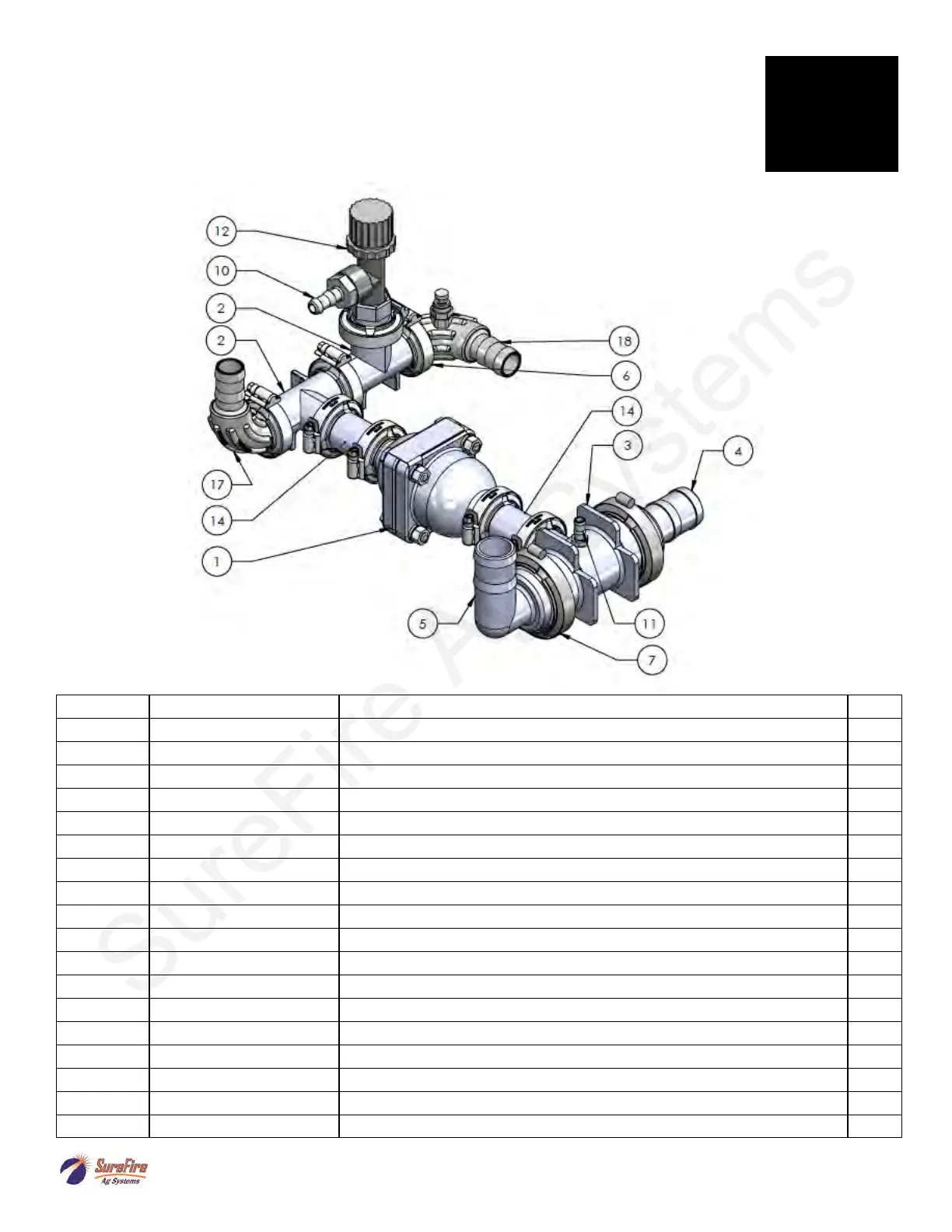

PR17 & PR30 Pump Plumbing Assembly
Kit: 520-00-3013
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 102-MPRV100-100 Pressure Relief Valve - 100 PSI 1
2 105-100TEE 1" Manifold Tee 2
3 105-200100TEE038 2"Std Port x 1" Flanged Tee 1
4 105-200150BRB 2" Manifold X 1-1/2" Barb 1
5 105-200150BRB90 2" Manifold Flng 1-1/2 Barb 90 1
6 105-FC100 1" Manifold Clamp 8
7 105-FC200 2" Manifold Clamp 2
8 113-05-025 Plug - 1/4" QC 1
9 113-06-025025 QC to MPT - 1/4" QC x 1/4" MPT 1
10 101-075050 3/4" MPT x 1/2" HB 1
11 101-038050 3/8" MPT x 1/2" HB 1
12 102-23520-3-4 3/4" Throttling Valve with out spring - 150 PSI 1
13 105-100075FPT 1" Manifold x 3/4" FPT 1
14 105-100CPG 1" MANIFOLD COUPLING 2
15 105-100G 1" EPDM Manifold Gasket 8
16 105-150G 1 1/2" EPDM Gasket 2
17 105-100BRBSWP90 1" Flange X 90° Sweep Hose Barb 1
18 105-100BRBSWPG90 1" Manifold x 1" Hose Barb - 1/4" Gauge Port - 90 Degree Sweep 1
