396-3815Y1 SureFire PumpRight for Raven RCM 2 Revised 12/04/2019

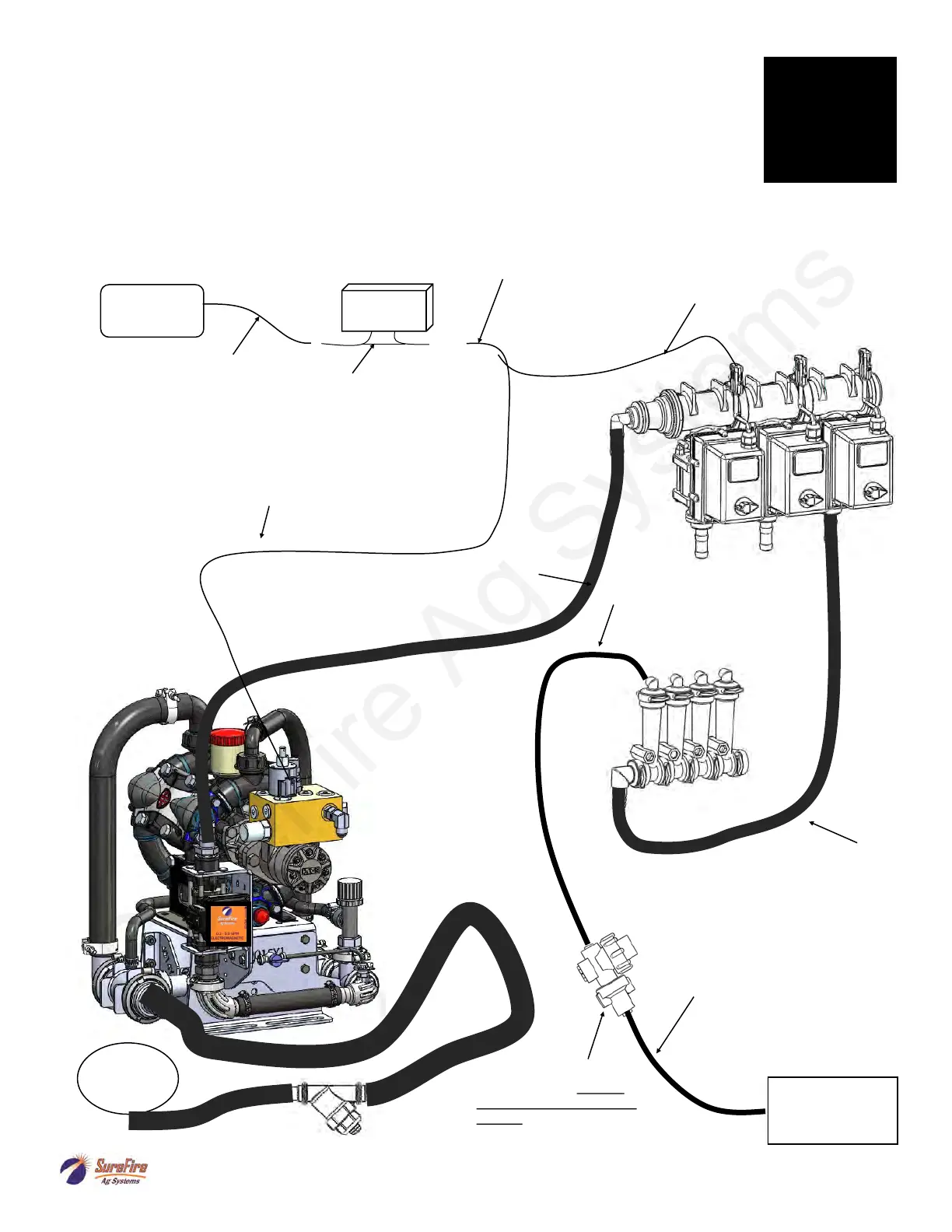

System Overview Example
The following gives an example of a complete SureFire Fertilizer system with these
components:
• In-cab Display
• Raven RCM
• PumpRight PR17
• Section Valves
• Flow Indicators
• Check Valves with Colored Disc Orifices
A
Introduction
Raven
RCM
Display in cab
Harnesses
from display to
RCM (various)
Fertilizer Opener,
Seed Firmer, SS
Tube, etc.
Typically 3/4” hose used to
feed each manifold. Length
of this hose can vary
significantly.
This is usually 3/8” hose. Typi-
cal length is 1-4’ with check
valves placed on each row that
distance from ground.
This is usually 3/8” hose. Maxi-
mum recommended length is 20
feet and lengths do not need to
be equal.
Check valve is mounted
near each row. 1/4 turn
cap is always check valve
outlet. Colored disc orifice
can be placed under cap.
TANK
Hose is used from the flowmeter outlet to section
valves. If not using section valves, flowmeter is
plumbed directly to flow indicators or a simple tee
is used to divide flow to multiple flow indicator
manifolds.
Strainer
PWM Pump Harness
(connector detail in Section D)
Section Valve Harness
(connector detail in Section D)
SureFire adapter harness for 1
or more products and section
valves
To Next Page
