396-3815Y1 SureFire PumpRight for Raven RCM 3 Revised 12/04/2019
System Overview Example
A
Introduction
Raven
RCM
Display in cab
Harnesses
from display to
RCM (various)
Fertilizer Opener,
Seed Firmer, SS
Tube, etc.
The dual
color
LiquiShift
tubes run
from this
point and
end just
under
each
isolated
feed flow
indicator
column.
This is usually 3/8” hose. Typi-
cal length is 1-4’ with check
valves placed on each row that
distance from ground.
This is usual-
ly 3/8” hose.
Maximum
recommend-
ed length is
20 feet and
lengths do
not need to
be equal.
Check valve is
mounted near each
row. 1/4 turn cap is al-
ways check valve outlet.
Hose is used from the flow-
meter outlet to LiquiShift
valve stack inlet
PWM Pump Harness
(connector detail in Section D)
14-pin extension har-
ness to reach LiquiShift
mounting location

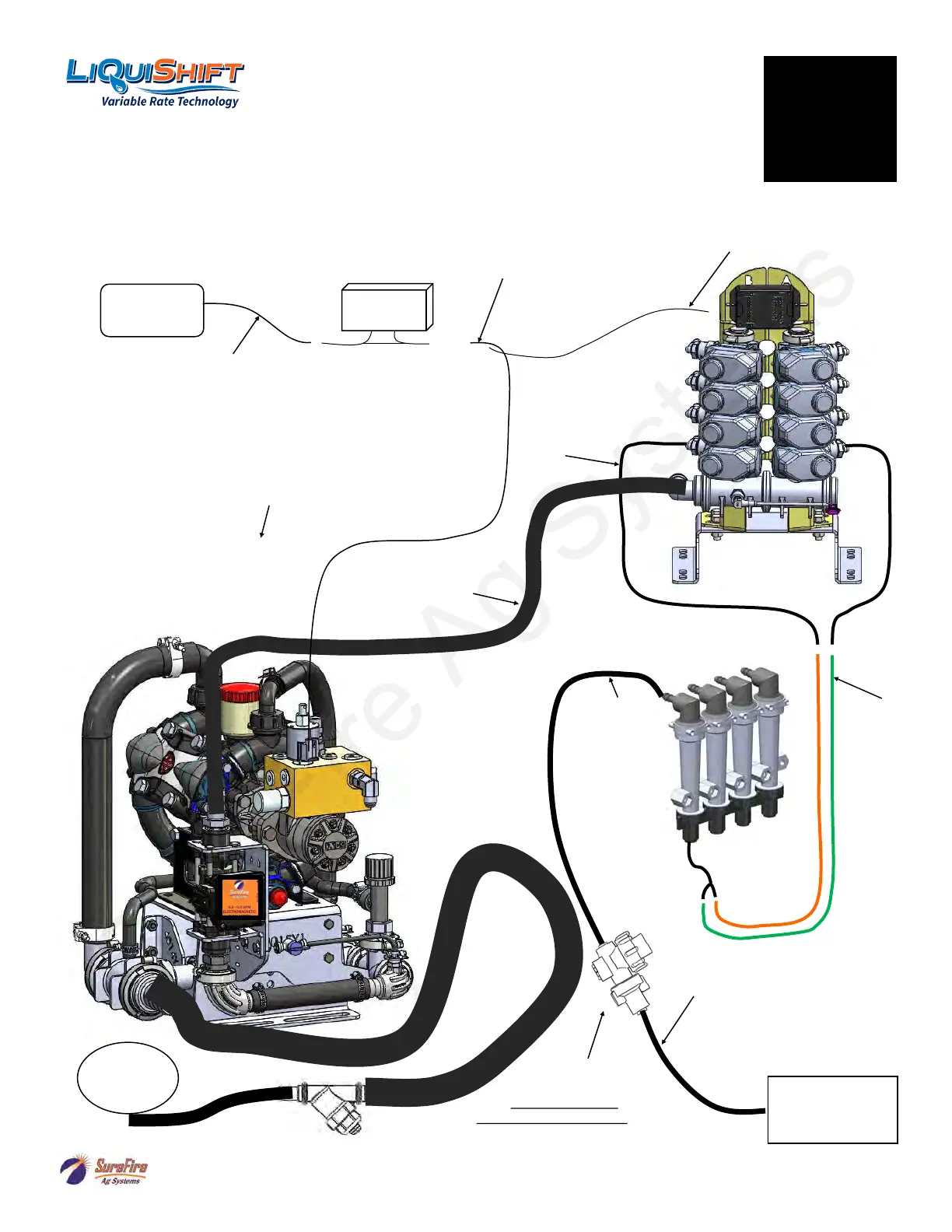

The following gives an example of a complete SureFire Fertilizer system with Li-
quiShift and these components:
• In-cab Display
• Raven RCM
• PumpRight PR17
• LiquiShift Valve Stack
• Isolated Feed Flow Indicators
• Check Valves
SureFire adapter harness for 1
or more products and section
valves
1/2” hose typical from
each LiquiShift valve
to each LiquiShift
tube assembly.
TANK
Strainer
