INSTALLATION
STEP 2 LOCATE RIGHT
TOOLS REQUIRED:
1. Pencil
PARTS REQUIRED:
B. Rear strut/actuator assembly

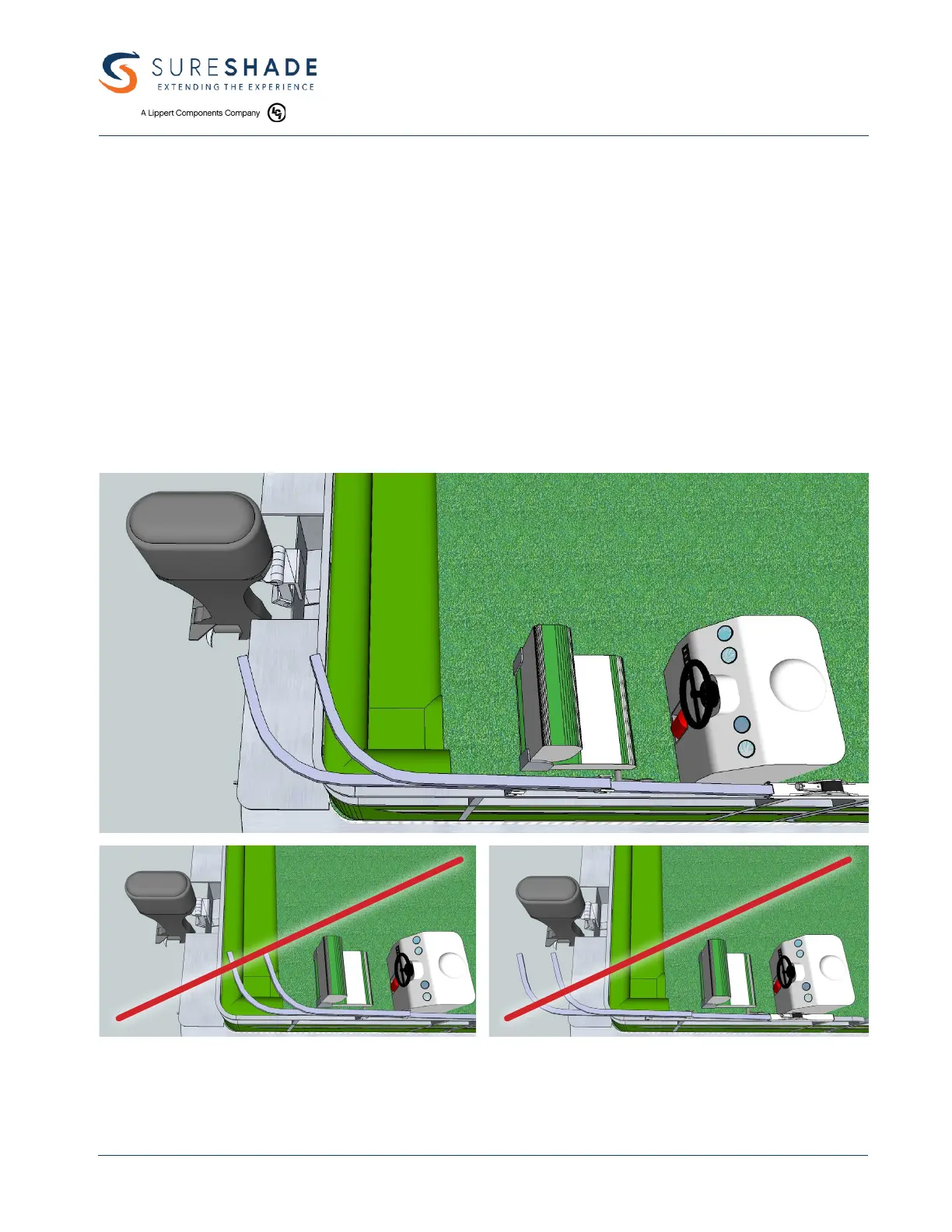

Locate the rst rear strut/actuator assembly on to the boat. Proper position is generally determined by locating
the assembly so that when the top is down, the struts are just behind the rear seats. Too far forward and the top
will interfere with rear seating; while too far aft will provide less shade to the front of the boat. When properly
positioned, use a pencil and trace a line across the front of the actuator.
Too far forward of rear seats Too far behind rear seats
