INSTALLATION
STEP 11 FINAL ASSEMBLY
TOOLS REQUIRED:
1. Cordless or electric drill or screw gun
2. Phillips drill bit
PARTS REQUIRED:
A. #10 x 3/4" self-drilling Phillips screw

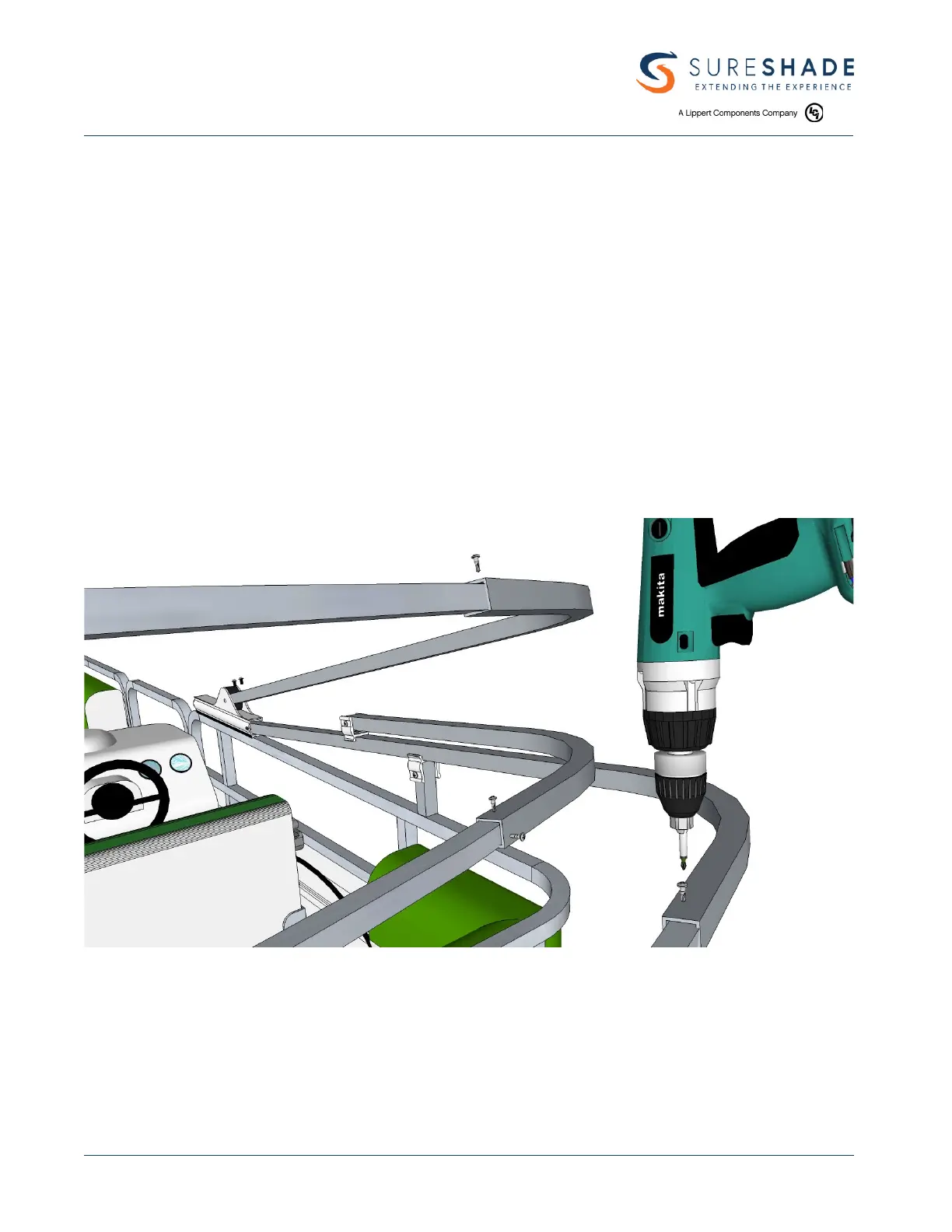

Use a cordless or electric drill or screw gun and the #10 self-drilling Phillips screws (A) to fasten all struts and bows
together.
Note that the middle strut assembly gets two screws as shown. Repeat this process for both sides.
Complete the installation by attaching the canvas to the completed framework. The canvas end
with the notch goes on to the rear strut.
