MAINTENANCE
MANUAL OVERRIDE
TOOLS REQUIRED:
1. 1-2 people, depending on task.
2. 5/32" hex wrench
3. Zip ties, hook-and-loop strips or rope
PARTS REQUIRED:
A. None
If the power bimini top will not close (retract) a manual override of the power bimini top must be done before
putting the pontoon underway.
Unzip the front pocket of the bimini canvas. Have a second person push forward on the rear frame to relieve
some pressure o the canvas and hold up the rear and middle frames when the canvas is unzipped. Lower the
rear frame and canvas fully down. Use a 5/32" hex wrench to remove the two 1/4" hex cap screws located at the
bottom of the front frame on both sides. Lift the front frame o of the gear handles and place the front frame on
top of the rear frame.
Zip the front canvas pockets over the loose front frame to help hold it in-place. Secure the remainder of the front
frame in-place with zip ties, hook-and-loop strips or with some other type of cordage.

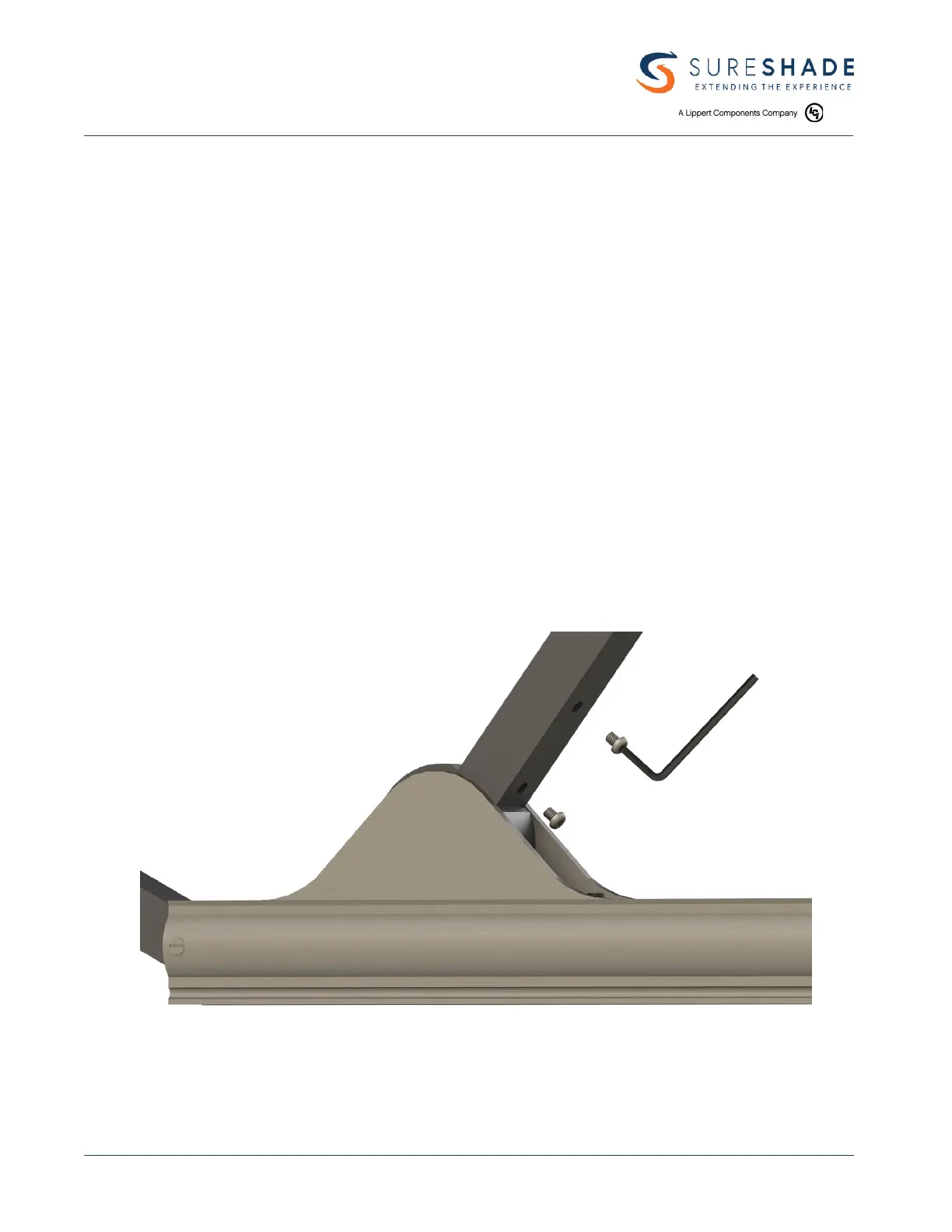

5/32" Hex Wrench
1/4" Hex Cap Screws
Front Frame
